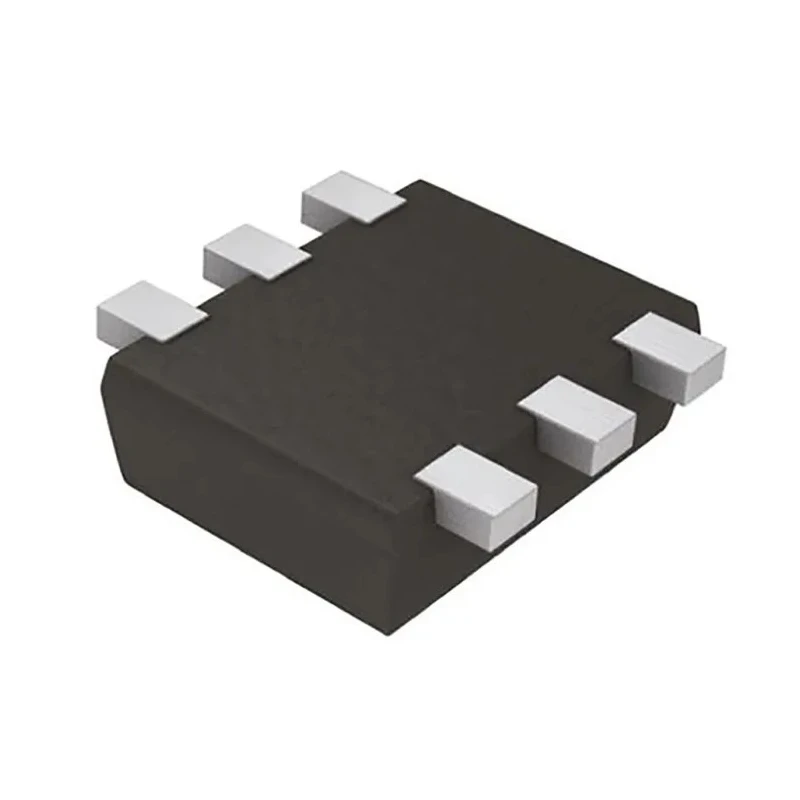

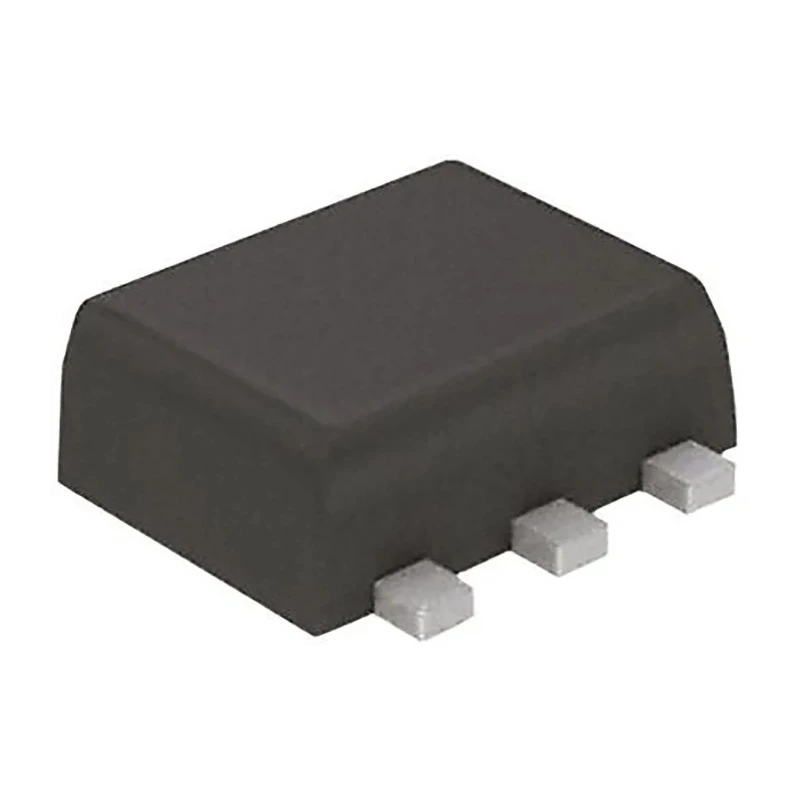

ROHM 2-Element Bi-Directional Low Capacitance TVS Protection Device, 0.15 W, 6-Pin SC-75A RSB12JS2T2R

ROHM RSB12JS2T2R is a highly reliable, 2-element bi-directional transient voltage suppression (TVS) diode designed for protecting sensitive electronics from electrostatic discharge (ESD) events and other transient voltage threats. Featuring a dedicated low capacitance design, the device safeguards high-speed data lines without compromising signal integrity, making it ideal for applications requiring both robust protection and minimal interference.

This protection device supports a peak pulse power dissipation of 0.15 watts, ensuring stable performance during surge events. It operates with a minimum breakdown voltage of 9.6 V and a maximum reverse stand-off voltage of 9 V, providing flexibility for protecting a wide range of circuit configurations. The isolated diode configuration further enhances protection and reliability in electronic designs.

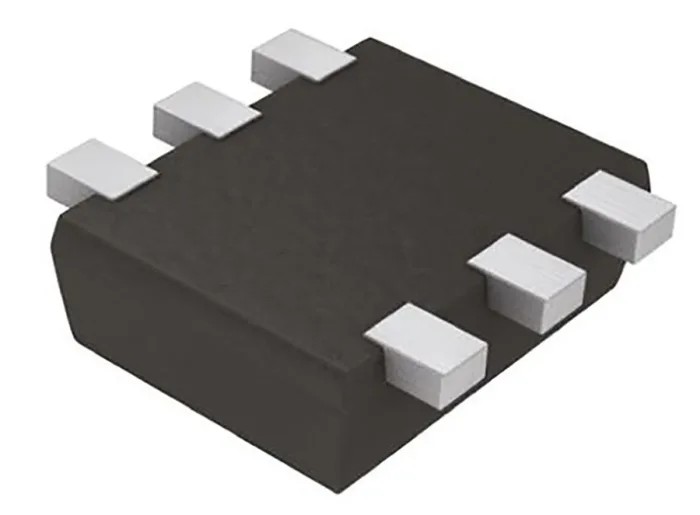

The device is supplied in a compact surface mount SC-75A package with six pins, facilitating easy integration into densely packed PCB layouts. With a minimal footprint and profile - height of 0.5 mm, length of 1.6 mm, and width of 1.2 mm - the component is well suited to modern compact electronics, including mobile equipment, communication devices, and industrial control systems.

ROHM RSB12JS2T2R provides reliable ESD protection and supports a wide operational temperature range, withstanding environments from -55°C to 150°C, ensuring stability in both consumer and industrial applications. It achieves a low maximum reverse leakage current of 100 nA, minimizing power loss and contributing to energy-efficient designs.

The device is RoHS-compliant, aligning with current environmental safety requirements. Its low capacitance allows for use in high-frequency signal paths without risk of signal degradation, making it a strong choice for protecting USB, HDMI, and other sensitive interface lines.

Typical sectors include industrial automation, automotive electronics (without automotive qualification for this model), consumer electronics, communication devices, and more. The combination of bi-directional protection and isolated configuration makes this TVS diode an important element in maintaining functional reliability and signal integrity, especially where dual-element chip-based protection is required.
