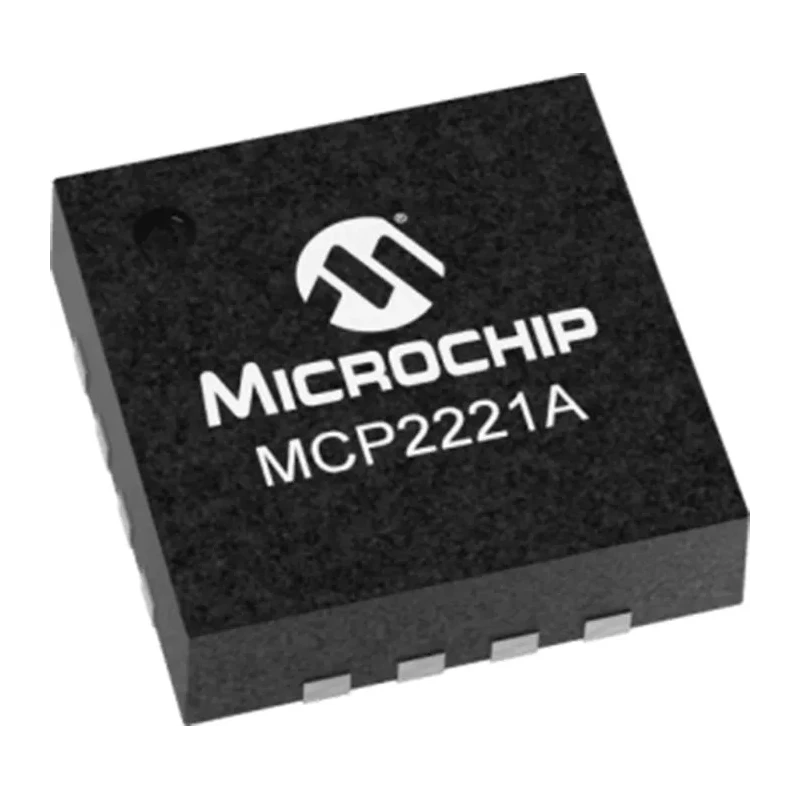

Microchip USB Controller 1-Channel 12 Mbps, 3 V to 5.5 V, I2C UART Interface, 16-Pin QFN MCP2221A-I/ML

Free Delivery in India | Lowest Global Shipping Charges

Microchip USB Controller 1-Channel 12 Mbps, 3 V to 5.5 V, I2C UART Interface, 16-Pin QFN MCP2221A-I/ML

Name: Microchip USB Controller 1-Channel 12 Mbps, 3 V to 5.5 V, I2C UART Interface, 16-Pin QFN MCP2221A-I/ML
Brand: Microchip
SKU: 153346
Price: 3.46 USD
Availability: InStock



Category USB Interface IC Brand Microchip Condition New

Specifications

Country of Origin	United States
Brand	Microchip
Height	950μm
Length	4mm
Model	MCP2221A-I/ML
Mount Type	Surface
Series	MCP2221A
Maximum Operating Temperature	85°C
Package Type	QFN
Sub Type	Controller
Minimum Operating Temperature	-40°C
Interfaces	USB)
Pin Count	16
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	3V
Supply Current	25mA
Maximum Data Rate	12Mbps
Number of Transceivers	1
USB Specification	USB 2.0
Supported Protocols	I2C, UART
Implements USB protocol composite device	Communication Device Class (CDC) for

Key Features

Full-speed USB 2.0 compliant supporting 12 Mbps data rate.
Integrates USB termination resistors and oscillator to reduce external components.
Supports UART and I2C protocols with a 128-byte buffer.
Features four multifunction general-purpose pins including GPIO, ADC, and DAC.
Operates from 3 V to 5.5 V with supply current of 25 mA.
Suitable for -40°C to 85°C operating temperature range.
Meets AEC-Q100 automotive standard for high reliability.
Packaged in a compact 16-pin QFN with 4 mm length and 950µm height.

Product Description

Microchip MCP2221A-I/ML is a USB-to-UART/I2C serial converter designed to provide USB connectivity for devices with UART and I2C interfaces. This USB 2.0 full-speed controller supports data rates up to 12 Mbps and operates from a supply voltage ranging between 3 V and 5.5 V. Packaged in a compact 16-pin QFN form factor, it integrates essential USB components like termination resistors and an oscillator which minimizes the need for external parts.

The MCP2221A series features a 128-byte FIFO buffer split equally between transmit and receive buffers, facilitating seamless communication at any UART or I2C baud rate. Additionally, it includes four versatile general-purpose pins configurable for GPIO, USB functions (USBCFG, SSPND), clock output, ADC, DAC, and interrupt detection.

This device is suitable for industrial, automotive, and embedded applications requiring reliable USB communication. It complies with the AEC-Q100 automotive standard and incorporates ESD protection. The compact QFN package measures 4 mm in length and 950 µm in height, making it suitable for space-constrained designs.

Supports USB 2.0 full-speed communication at 12 Mbps. Reduces external components by integrating USB termination resistors and internal oscillator. Implements USB protocol composite device features including CDC and HID for flexible communications.

Includes four multifunction general-purpose pins offering GPIO, ADC, DAC, and interrupt capabilities. Operates across a wide temperature range from -40°C to +85°C ensuring robust performance. Designed with 25 mA supply current and meets automotive standard AEC-Q100.

Flexible power options: bus-powered or self-powered configurations. Ideal for applications in industrial machines, embedded systems, and automotive environments.

Choose the Microchip MCP2221A-I/ML to integrate a reliable USB controller in your projects with I2C and UART compatibility, excellent data throughput, and a compact footprint. Browse the Electronics & Electricals category on EnvMart for additional USB Interface IC solutions and accessories.
