EPIC EPIC C O N T O O L Crimp Tool Frame Adjustable Ratchet Germany Origin 11147000

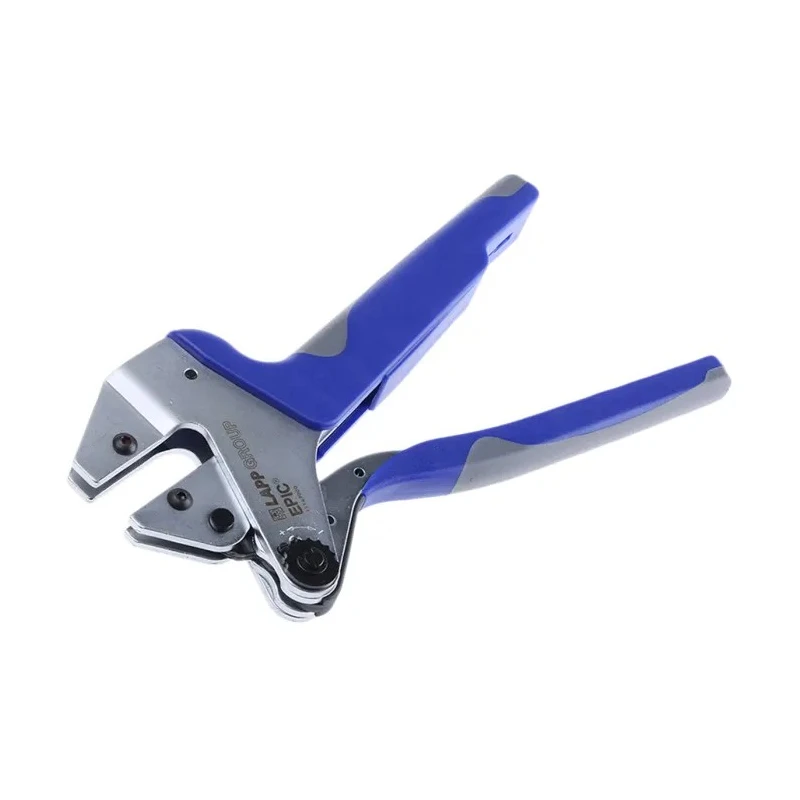

EPIC 11147000 Crimp Tool Frame is an adjustable ratchet crimping tool frame manufactured in Germany, part of the EPIC C O N T O O L series designed for professional and industrial use in cable, connector, and crimping tool applications.

This tool frame specializes in crimp termination for H-D plug and socket inserts, enabling precise connection of formed contacts using quality 8-point indent crimping. It supports both stamped and formed contacts with available tooling for H-D and H-DD connectors.

The high-density contact loading feature allows for more power and control connections in smaller shell sizes, ideal for applications requiring compact and reliable electrical interconnections.

Machined contacts ensure dependable service and easy maintenance, with these contacts available for separate order. The coupled connectors offer an IP65 protection rating, making them suitable for demanding industrial environments where dust and water protection is essential.

Plug and socket inserts are designed to be interchangeable, and a separate earth connection through all inserts connects the earth to metal body shells, enhancing safety and functionality.

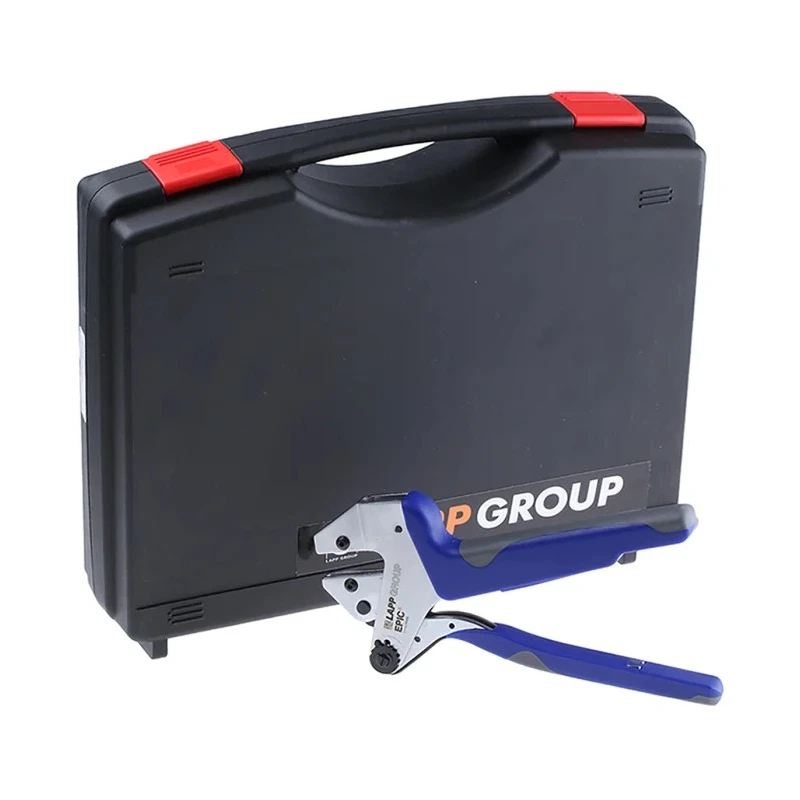

The crimp tool 11147000 is supplied in a robust tool case; however, crimping dies and locators are not included and must be ordered separately to suit specific application requirements.

The product conforms to important industry standards including VDE 0110//72, 0110b, 79, and VDE 0627//86, and carries approvals from SEV, UL, and CSA, ensuring compliance and quality assurance for its industrial use cases.

Users are advised not to couple or decouple connectors under electrical load, and coding options are available to prevent incorrect mating when connectors of the same or different series are mounted side by side.

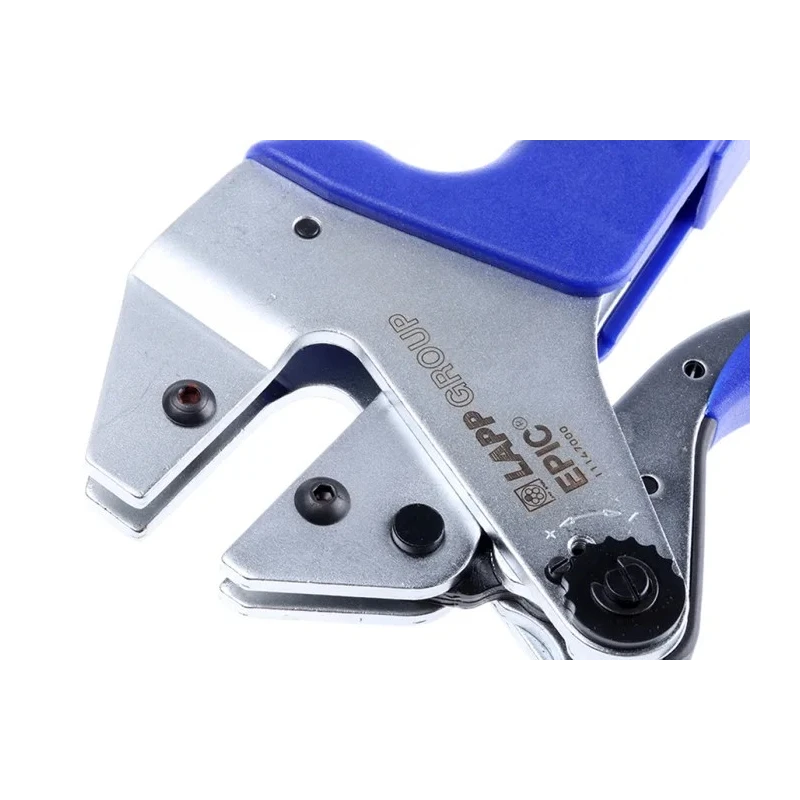

Features an adjustable ratchet mechanism for consistent and accurate crimps. Compatible with multiple contact and tooling types for versatile applications. High-density contacts allow a smaller footprint with maximum connectivity.

Robust design supports industrial environments with protection to IP65 standard. Ergonomic tool frame supplied with a protective case for convenient storage. Machined and formed contacts available separately for customization.

Conforms to German VDE standards and international safety approvals.

Ideal for electrical, industrial, manufacturing, and construction sectors, this Crimp Tool Frame provides precision, reliability, and versatility for complex cable and connector assemblies.
