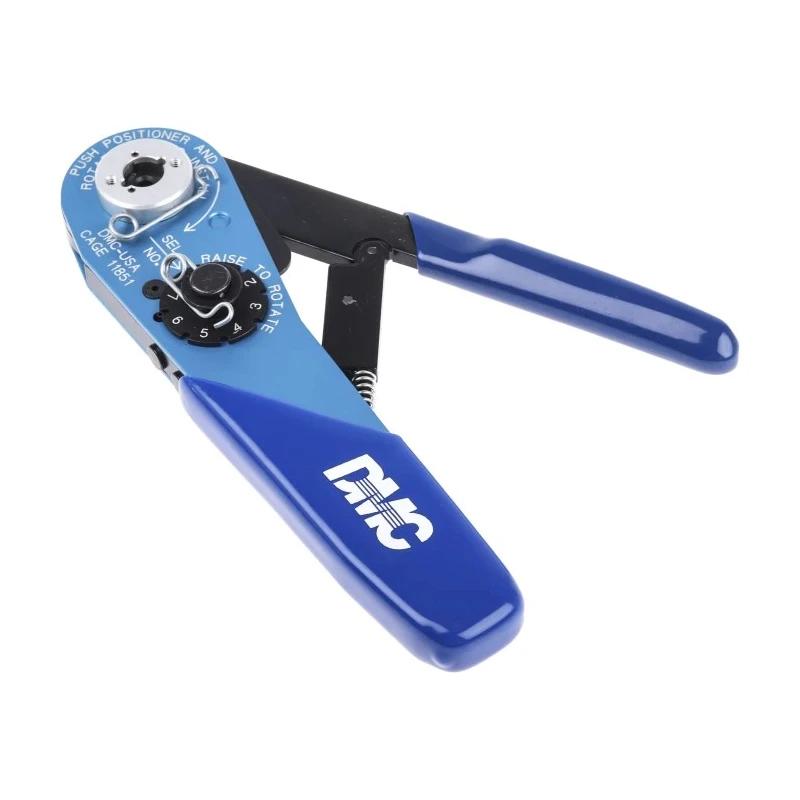

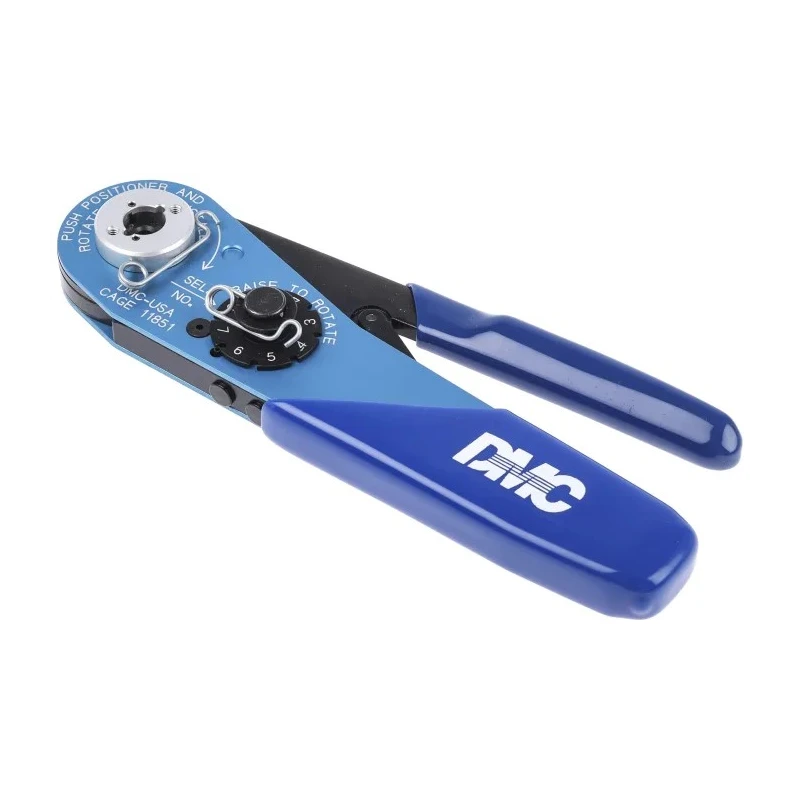

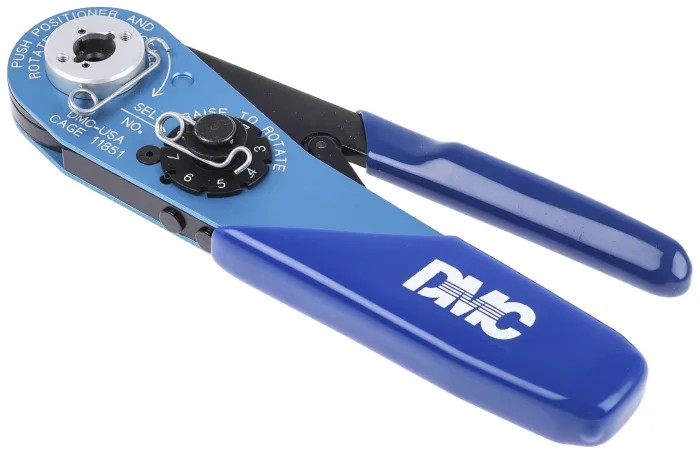

HARWIN Crimp Tool Frame for Datamate Connector Contacts with Adjustable Ratchet M22520/2-01
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Model | M22520/2-01 |
| Sub Type | Crimp Tool |
| For Use With | Datamate Connector Contacts |
| • Datemate L-Tek Series | male and female signal crimp contacts |
| • Datemate J-Tek Series | female signal crimp contacts |
Key Features
- Produces crimps according to MIL-DTL-22520/2-01 standards.
- Supports a wide wire size range of 20-32 AWG.

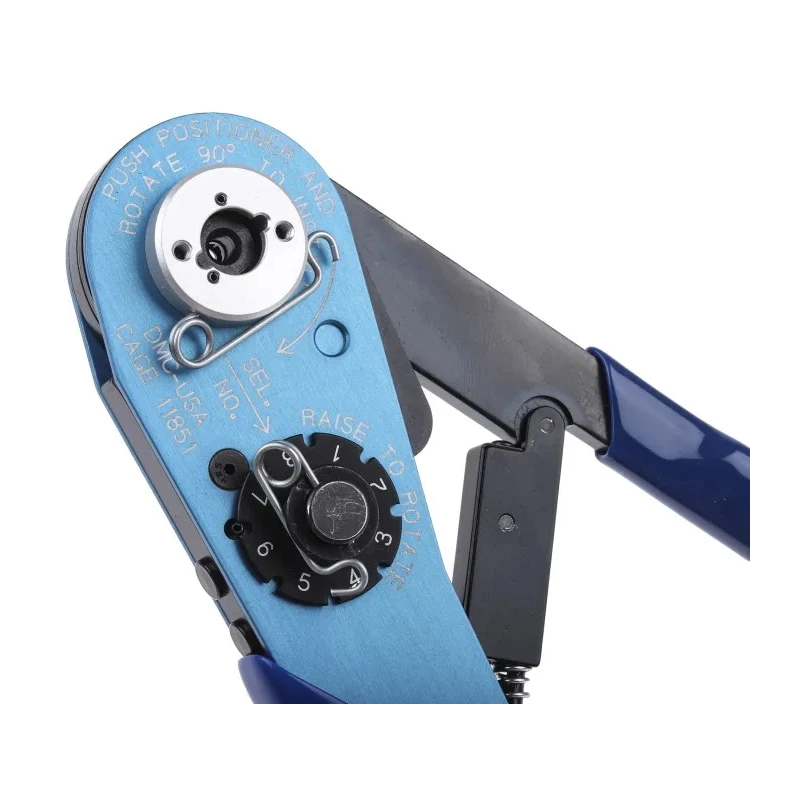

- Features an 8-step selector knob for selecting crimp depth.
- Precision ratchet mechanism ensures a full crimp cycle for quality crimps.
- Requires minimal maintenance even under frequent use.
- Compatible with Datamate L-Tek, J-Tek, and Mix-Tek series connector contacts.
- Positioner guide locks firmly for accurate positioning during crimping.
Product Description
HARWIN M22520/2-01 Crimp Tool Frame is a precision hand tool designed specifically for crimping Datamate Connector Contacts used in demanding electronic and electrical assemblies. Equipped with an adjustable ratchet and an 8-indent selector knob, this tool ensures high quality crimps conforming to MIL-DTL-22520/2-01 specifications, preventing partial or inconsistent crimps with a cycle-controlled precision ratchet mechanism.
This crimp tool supports a wide wire size range of 20 to 32 AWG, accommodating male and female signal and coaxial inner contacts from the Datamate L-Tek, J-Tek, and Mix-Tek series. The positioner guide firmly locks the positioner in place to enhance accuracy and repeatability of every crimp.
Ideal for electrical installations, maintenance, repair, and cable assembly applications, this tool provides reliable performance in industrial, manufacturing, and laboratory settings. Regular lubrication every 10,000 cycles is recommended to maintain optimal performance when used under contaminant exposure.
Produces crimps meeting MIL-DTL-22520/2-01 standards. Wide wire size compatibility from 20 to 32 AWG. 8-step crimp depth selector knob for precision adjustments. Precision ratchet mechanism ensures full crimp cycle consistency.
Minimal maintenance and high durability. Compatible with multiple Datamate series connector contacts.
The tool frame does not include the positioner, which must be purchased separately (RS stock no: 909-4489). It is essential for applications requiring high reliability, safety, and resistance to vibration and harsh environments, ensuring gas-tight crimps that prevent corrosion and electrical faults.
Browse EnvMart's comprehensive Hand Tools category to find more specialized crimping and connector tools for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp tool supports a wide wire size range of 20 to 32 AWG.
It is compatible with Datamate L-Tek, J-Tek, and Mix-Tek series connector contacts.
The tool produces crimps according to MIL-DTL-22520/2-01 standards.
It features an 8-step selector knob for selecting crimp depth, allowing for precision adjustments.
Regular lubrication every 10,000 cycles is recommended to maintain optimal performance, especially under contaminant exposure.
The precision ratchet mechanism ensures a full crimp cycle, preventing partial or inconsistent crimps.
The crimp tool is manufactured in India.
The tool frame does not include the positioner, which must be purchased separately.
It is ideal for electrical installations, maintenance, repair, and cable assembly applications.
This model can crimp male and female signal and coaxial inner contacts from the compatible Datamate series.
It is designed for frequent use in industrial, manufacturing, and laboratory settings.
The model number of this crimp tool is M22520/2-01.
