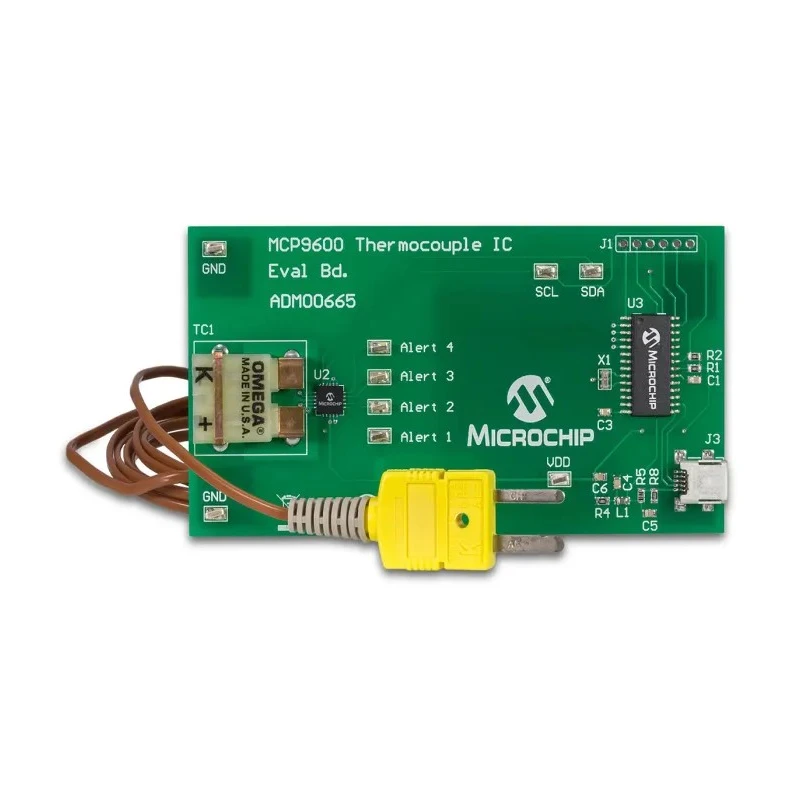

Microchip Thermocouple EMF to Celsius Converter Temperature Sensor Evaluation Board ADM00665

Microchip ADM00665 Thermocouple EMF to Celsius Converter Temperature Sensor Evaluation Board is designed to digitize thermocouple voltage signals into precise temperature readings with high reliability. It integrates the MCP9600 digital converter that incorporates cold-junction compensation to ensure accuracy throughout the measurement range.

The board supports thermocouples of types K, J, T, N, S, E, B, and R, allowing versatile testing for various temperature measurement applications in industrial, laboratory, HVAC, manufacturing, and scientific environments. Users can employ Microchip's Thermal Management Software via USB interface to explore device programmability and configure features such as digital filtering and alert outputs.

This evaluation platform provides measurement resolution of 0.0625°C typical for both hot and cold junctions, and maintains a maximum hot-junction error of ±1.5°C for accurate sensing. The board includes four programmable temperature alert outputs that can be set to trigger alarms or system responses.

Low power consumption modes offer energy-saving capabilities critical for battery-operated or resource-limited development settings. The kit includes 1 MCP9600 evaluation board, 1 USB mini cable, and 1 Type K thermocouple sensor fitted to the onboard socket. The socket is interchangeable to accommodate other thermocouple types by replacing it appropriately.

These features make the board suitable for use in electronic development, sensor calibration, thermal system design, and temperature monitoring projects requiring precise thermocouple signal digitization. The unit complies with RoHS standards ensuring environmental and user safety.

This evaluation board converts thermocouple EMF into degrees Celsius accurately. Supports a wide range of thermocouple types, enabling versatile application testing. Measurement accuracy and high resolution support precise temperature control.

Programmable alert outputs and low-power modes augment operational flexibility. USB interface with supporting software simplifies device configuration and data analysis. Supplied complete with evaluation board, USB cable, and type K thermocouple sensor.
