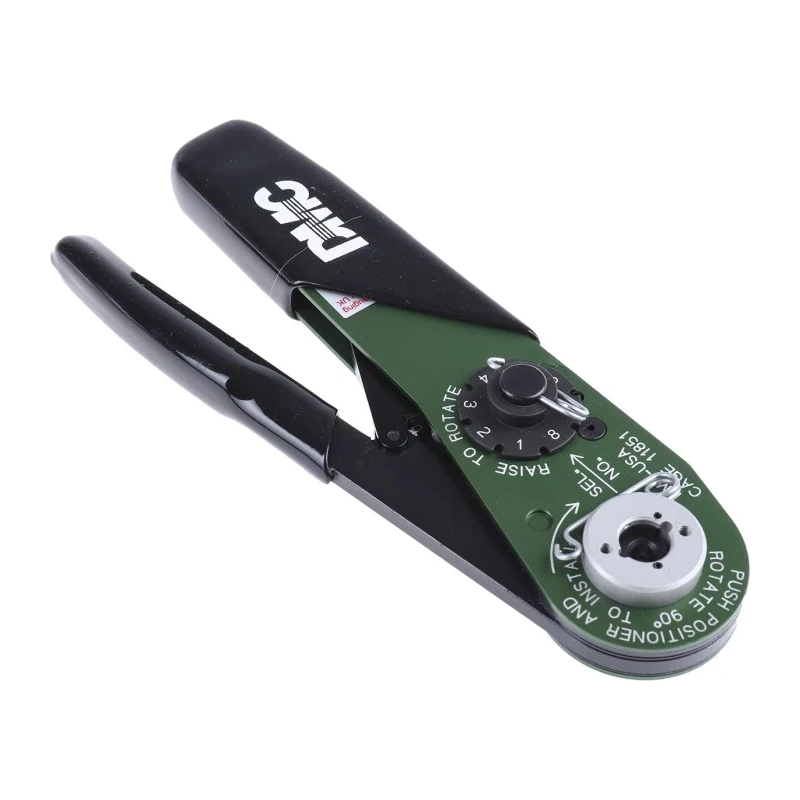

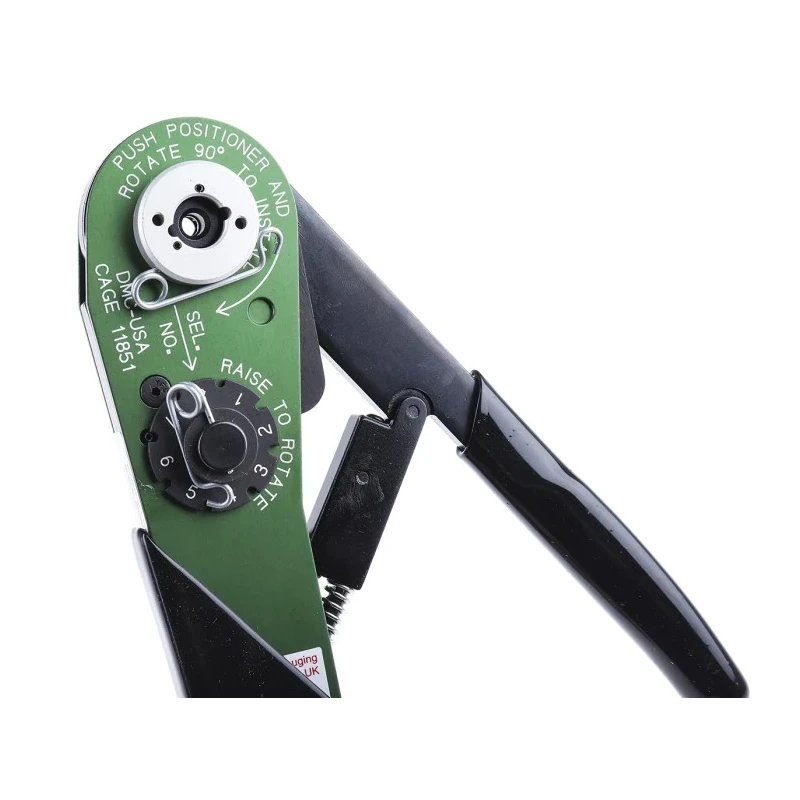

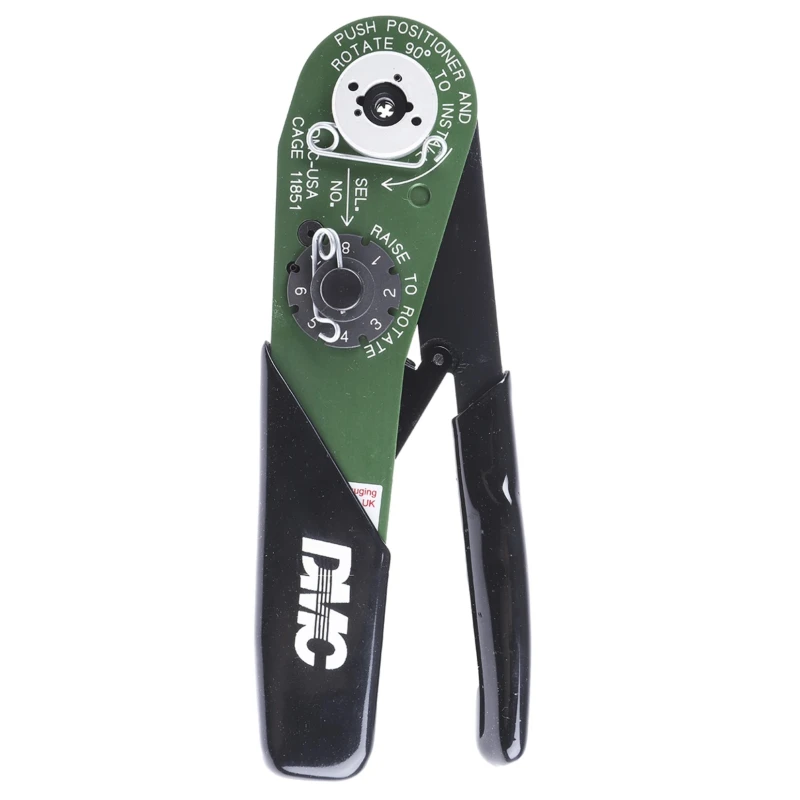

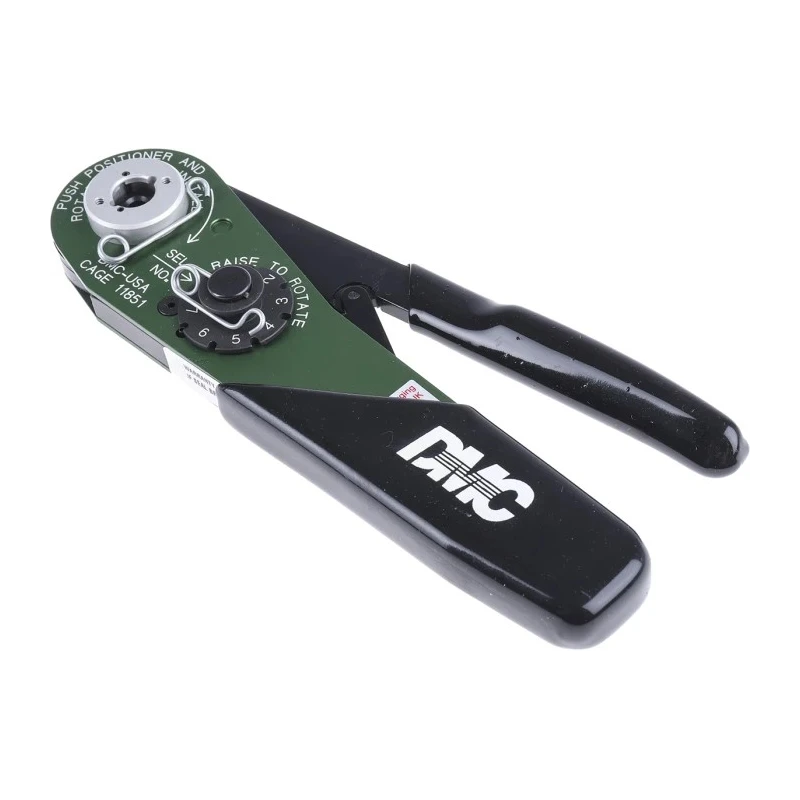

Daniels Manufacturing Crimp Tool Frame with 8-Step Selector for Crimp Contact, 190.5mm Length MH860
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Daniels Manufacturing |
| Model | MH860 |
| Overall Length | 190.5mm |
| Series | M22520/7-01 |
| Sub Type | Crimping Tool Frame |
| Wire size | 16mm2 to 22 mm2 / 16-28 AWG |
| For Use With | Crimp Contact |
| Daniels Manufacturing COM8 Crimp Tool Frame Crimp Tool for Crimp ContactBrand | Daniels Manufacturing |
| Souriau Crimping ToolBrand | Souriau |
Key Features
- The tool features an 8-step selector knob enabling precise crimp depth adjustment.
- A dual ratchet mechanism ensures completion of the full crimp cycle for accurate crimps.
- Suitable for wire sizes ranging from 16 mm² to 22 mm² (16-28 AWG).
- The tool measures 190.5 mm overall length, making it lightweight and easy to handle.
- Minimal maintenance is required to keep the indenter tips clean and debris-free.
- Qualified to MIL-DTL-22520/7 and AS22520/7 standards for military and aerospace quality.
- The positioner guide securely locks the positioner in place for repeatable crimps.
- Positioners are sold separately and are not included with the frame.
Product Description
Daniels Manufacturing MH860 Crimp Tool Frame is a professional quality hand tool designed for reliable crimping of circular connector contacts, including male and female types. This crimping tool frame incorporates a cycle-controlled precision ratchet mechanism that prevents premature opening, ensuring every crimp is fully completed for consistent, high-quality results.
The tool includes an 8-step selector knob allowing precise adjustment of crimp depth, supporting wire sizes from 16 mm² to 22 mm² (16-28 AWG). With an overall length of 190.5 mm, it offers a lightweight and ergonomic design to facilitate ease of use during prolonged operations.
The crimping frame is qualified to MIL-DTL-22520/7 and AS22520/7 standards, making it suitable for demanding industrial, military, aerospace, and electrical applications. Regular maintenance is minimal, primarily requiring that indenter tips remain free of debris and dirt to maintain optimal crimping integrity.
A positioner guide is integrated for firm locking of positioners; however, positioners must be purchased separately. This tool is widely used in maintenance and repair fields, electrical installations, and cable assemblies, providing precise and gas-tight crimps that prevent corrosion and ensure electrical connection longevity.
The 8-step selector knob provides precise control of crimp depth for various wire sizes. The dual ratchet mechanism guarantees completion of the crimping cycle for consistent quality. Supports wire sizes from 16 mm² to 22 mm² (16-28 AWG) ensuring versatility.
Lightweight and ergonomic with an overall length of 190.5 mm. Minimal maintenance required; keep indenter tips clean for optimal performance. Complies with MIL-DTL-22520/7 and AS22520/7 standards for high reliability. Positioner guide ensures secure positioner alignment; positioners sold separately.
Ideal for electrical, maintenance, repair, and cable assembly applications. Explore our extensive range of crimp tools and frames at EnvMart for high-quality, precision industrial hand tools designed to meet rigorous standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The overall length of the MH860 crimp tool frame is 190.5 mm.
It can accommodate wire sizes ranging from 16 mm² to 22 mm² (16-28 AWG).
The 8-step selector knob allows for precise adjustment of crimp depth, enabling accurate crimping for different wire sizes.
It features a dual ratchet mechanism that ensures the completion of the full crimp cycle for consistent, high-quality results.
Minimal maintenance is required, primarily to keep the indenter tips clean and free of debris to maintain optimal crimping integrity.
It is qualified to MIL-DTL-22520/7 and AS22520/7 standards, making it suitable for military and aerospace applications.
No, positioners are sold separately and are not included with the frame.
It is suitable for maintenance and repair fields, electrical installations, and cable assemblies, providing precise and gas-tight crimps.
The model number of this crimp tool frame is MH860.
This tool is designed for crimping circular connector contacts, including both male and female types.
The country of origin for the MH860 crimp tool frame is the United States.
The sub-type of this crimp tool frame is designated as a crimping tool frame.
