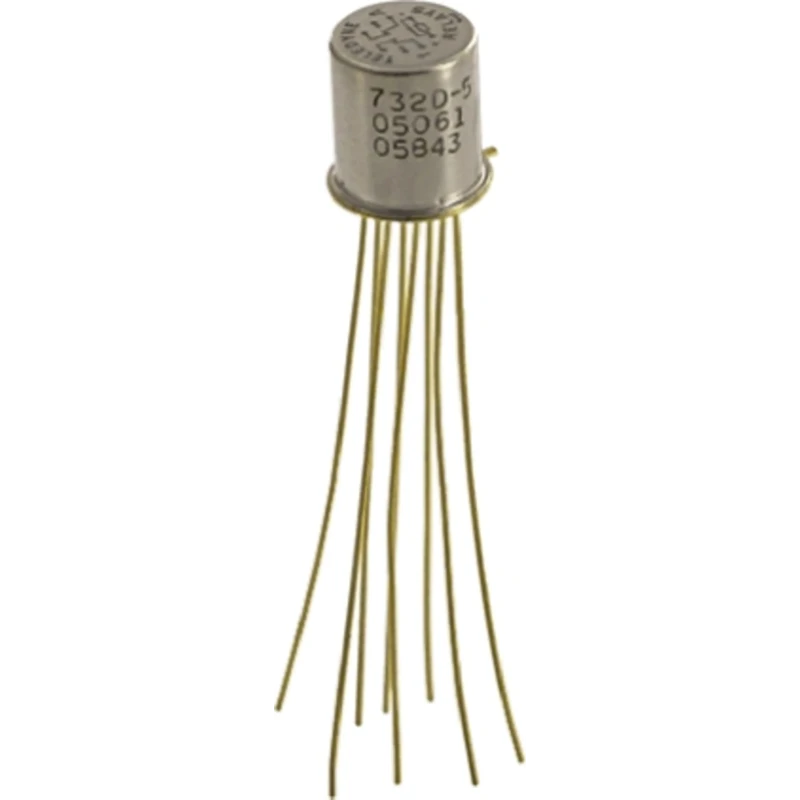

Teledyne PCB RF Relay, 5V dc Coil, DPDT 732D-5

Teledyne 732D-5 PCB RF Relay is a high-performance sub-miniature relay featuring a 5V DC coil and double-pole double-throw (DPDT) contact configuration. Designed for low level switching from dry circuits up to 1 Amp, this relay suits demanding RF signal switching applications. The relay is housed in a compact TO-5 package with precise dimensions of 9.76mm length and height, allowing for tight PCB layouts.

One of the notable features of this relay is its gold plated contacts which provide very low contact resistance of 150 milliohms and an ultra-low insertion loss with contact circuit losses minimized for enhanced RF performance. The coil resistance of 100 ohms and 200 milliwatts coil power consumption results in low power dissipation, making it energy efficient.

Operating temperature range from -55°C to +85°C with RoHS compliance guarantees reliable operation in harsh industrial and environmental conditions. The relay includes an internal discrete silicon diode for coil transient suppression, protecting the driving electronics from voltage spikes.

This relay is hermetically sealed offering high resistance to shock and vibration along with long-term stability in signal, which makes it ideal for industrial, laboratory, communication, and RF test applications. It is commonly used in handheld radio transceivers for transmit/receive switching due to its excellent RF characteristics and mechanical rigidity.

The relay uses through hole terminal type and is designed specifically for PCB mounting. Its uni-frame magnetic design ensures high efficiency and robustness. This relay features gold plated contacts for durability and low contact resistance.

Low coil power consumption minimizes energy use during operation. Hermetically sealed for high mechanical and environmental resistance. Internal diode provides coil transient suppression for circuit protection. Compact TO-5 package allows space-saving on PCB layouts.

Suitable for industrial, laboratory, communication, and RF applications. Operating temperature range of -55°C to 85°C supports use in diverse environments. Contact current rating of 1 Amp supports moderate power signals.

Designed for RF switching applications including handheld radios. RoHS compliant, meeting environmental and safety standards. Explore more RF and signal relay options in the Electronics & Electricals category on EnvMart.
