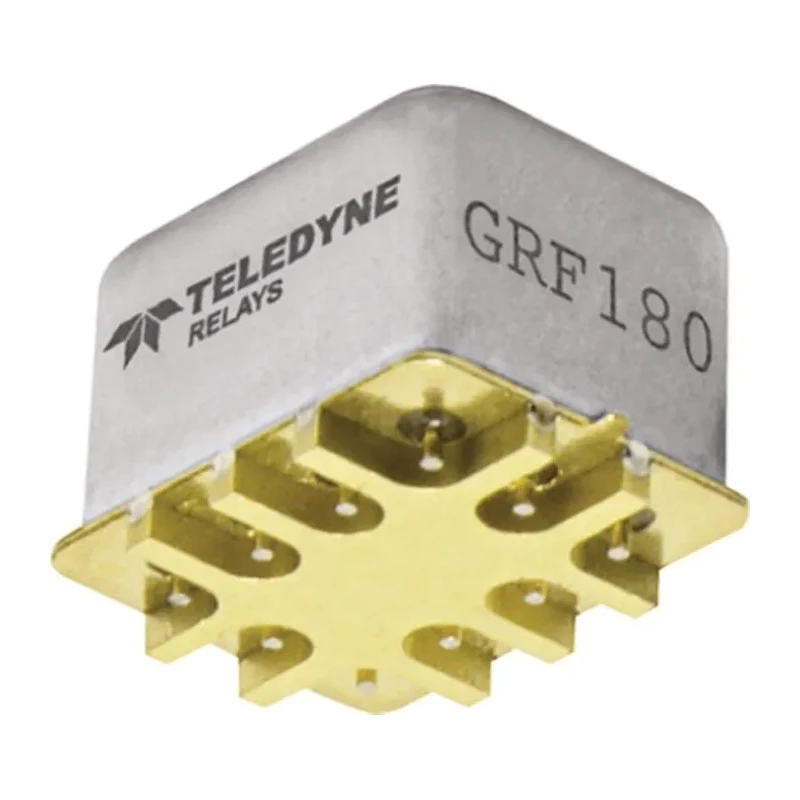

Teledyne Surface Mount DPDT RF Relay with 5V DC Latching Coil, 6 GHz Maximum Coil Frequency GRF180-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Teledyne |
| Height | 8.64mm |
| Length | 8.51mm |
| Model | GRF180-5 |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | GRF180 |
| Maximum Operating Temperature | 85°C |
| Coil Type | Latching |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -55°C |
| Contact Resistance | 150mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 61Ω |
| Coil Power | 410mW |
| Maximum Coil Frequency | 6GHz |
Key Features
- The relay uses a latching coil, requiring power only during state transition to hold the position.
- It provides a double-pole double-throw (DPDT) contact configuration with gold-plated contacts for reliable signal switching.
- Designed for surface mount applications with a compact 8.64mm height profile.
- Operates in extreme temperature ranges from -55°C to 85°C for robust performance.
- Hermetically sealed to ensure low internal circuit losses and enhanced reliability.
- Unique ground shield isolates leads for improved contact-to-contact and pole-to-pole isolation.
- Ideal for high-frequency applications including RF attenuators, switch matrices, and automated test equipment.
- Durable design provides excellent resistance to shock, vibration, and EMI interference.
Product Description
Teledyne GRF180-5 is a hermetically sealed, ultra-miniature surface mount RF relay engineered for high-frequency applications. Featuring a 5V DC latching coil and a maximum coil frequency of 6 GHz, this relay offers an ultra-low internal circuit loss through and beyond the UHF spectrum up to the S band. Its double-pole double-throw (DPDT) contact configuration with gold-plated contacts ensures reliable and stable DC and RF signal switching.
This model requires power only during switching; the latching coil holds state without coil power, providing a non-volatile memory capability. It can operate reliably across a wide temperature range from -55°C to 85°C and withstands shock, vibration, and temperature extremes, making it suitable for demanding industrial, aerospace, and space applications.
The surface mount design features a unique ground shield that isolates each lead to enhance contact isolation and reduce interference. The relay is compact with an 8.51mm length and 8.64mm height, allowing for high-density PCB layouts. Its metal enclosure provides effective EMI shielding and robust ESD resistance.
Teledyne GRF180-5 relays are ideal for use in RF attenuators, RF switch matrices, automated test equipment, spacecraft, and other environments requiring dependable magnetic latching with high-frequency signal integrity.
The relay features a latching coil mechanism that conserves power. Gold-plated contacts deliver low contact resistance and stable insertion loss. Designed for surface mount with a compact size for PCB integration. Hermetically sealed construction ensures long-term reliability.
Broad operating temperature range suitable for harsh environments. Provides excellent resistance to shock, vibration, and electromagnetic interference. Unique grounded shield improves high-frequency performance and isolation.
Suitable for industrial, laboratory, aerospace, and commercial RF applications.
Set your RF and signal switching projects apart with the precision and reliability of the Teledyne GRF180-5. Explore the HF & RF Relays category at EnvMart for more high-performance relay solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Teledyne GRF180-5 has a maximum coil frequency of 6 GHz, making it suitable for high-frequency applications.
This model features a double-pole double-throw (DPDT) contact configuration, allowing for versatile signal switching.
The relay has a length of 8.51mm and a height of 8.64mm, designed for compact surface mount applications.
It uses a latching coil, which requires power only during state transitions to hold its position.
The Teledyne GRF180-5 operates within a temperature range of -55°C to 85°C, suitable for harsh environments.
The contacts of this relay are gold-plated, which ensures low contact resistance and stable signal performance.
The unique ground shield isolates each lead, improving contact-to-contact and pole-to-pole isolation, which enhances performance in high-frequency applications.
The contact resistance is 150mΩ, contributing to its reliable signal switching capabilities.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
This relay is ideal for RF attenuators, switch matrices, automated test equipment, and various industrial and aerospace applications.
The coil power for the Teledyne GRF180-5 is 410mW, which is efficient for its latching mechanism.
The relay is designed for surface mounting, allowing for high-density PCB layouts.
