Omron Surface Mount High Frequency Relay 12V DC Coil DPDT 1GHz G6K-2F-RF DC12

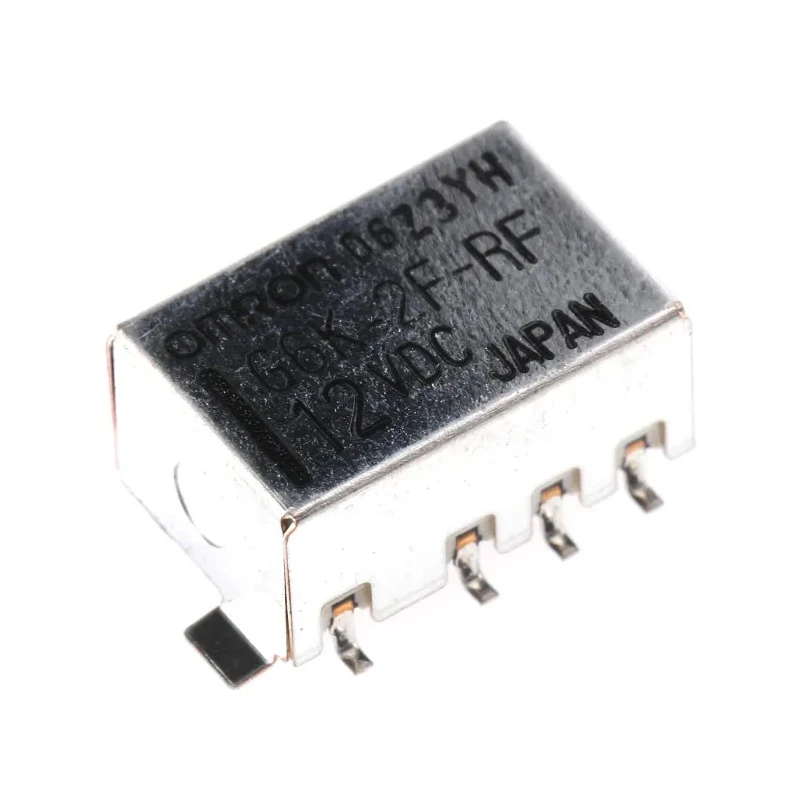

The Omron G6K-2F-RF DC12 is a surface mount high frequency relay engineered for precision RF and signal switching applications. Equipped with a 12V DC coil, this relay features a DPDT (double pole double throw) contact arrangement, enabling versatile switching in complex circuits.

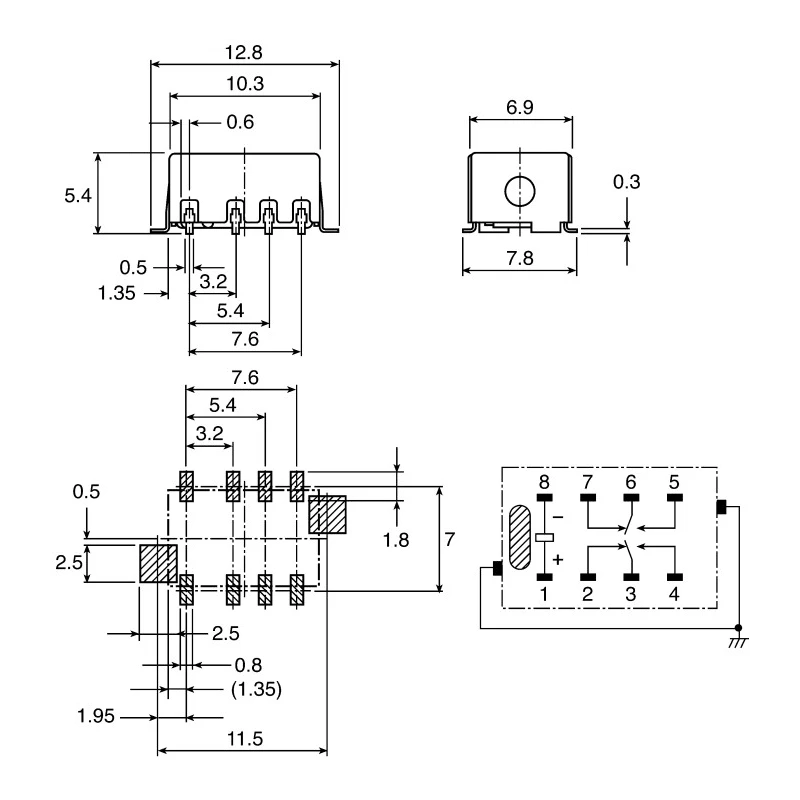

With a maximum coil frequency of 1GHz, the G6K-2F-RF DC12 excels in high-frequency environments such as telecommunications, RF equipment, and advanced signal conditioning systems. Its miniature SMT package (10.3 x 6.9 x 5.4mm) allows efficient layout on printed circuit boards, conserving valuable space in electronic assemblies.

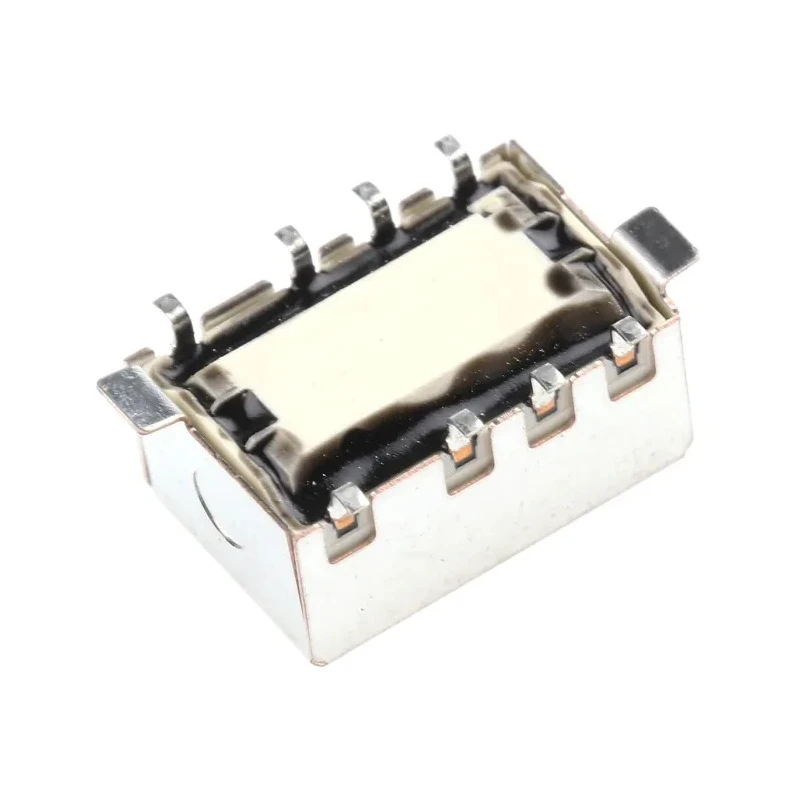

The relay utilizes gold contacts for optimal conductivity and extended lifespan, while fully sealed construction protects against contaminants and environmental stress. It achieves excellent isolation performance, offering a minimum of 30dB isolation between contacts of different polarity and maintaining an insertion loss as low as 0.2dB.

Power efficiency is a core feature, with coil power consumption rated at approximately 100mW. The voltage standing wave ratio (VSWR) is rated at 1.2 at 1GHz, supporting stable performance across high-frequency bands. Surface mount terminals, including 'Outside-L' design, facilitate straightforward integration and automated placement in production environments.

The relay is RoHS compliant and is built to withstand a broad operating temperature range from -40°C to 70°C, making it suitable for industrial, telecommunications, and laboratory use. Approvals include UL and CSA, confirming adherence to leading electrical safety standards.

Common applications include RF switching, telecom signal routing, laboratory test equipment, and high-frequency instrumentation where compact design, reliability, and high electrical isolation are critical.

Designed for high-frequency signal switching up to 1GHz. Features double pole double throw (DPDT) contact configuration. Operates with a 12V DC coil voltage for reliable performance. Miniature surface mount package enables space-efficient PCB integration.

Low coil power consumption of about 100mW. Gold contact material ensures high conductivity and durability. Fully sealed construction suitable for demanding environments. Excellent isolation (30dB) and low insertion loss (0.2dB) at high frequencies.

RoHS compliant with -40°C to 70°C operating temperature range. Ideal for RF, telecommunications, and signal conditioning applications. Explore more high-frequency relays from Omron and related RF switching solutions in the Electronics & Electricals category at EnvMart.
