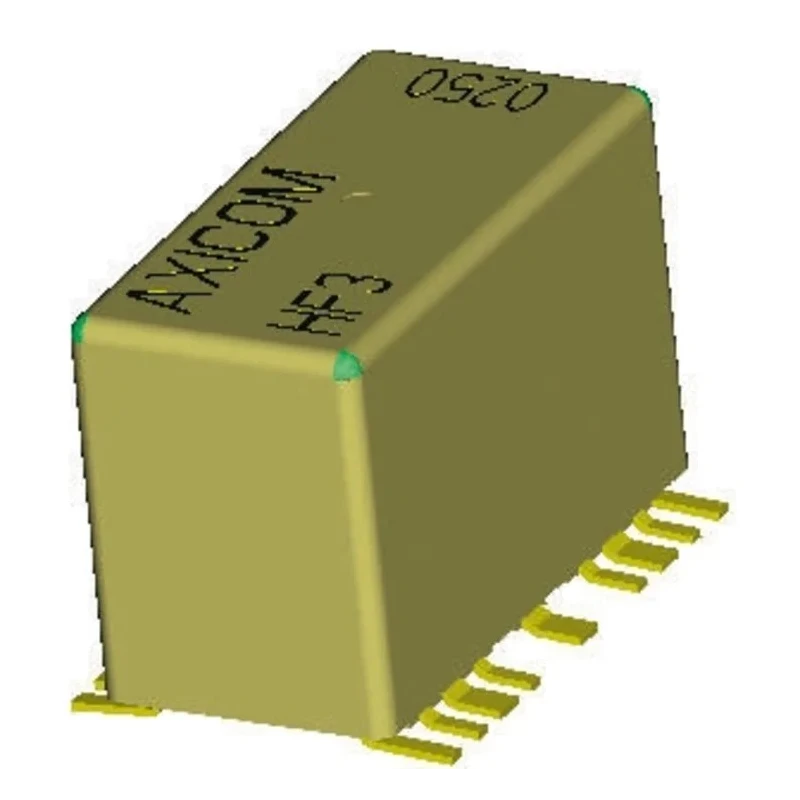

TE Connectivity PCB High Frequency Relay, 12V DC Coil, 2A Contact Current, SPDT, Gold Plated Contacts 1462050-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 10mm |
| Length | 14.6mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | HF3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -55°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 1028Ω |
| Coil Power | 140mW |
| Contact Current | 2A |
Key Features
- Operates at coil resistance of 1028 ohms ensuring low power consumption.
- Supports contact current up to 2 amperes suitable for PCB mounting.
- Compact dimensions of 14.6mm length, 10mm height, and 7.2mm width.
- Designed for use in high frequency applications up to 3GHz with 50 ohm impedance.
- Gold plated contacts improve conductivity and reduce contact resistance.
- Coil power consumption is 140mW for efficient performance.
- Operational temperature range from -55°C to 85°C for wide environmental tolerance.
- Complies with RoHS standards ensuring environmental safety.
Product Description
TE Connectivity 1462050-4 PCB High Frequency Relay is designed for high frequency applications requiring precise and reliable signal switching. It features a 12V DC coil with a coil resistance of 1028 ohms, delivering a coil power of 140mW, which minimizes energy consumption in operation.
The relay provides a single pole double throw (SPDT) contact configuration with gold plated contacts for enhanced conductivity and durability. It supports a contact current of 2 amperes, making it ideal for PCB mounting in electronic circuits.
With compact dimensions of 14.6mm length, 7.2mm width, and 10mm height, this relay fits conveniently in tight electronic assemblies. It operates effectively within a temperature range of -55°C to 85°C, allowing usage in harsh industrial, laboratory, and telecommunications environments.
This HF3 series relay supports frequency ranges from DC up to 3GHz at 50 ohm impedance, suitable for RF and high-frequency signal conditioning applications. The plastic sealed SMT design ensures long-term reliability and enhanced protection against environmental factors.
Coil resistance of 1028 ohms for efficient coil operation. SPDT contact configuration with gold plated contacts for low resistance. Contact current rating of 2A for reliable signal switching. Operates within temperature range of -55°C to 85°C for versatile use.
Dimensions: 14.6mm x 7.2mm x 10mm compact form factor. Coil power consumption of 140mW minimizing power loss. RoHS compliant ensuring eco-friendly manufacturing standards.
This PCB High Frequency Relay from TE Connectivity is suitable for applications in industrial electronics, communication systems, measurement instruments, and automated control systems. Its high frequency capabilities and robust contact materials make it a dependable component for signal integrity and switching precision.
Explore the full range of relays & contactors at EnvMart for diverse electronic control needs.
Explore more products in our RF Relay category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole double throw (SPDT) contact configuration, allowing for versatile signal switching applications.
It supports a maximum contact current of 2 amperes, suitable for various electronic circuit applications.
The relay has compact dimensions of 14.6mm in length, 7.2mm in width, and 10mm in height, making it suitable for tight spaces on PCBs.
The coil resistance is 1028 ohms, which contributes to its low power consumption during operation.
It operates effectively within a temperature range of -55°C to 85°C, allowing for use in various environmental conditions.
The coil power consumption is 140mW, which helps minimize energy loss during operation.
This relay is designed for high frequency applications, supporting frequencies up to 3GHz at 50 ohm impedance.
It is designed for PCB mounting, making it suitable for integration into electronic assemblies.
The contacts are made from gold plated material, which enhances conductivity and reduces contact resistance.
Yes, this model complies with RoHS standards, ensuring it meets environmental safety requirements.
The terminal type is solder, which is standard for PCB mounted components.
The relay is manufactured in India, ensuring adherence to local manufacturing standards.
