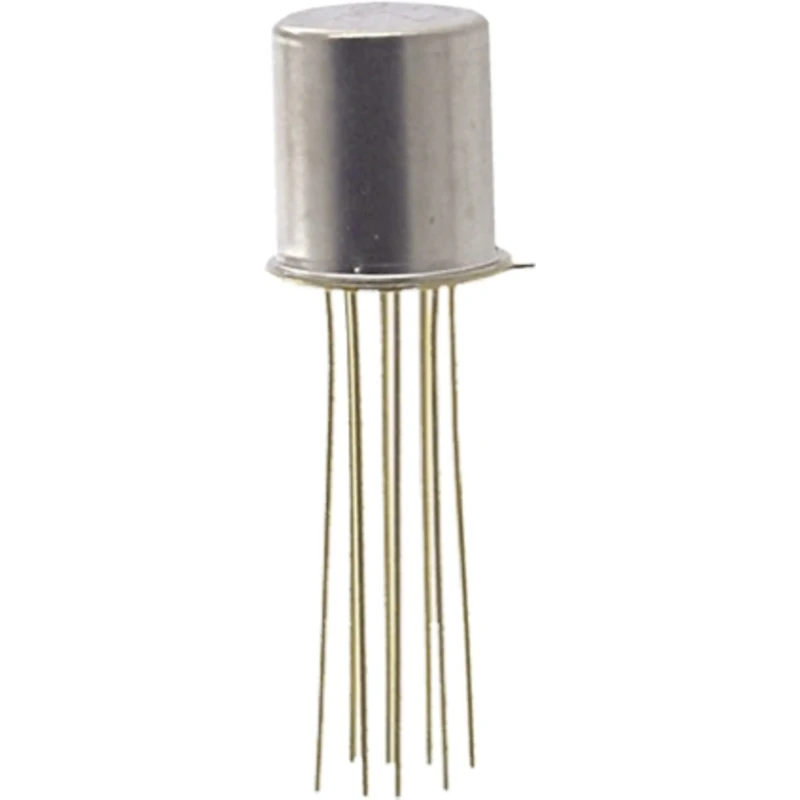

Teledyne PCB RF Relay 12V DC Coil 450mW Power DPDT Contact Configuration RF300-12
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Teledyne |
| Height | 6.99mm |
| Length | 9.4mm |
| Model | RF300-12 |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RF300 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -55°C |
| Terminal type | Through Hole |
| Contact Resistance | 150mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 390Ω |
| Coil Power | 450mW |
Key Features
- Offers excellent signal integrity with gold plated contacts and metal enclosure.
- Hermetically sealed ultra-miniature TO-5 relay for reliable high speed signal transfer.
- Suitable for RF attenuator switching, wireless LAN, and other high frequency uses.
- Through hole mount for PCB installation with 390 ohm coil resistance.
- Operates reliably within -55°C to 85°C temperature range.
- Low contact resistance of 150 milliohms ensures minimal signal loss.
- High resistance to shock, vibration, and environmental extremes.
- Complies with RoHS standards ensuring hazardous substance compliance.
Product Description
Teledyne RF300-12 PCB RF Relay is a hermetically sealed, ultra-miniature TO-5 RF Relay equipped with a 12V DC coil rated at 450mW power. Featuring a double-pole double-throw (DPDT) contact configuration, this relay provides dependable, high-performance RF signal switching with excellent signal integrity for signals up to 10 Gbps.
Its gold plated contacts and metal enclosure deliver superior EMI shielding and enhanced resistance against electrostatic discharge (ESD). The relay's design ensures high isolation between control and signal paths along with excellent mechanical rigidity via a uni-frame construction, making it suitable for demanding industrial, laboratory, and telecom applications.
With a compact form factor of 9.4 mm length and 6.99 mm height, the through-hole PCB mount RF300 relay offers a coil resistance of 390 ohms and contact resistance as low as 150 milliohms, ensuring efficient switching and low signal attenuation. It is engineered to operate reliably across a wide temperature span from -55°C to 85°C.
This relay is ideal for use in RF attenuator switching, wireless local area networks, and other communication or instrumentation systems requiring repeatable and sensitive switching performance. The product complies with RoHS directives, confirming it meets safety and environmental standards.
Gold plated contacts for superior conductivity and longevity. Metal enclosure provides robust EMI shielding and ESD resistance. Hermetically sealed design protects against environmental contaminants. DPDT contact configuration enables versatile switching applications.
Wide operating temperature range of -55°C to 85°C ensures reliability. Compact TO-5 package facilitates easy PCB integration. Low coil power consumption of 450mW enhances energy efficiency. High resistance to shock and vibration supports industrial usage.
Compliant with RoHS for environmental and safety standards.
The RF300-12 relay is manufactured in the United States, ensuring premium quality and stringent manufacturing standards. This relay supports varied applications in industries such as telecommunications, manufacturing, laboratory instrumentation, and industrial controls.
Explore the category to find more reliable relays and electrical components to complement your projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RF300-12 relay features a double-pole double-throw (DPDT) contact configuration, allowing for versatile switching applications.
This model operates with a coil power consumption of 450mW, which enhances energy efficiency during operation.
The relay operates reliably within a temperature range of -55°C to 85°C, making it suitable for various environmental conditions.
The contact resistance of the RF300-12 relay is as low as 150 milliohms, ensuring minimal signal loss during operation.
This relay has a compact form factor with a length of 9.4 mm and a height of 6.99 mm, facilitating easy PCB integration.
The RF300-12 relay is designed for through-hole mounting on printed circuit boards (PCBs).
The contacts of the RF300-12 relay are made of gold plated material, which provides superior conductivity and longevity.
The coil resistance of this relay is 390 ohms, which is essential for its operation.
This relay complies with RoHS standards, ensuring it meets safety and environmental regulations.
It is suitable for RF attenuator switching, wireless local area networks, and other communication or instrumentation systems requiring sensitive switching performance.
The RF300-12 relay is manufactured in the United States, ensuring adherence to stringent manufacturing standards.
The maximum operating temperature for the RF300-12 relay is 85°C, allowing it to function effectively in high-temperature environments.
