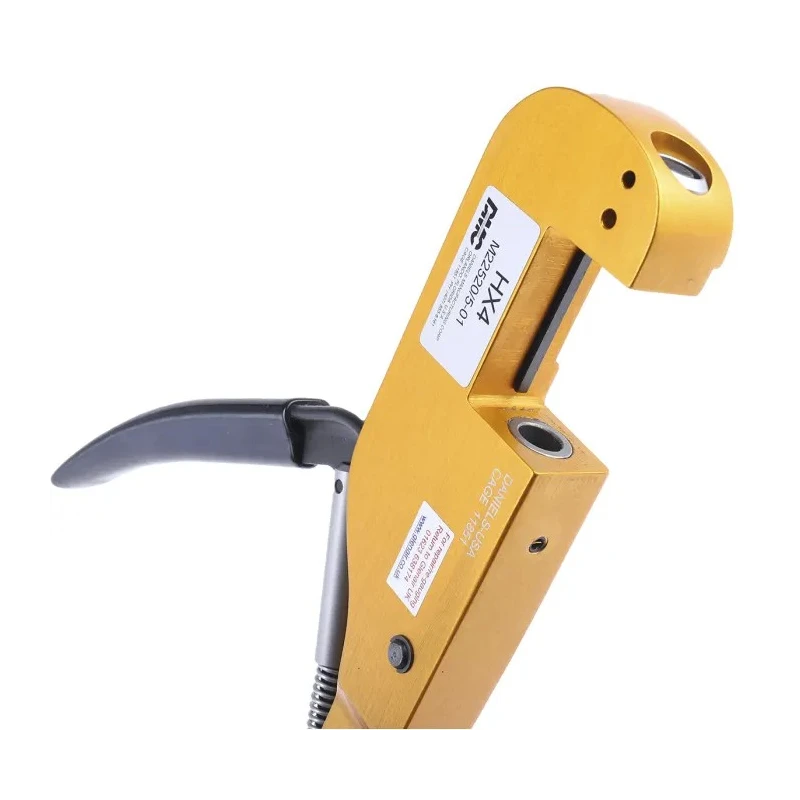

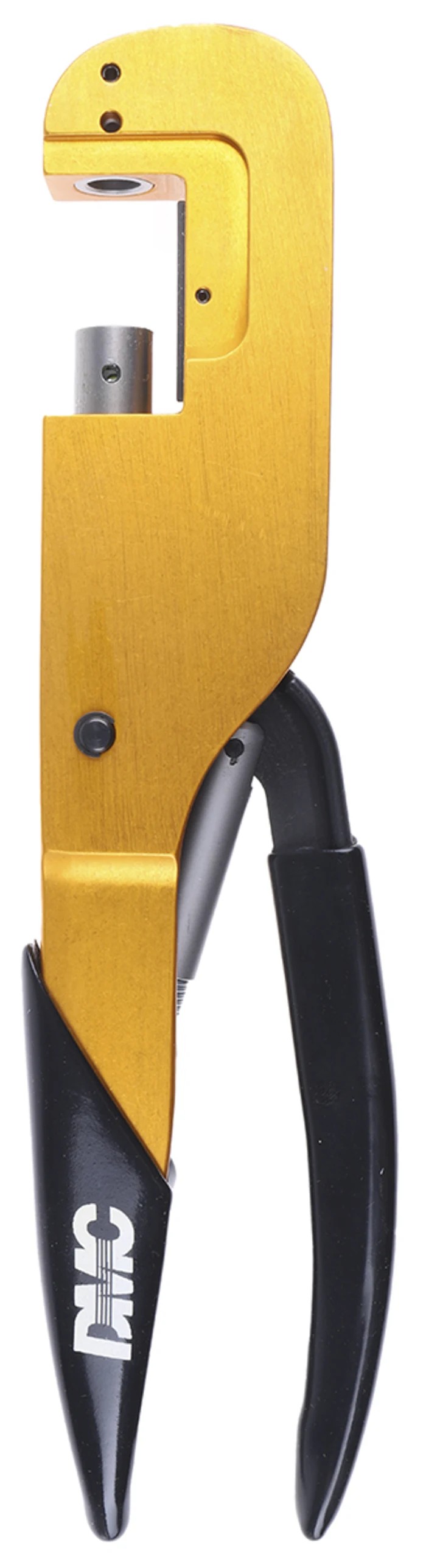

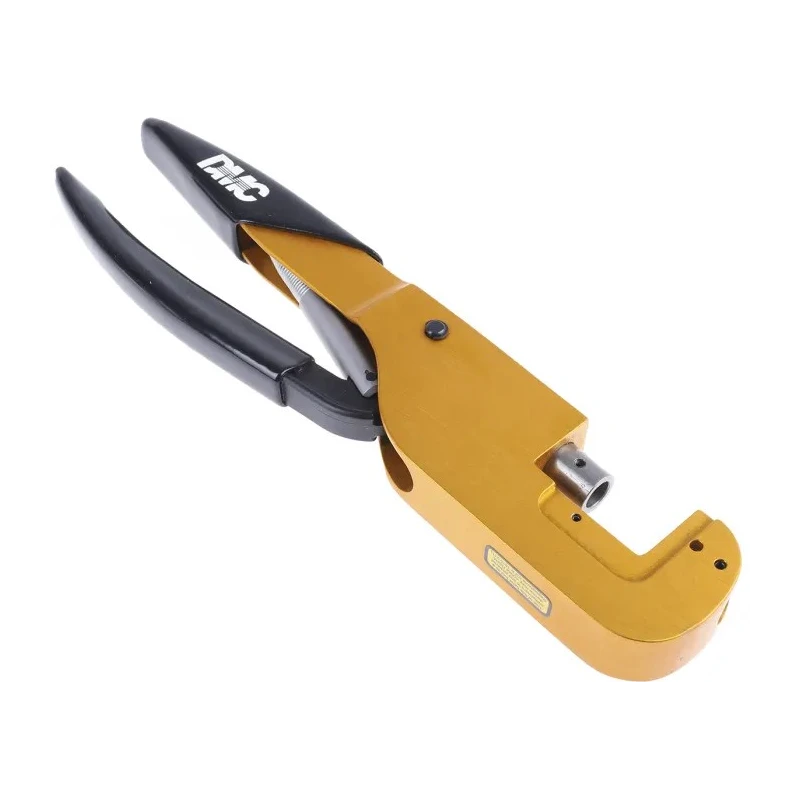

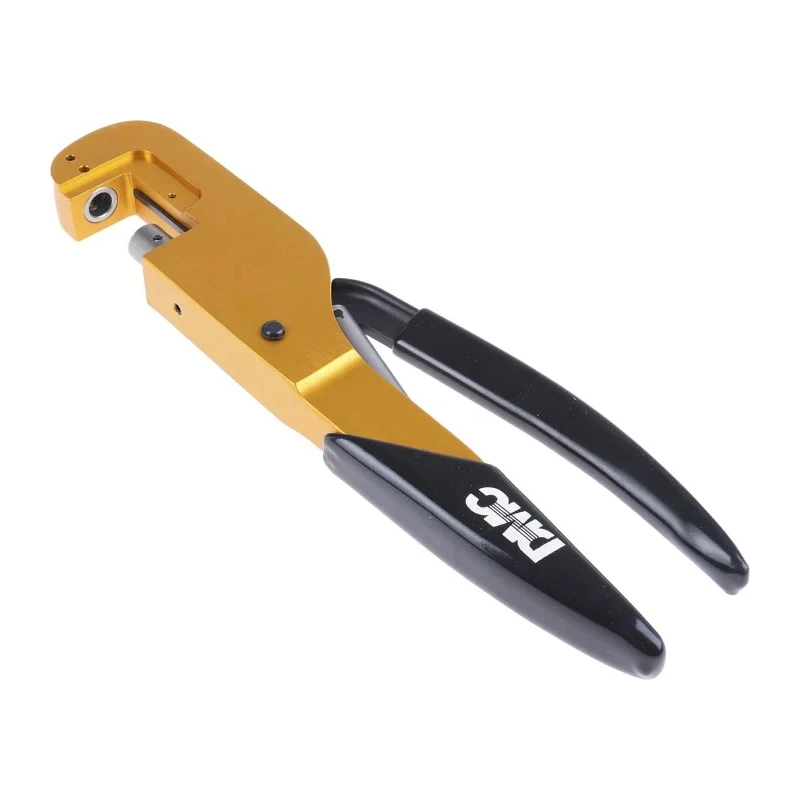

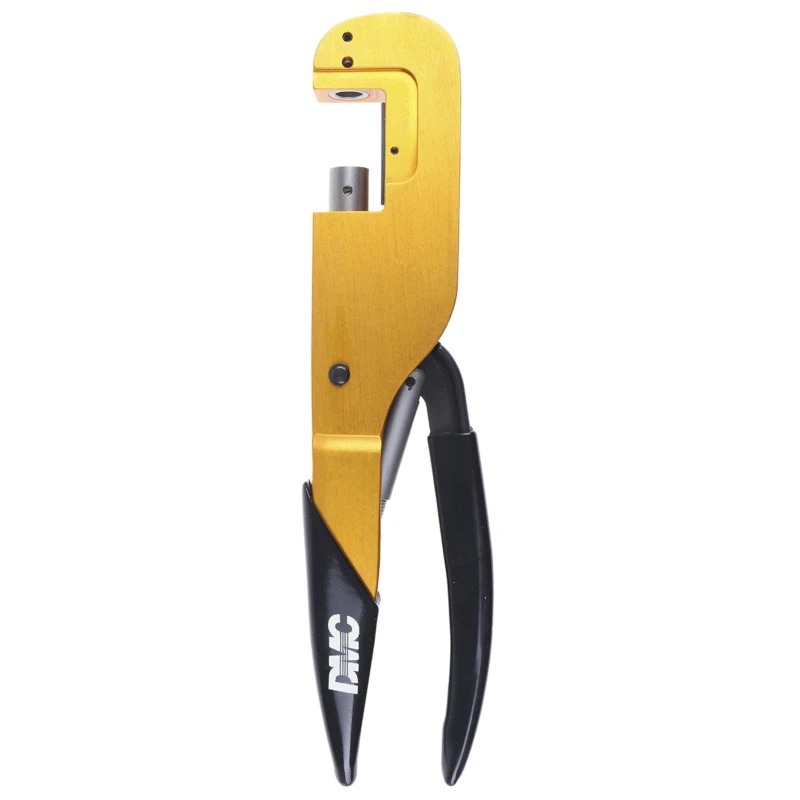

Glenair M22520/5-01 Crimp Tool Frame with Adjustable Ratchet Crimping Tool Frame HX4

Glenair HX4 Crimp Tool Frame M22520/5-01 is a high-quality adjustable ratchet crimping tool frame designed for industrial and mechanical use. It supports interchangeable coaxial connector crimp die sets, allowing the user to terminate various coaxial contacts efficiently in compliance with MIL-C-39012, MIL-C-39029, and proprietary standards. The frame eliminates the need for numerous dedicated crimp tools, offering operational flexibility.

The crimp dies snap securely into the frame and are retained by internal spring clips, ensuring stability during use. The tool frame is supplied with operating instructions and a die remover to facilitate the change and maintenance of die sets. A specific die set (425-6162) is engineered to terminate BT2003 RS crimp plugs and jacks used with cable group H.

This tool is ideal for applications in industrial manufacturing, aerospace, telecommunications, and laboratory settings where precise coaxial cable terminations are required. Glenair's commitment to quality is reflected in the robust construction of the HX4 tool frame, manufactured in the United States.

The tool frame features an adjustable ratchet mechanism for consistent crimping force. Snap-in die sets allow quick interchangeability for diverse connector types. Compatible with MIL and proprietary standard connectors.

Operating instructions and die remover included with the tool. Designed for high precision and durability in industrial environments. Ensure correct selection of dies for connector compatibility. For more tools and accessories, explore the industrial tools category at EnvMart.
