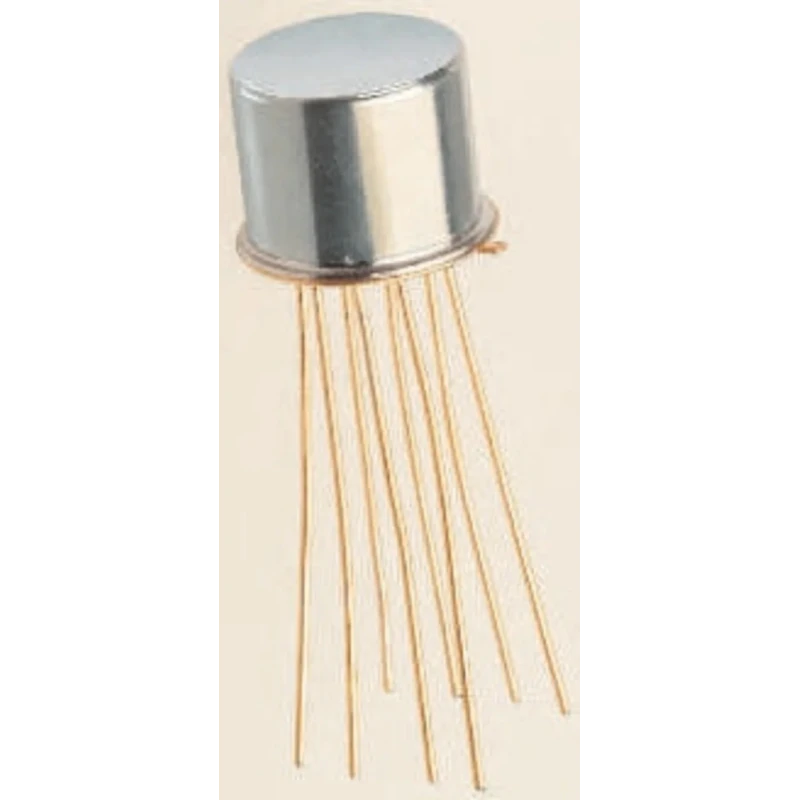

Teledyne Through Hole RF Relay, 26.5V DC Coil, DPDT, Gold Plated Contacts, 1A Contact Current, 712-26

Teledyne 712-26 Through Hole RF Relay is a high-quality DPDT relay featuring a 26.5V DC coil designed for ultra-miniature low-level switching applications. This TO-5 series relay is engineered with a gold plated contact material and a coil power dissipation of 450mW, enabling efficient and reliable operation within a broad temperature range from -55°C to 85°C.

This relay's hermetically sealed construction provides robust resistance to environmental extremes, including shock and vibration, making it suited for demanding industrial and communication equipment.

The ultra-compact dimensions of 9.4mm length and 6.99mm height allow installation in closely spaced printed circuit boards. Its low insertion loss and inter-contact capacitance of just 0.4pF permit excellent RF performance, supporting frequencies up to 1GHz.

With a rated contact current of 1A and DPDT configuration, the 712-26 relay is commonly used for transmit/receive switching in handheld radio transceivers and other RF switching applications requiring high reliability and performance.

Low coil power dissipation at 450mW for energy-efficient function. Gold plated contacts for excellent conductivity and durability. Hermetically sealed for high environmental resistance. Compact TO-5 form factor to fit tight PCB layouts.

Wide operating temperature range from -55°C to 85°C. Superior RF performance with low insertion loss and capacitance. Complies with RoHS environmental standards. 1A contact current rating suitable for low power RF circuits.

DPDT configuration provides versatile switching capability. This relay is ideal for industrial, telecommunications, laboratory, and manufacturing applications requiring a dependable RF Relay with small size and high performance.
