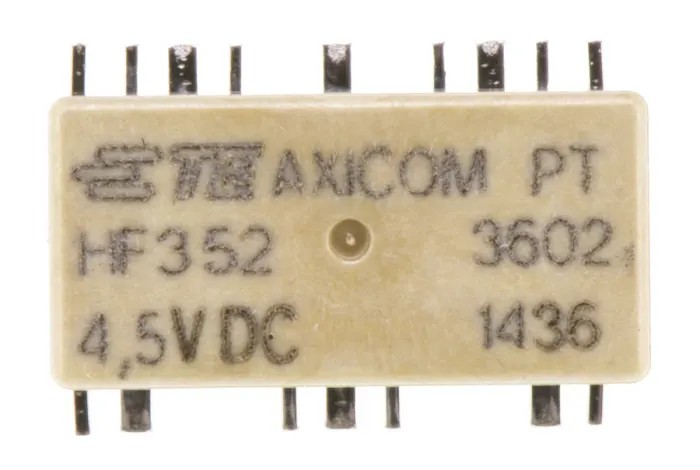

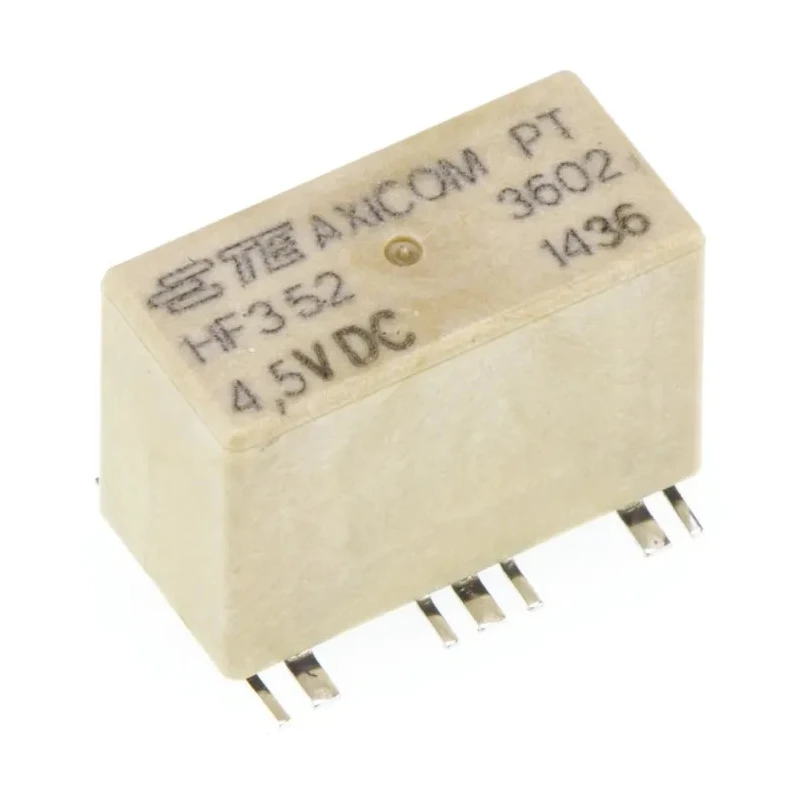

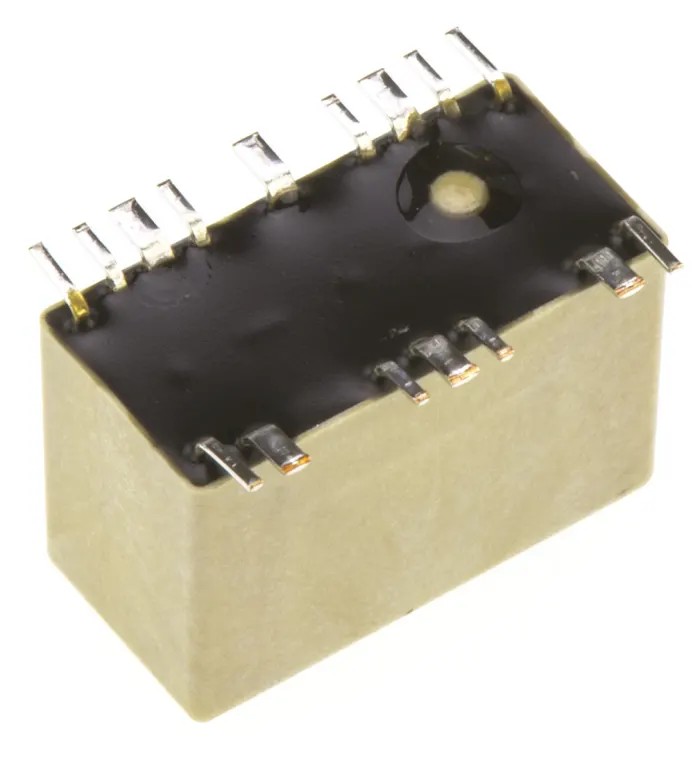

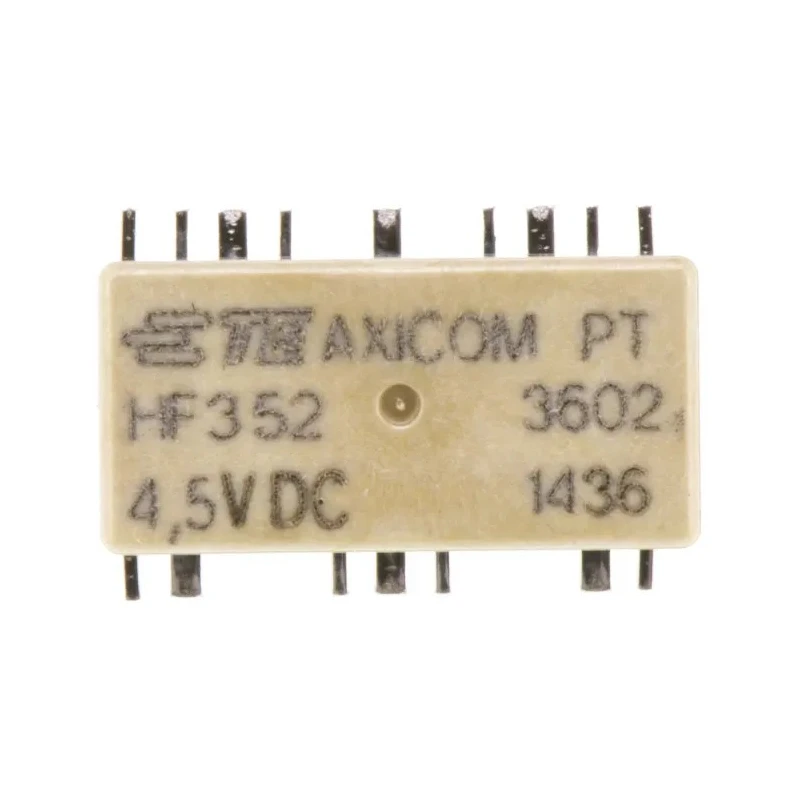

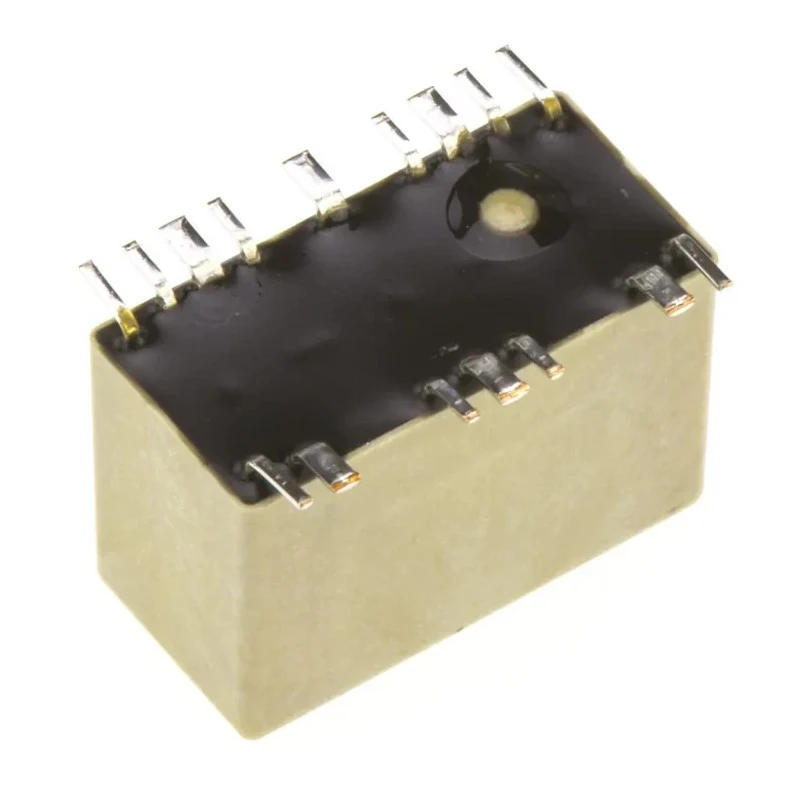

TE Connectivity PCB RF Relay, 4.5V DC Coil, 3 GHz Maximum Coil Frequency, 2A Contact Current, SPDT HF3-52
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 10mm |
| Length | 14.6mm |
| Model | HF3-52 |
| Mount Type | PCB |
| Isolation | 45dB |
| Contact Material | Gold Plated |
| Series | HF3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -55°C |
| Terminal type | Surface Mount |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS, REACH |
| Coil Resistance | 1030Ω |
| Coil Power | 140mW |
| Contact Current | 2A |
| Insertion Loss | 0.35dB |
| Maximum Coil Frequency | 3GHz |
Key Features
- Operates in frequency range from DC to 3 GHz ensuring high performance.
- Coil resistance measures 1030 ohms for stable operation.
- Gold plated contacts provide durability and low contact resistance of 100 milliohms.
- Insertion loss is minimal at 0.35 dB and isolation is high at 45 dB.
- Suitable for surface mount PCB with compact dimensions of 14.6 mm length, 7.2 mm width, and 10 mm height.
- Coil power consumption is low at 140 mW, enabling energy-efficient use.
- Operates reliably in temperature ranges from -55°C to +85°C.
- The relay supports a contact current of 2 A, ideal for a variety of electronic applications.
Product Description
TE Connectivity HF3-52 is a high frequency PCB RF Relay engineered for reliable switching in 50 Ohm systems. Featuring a 4.5V DC coil and a maximum coil frequency of 3 GHz, this relay supports SPDT (Single Pole Double Throw) contact configuration to deliver efficient signal routing.
The relay is designed with gold plated contacts which provide excellent conductivity and reduce wear, with a contact resistance of just 100 milliohms. Its low insertion loss of 0.35 dB and isolation of 45 dB enable minimal signal degradation and high performance in RF applications.
Compact and efficient, the relay measures 14.6 mm in length, 7.2 mm in width, and 10 mm in height, making it suitable for surface mount PCB assemblies. The coil resistance is 1030 ohms and coil power consumption is only 140 mW, supporting energy-efficient operation.
Designed to operate reliably from -55°C up to 85°C, the relay suits harsh industrial, laboratory, and communication environments. It supports a contact current of 2 amperes, making it suitable for various electronic and signal conditioning applications.
The product complies with RoHS and REACH standards, ensuring it meets environmental and safety regulations. This HF3 series relay is ideal for use in industrial automation, telecommunications, laboratory instrumentation, and other high-frequency PCB applications.
Operates in frequency range DC to 3 GHz with 50Ω impedance support. Gold plated contacts ensure durability and low resistance. Surface mount type for quick PCB integration. Low coil power consumption for energy savings. Wide operating temperature range from -55°C to 85°C.
Compliant with RoHS and REACH environmental standards. Compact dimensions enable space-saving PCB design. Explore a wide range of relays for industrial, laboratory, and communication applications at EnvMart to meet your precise switching needs.
