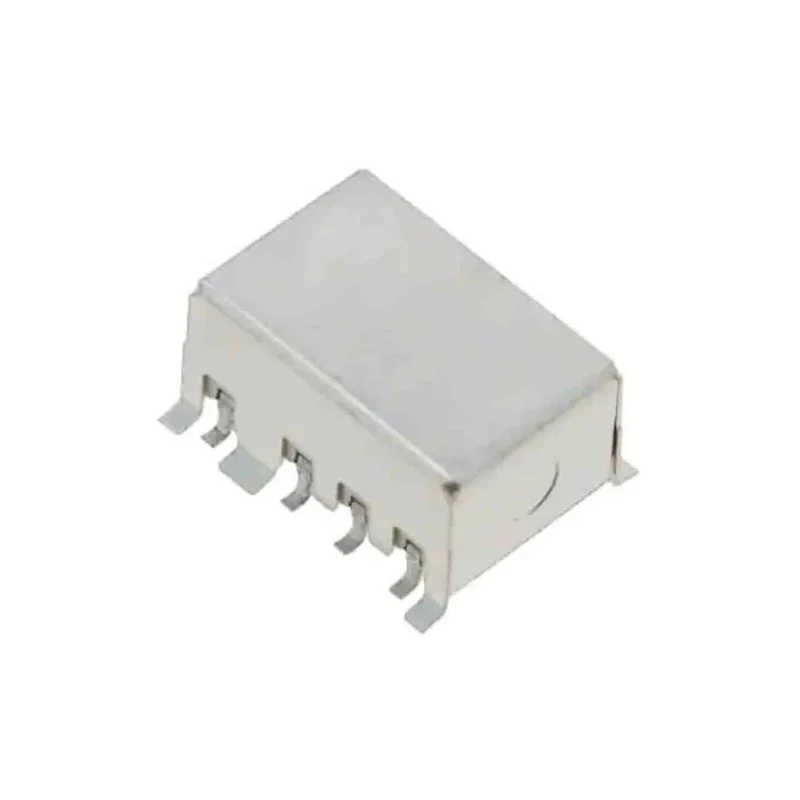

Omron Surface High Frequency Relay, 12V dc Coil, 1 GHz Max. Coil Frequency, DPDT G6K-2F-RF-S DC12
Specifications
| Country of Origin | Japan |
|---|---|
| Frequency | Relay, 12V dc Coil, 1 GHz Max |
| Brand | Omron |
| Height | 5.4mm |
| Length | 10.7mm |
| Model | G6K-2F-RF-S DC12 |
| Mount Type | Surface |
| Isolation | 20dB |
| Series | G6K-2F-RF |
| Maximum Operating Temperature | 70°C |
| Coil Type | Relay Coil |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1310Ω |
| Contact Current | 1A |
| Insertion Loss | 0.2dB |
| Maximum Coil Frequency | 1GHz |
Key Features
- Designed for surface mounting with PCB terminals for easy integration.
- Provides excellent isolation of 20 dB and low insertion loss of 0.2 dB.
- Operates reliably between -40°C to 70°C ambient temperatures.
- Contact resistance is minimal at 100 milliohms ensuring high signal integrity.
- Suitable for communications, broadcasting, and audio visual equipment.
- Coil resistance is 1310 ohms supporting stable relay coil actuation.
- Physical dimensions of 10.7 mm length and 5.4 mm height for compact applications.
- Complies with RoHS standards ensuring environmental safety.
Product Description
The Omron G6K-2F-RF-S DC12 surface mounting high frequency relay is engineered for superior high-frequency performance, operating efficiently up to 1 GHz coil frequency. It incorporates a 12V direct current coil and DPDT contact configuration, delivering reliable contact switching for high-frequency signals.
Ideal for applications in communications equipment, broadcasting devices, and audio-visual systems, this relay ensures minimal signal loss due to its low insertion loss of 0.2 dB and an isolation level of 20 dB. Its coil resistance of 1310 ohms contributes to stable performance, while a contact resistance of just 100 milliohms guarantees high signal fidelity.
Designed for surface mounting on printed circuit boards, the relay features robust PCB terminals and a compact footprint measuring 10.7 mm in length and 5.4 mm in height. It has an operating temperature range from -40°C to 70°C, making it suitable for varied environmental conditions. The relay meets RoHS compliance, reflecting its conformance to environmental standards.
With high electrical durability rated at 100,000 operations, this relay is well suited for continuous industrial and laboratory applications, including in telecommunications, broadcasting, and advanced audio-visual equipment manufacturing. Its Japanese origin ensures quality manufacturing standards.
Designed for surface mounting with PCB terminals for easy integration. Provides excellent isolation of 20 dB and low insertion loss of 0.2 dB. Operates reliably between -40°C to 70°C ambient temperatures. Contact resistance is minimal at 100 milliohms ensuring high signal integrity.
Suitable for communications, broadcasting, and audio visual equipment. Coil resistance is 1310 ohms supporting stable relay coil actuation. Physical dimensions of 10.7 mm length and 5.4 mm height for compact applications.
Complies with RoHS standards ensuring environmental safety. Manufactured in Japan with a high electrical durability of 100,000 operation cycles.
This Omron surface high frequency relay is a dependable choice for electronic component integrations in industrial, communication, and laboratory settings. Explore more high-quality relays and electrical components in the Relays & Contactors category at EnvMart.
Explore more products in our RF Relay category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum coil frequency for this relay is 1 GHz.
This model features a DPDT (Double Pole Double Throw) contact configuration.
The relay has a length of 10.7 mm and a height of 5.4 mm, making it suitable for compact applications.
It operates reliably within a temperature range of -40°C to 70°C.
The contact resistance is minimal at 100 milliohms, ensuring high signal integrity.
The coil resistance is 1310 ohms, which supports stable relay coil actuation.
This relay is designed with PCB terminals for surface mounting and easy integration.
The relay provides an isolation level of 20 dB, which helps minimize interference.
The insertion loss is low at 0.2 dB, contributing to efficient signal transmission.
It is suitable for communications, broadcasting, and audio-visual equipment applications.
This relay complies with RoHS standards, ensuring it meets environmental safety requirements.
The electrical durability is rated at 100,000 operations, making it suitable for continuous use.
