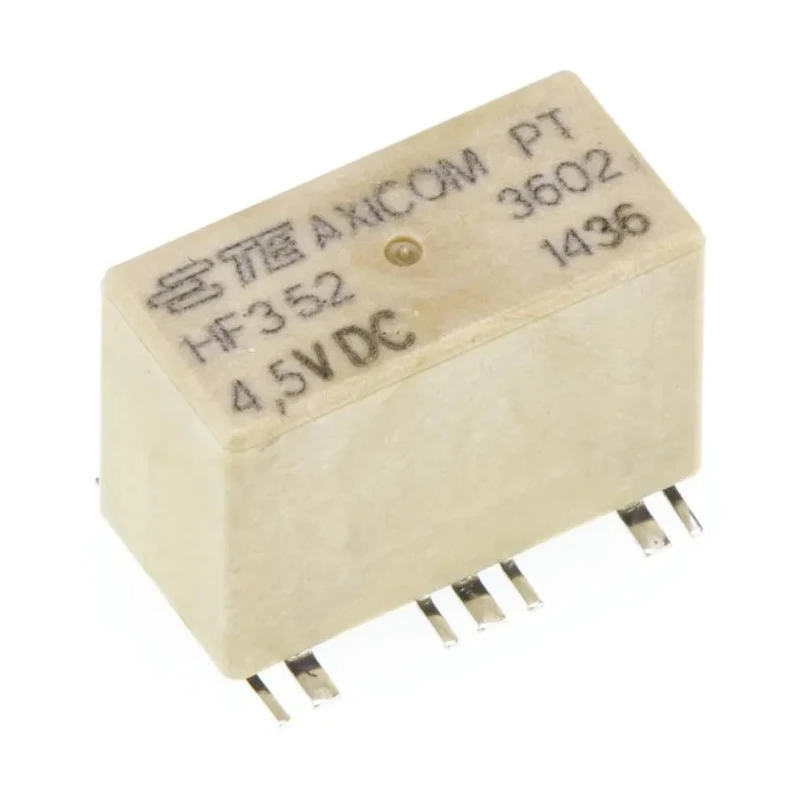

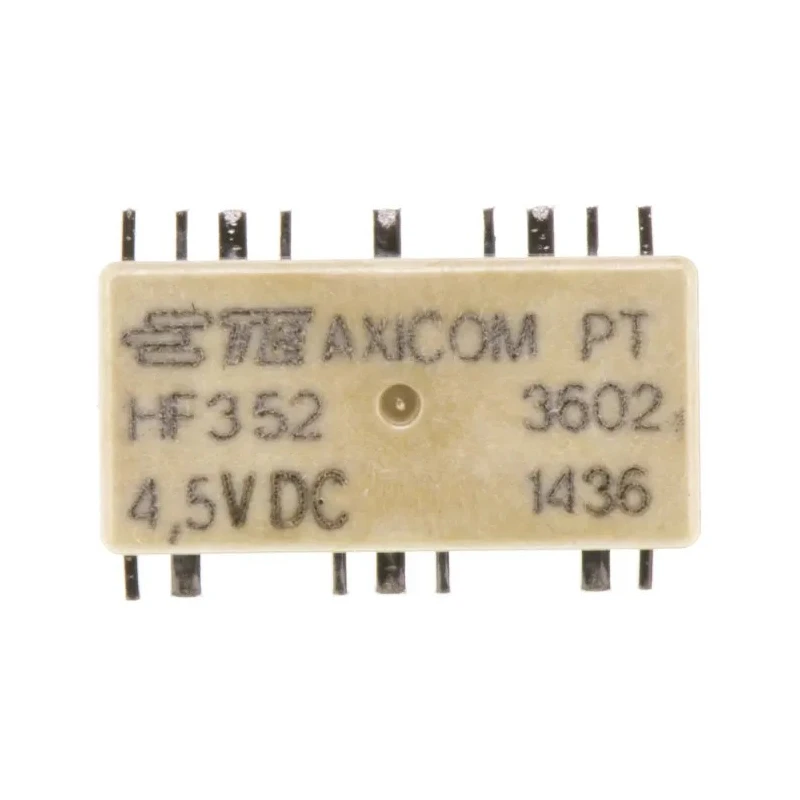

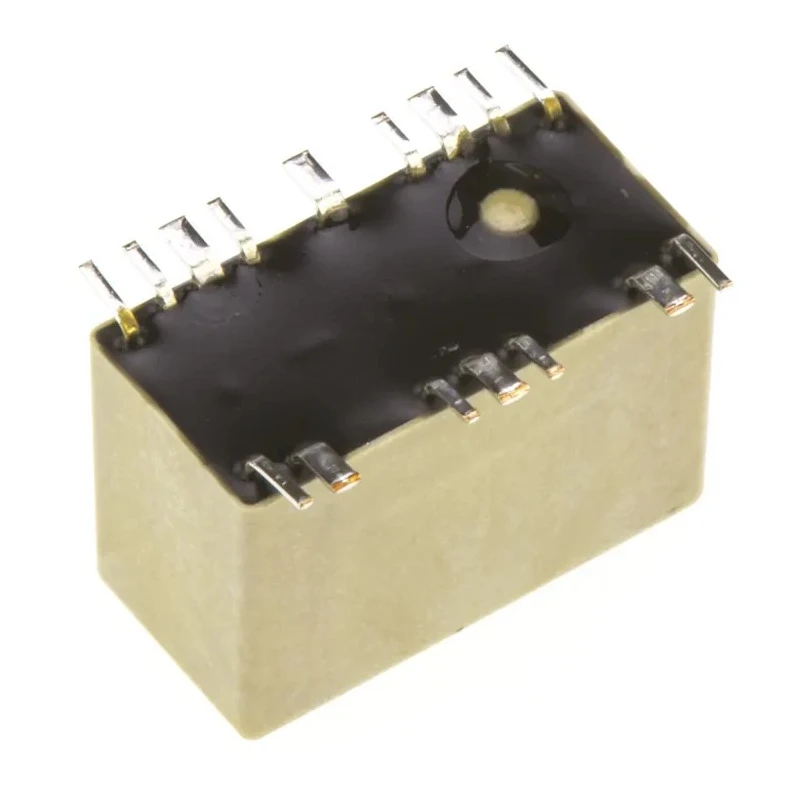

TE Connectivity PCB RF Relay 4.5V DC Coil 3 GHz Max Coil Frequency SPDT HF3-52
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 10mm |
| Length | 14.6mm |
| Model | HF3-52 |
| Mount Type | PCB |
| Isolation | 45dB |
| Contact Material | Gold Plated |
| Series | HF3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -55°C |
| Terminal type | Surface Mount |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS, REACH |
| Coil Resistance | 1030Ω |
| Coil Power | 140mW |
| Contact Current | 2A |
| Insertion Loss | 0.35dB |
| Maximum Coil Frequency | 3GHz |
Key Features
- High frequency relay supporting up to 3 GHz coil frequency.
- Designed for 50 Ohm systems with low insertion loss.
- Gold plated contacts ensure reliable low resistance connections.
- Surface mount terminal type for PCB mounting.
- Operates in temperature range from -55°C to 85°C.
- Compact dimensions measuring 14.6mm length, 7.2mm width, and 10mm height.
- Low coil power consumption of 140mW enhances energy efficiency.
- Contact current rating of 2A suitable for moderate power applications.
Product Description
TE Connectivity HF3-52 PCB RF Relay features a 4.5V DC coil and supports a maximum coil frequency of 3 GHz, making it suitable for high-frequency applications in electronics and communication systems. The relay features a single pole double throw (SPDT) contact configuration with gold plated contacts to ensure low contact resistance and reliable switching performance.
Designed specifically for 50 Ohm systems, this relay offers low insertion loss of 0.35dB and excellent isolation of 45dB, contributing to signal integrity in RF circuits. The compact surface mount device measures 14.6mm in length, 7.2mm in width, and 10mm in height, making it ideal for PCB mounting in space-constrained layouts.
The coil resistance is 1030Ω with a power consumption of 140mW, optimizing energy efficiency. It can safely handle contact currents up to 2A and operates reliably across a temperature range from -55°C to 85°C. This relay complies with RoHS and REACH environmental standards, ensuring safe and eco-friendly usage.
High frequency relay supporting up to 3 GHz coil frequency. Low insertion loss and high isolation for signal integrity. Gold plated SPDT contacts for durable and reliable performance. Compact surface mount package suitable for PCB mounting.
Wide operating temperature range from -55°C to 85°C. Efficient coil power consumption at 140mW. Contact current rating of 2A suitable for moderate load switching. Compliance with RoHS and REACH environmental standards.
This relay is ideal for use in industrial electronics, telecommunications equipment, RF signal conditioning, and automated control systems requiring reliable high-frequency switching. Its durable construction and compact form factor enable versatile application in modern electronic assemblies.
Explore the TE Connectivity range for advanced and reliable relay solutions to meet demanding industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TE Connectivity HF3-52 PCB RF Relay supports a maximum coil frequency of 3 GHz, making it suitable for high-frequency applications.
This relay features a single pole double throw (SPDT) contact configuration, allowing for versatile switching applications.
The coil power consumption of this relay is 140mW, which helps optimize energy efficiency in circuit designs.
This model has compact dimensions measuring 14.6mm in length, 7.2mm in width, and 10mm in height, suitable for PCB mounting.
The contact current rating for the HF3-52 relay is 2A, making it suitable for moderate power applications.
It operates reliably across a temperature range from -55°C to 85°C, accommodating various environmental conditions.
The HF3-52 relay is designed for surface mount terminal type, facilitating easy PCB integration.
This relay features a low insertion loss of 0.35dB, contributing to better signal integrity in RF circuits.
The HF3-52 relay complies with RoHS and REACH environmental standards, ensuring safe and eco-friendly usage.
It provides an isolation level of 45dB, which is beneficial for maintaining signal integrity in RF applications.
The contacts of this relay are gold plated, ensuring low contact resistance and reliable switching performance.
The coil resistance of the HF3-52 relay is 1030Ω, which is a critical specification for its operation.
