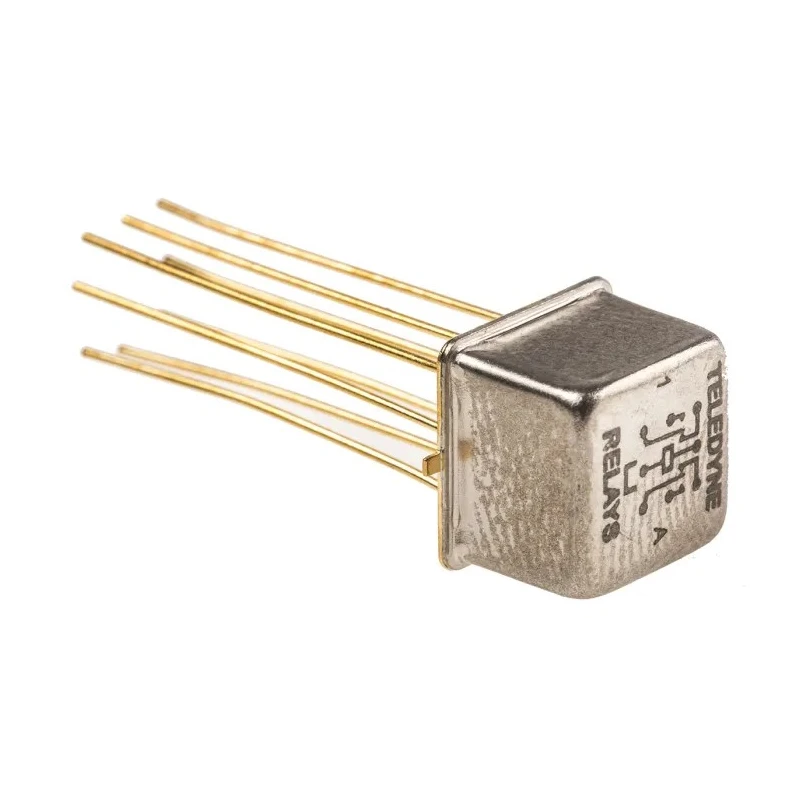

Teledyne Through Hole RF Relay, 5V DC Coil, DPDT, 64Ω Coil Resistance, 405mW Coil Power, 7.11mm Height, Gold Plated 172-5
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Teledyne |
| Height | 7.11mm |
| Length | 8.51mm |
| Model | 172-5 |
| Mount Type | Through Hole |
| Isolation | 35dB |
| Contact Material | Gold Plated |
| Series | 172 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -55°C |
| Terminal type | Through Hole |
| Contact Resistance | 150mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 64Ω |
| Coil Power | 405mW |
| Insertion Loss | 0.5dB |
| Teledyne Through Hole RF Relay, 6V dc Coil, DPDTBrand | Teledyne |
Key Features
- The relay supports operation between -55°C and 85°C temperature range.
- Coil resistance is 64Ω with coil power consumption at 405mW.
- Insertion loss is minimal at 0.5dB ensuring efficient signal transmission.
- The relay has a compact height of 7.11mm and length of 8.51mm for tight PCB spacing.
- It is hermetically sealed providing high reliability in challenging environments.
- Gold plated contact material offers enhanced conductivity and longevity.
- Designed for through hole mounting with a terminal type suitable for PCB through-hole technology.
- Ideal for telecommunications, test instruments, mobile communications, attenuators, and RF data switching applications.
Product Description
Teledyne 172-5 Through Hole RF Relay is an ultra-miniature, hermetically sealed DPDT armature relay designed for RF applications requiring outstanding switching performance from DC up to 2 GHz frequency. Featuring a 5V DC coil and low coil power of 405mW, it combines low coil resistance of 64Ω with minimal insertion loss of 0.5dB to deliver reliable signal switching.
This relay is designed with gold plated contacts to ensure excellent conductivity and durability, making it suitable for high-frequency telecommunications, laboratory instrumentation, and mobile communication systems. Its hermetic sealing enhances reliability and resistance to shock and vibration in demanding industrial environments.
The 172-5 relay's compact form factor with a height of 7.11mm and length of 8.51mm assists in dense PCB layouts where close spacing is required. It employs through hole mounting technology with grid spaced terminals that eliminate the need for spreader pads, facilitating easy PCB integration.
Operating across a wide temperature range of -55°C to 85°C, it boasts an isolation of 35dB and a low contact resistance of 150mΩ, ensuring signal integrity and stable operation under varying environmental conditions.
Hermetically sealed construction provides long-term reliability. High switching performance from DC to 2 GHz frequency range. Gold plated contact material reduces contact resistance and extends relay life. Low insertion loss ensures minimal signal degradation.
Compact dimensions for high-density electronic assemblies. Operates efficiently over a broad temperature range. Through hole terminal type for secure PCB mounting. Suitable for industrial, telecommunications, test instrumentation, and mobile communications applications.
This relay is manufactured under stringent RoHS compliance standards and made in the United States, ensuring quality and environmental adherence. Explore more high-performance relays and RF components in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Teledyne Through Hole RF Relay operates within a temperature range of -55°C to 85°C.
This relay has a coil resistance of 64Ω.
The coil power consumption for this relay is 405mW.
The insertion loss is minimal at 0.5dB, ensuring efficient signal transmission.
The relay has a compact height of 7.11mm and a length of 8.51mm, suitable for tight PCB spacing.
This model is designed for through hole mounting with grid spaced terminals.
The relay features a DPDT (Double Pole Double Throw) contact configuration.
The contacts are made of gold plated material, which enhances conductivity and longevity.
This relay has an isolation level of 35dB, ensuring signal integrity.
The contact resistance is 150mΩ, which helps maintain stable operation.
This relay is manufactured under RoHS compliance standards, ensuring environmental adherence.
It is suitable for telecommunications, test instruments, mobile communications, and RF data switching applications.
