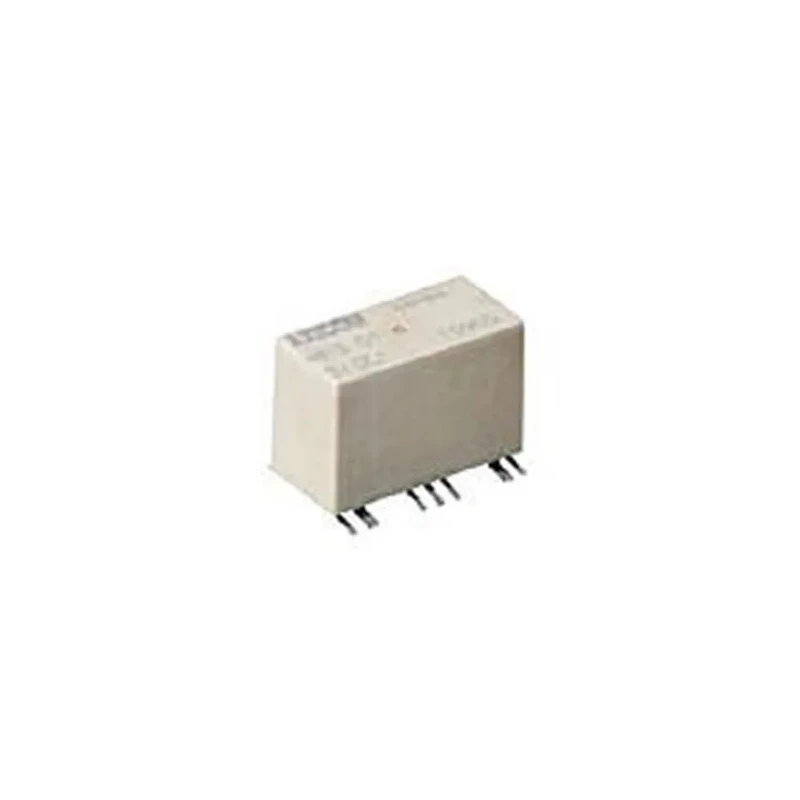

TE Connectivity PCB High Frequency Relay, 5V Coil, SPDT, 3 GHz Max Frequency 1462051-2
Specifications
| Country of Origin | Portugal |
|---|---|
| Frequency | Relay, 5V Coil, 3 GHz Max |
| Brand | TE Connectivity |
| Height | 10mm |
| Length | 14.6mm |
| Mount Type | PCB |
| Isolation | 45dB |
| Contact Material | Gold |
| Maximum Operating Temperature | 85°C |
| Coil Type | Non-Latching |
| Contact Configuration | SPDT |
| Terminal type | Gull Wing |
| Contact Resistance | 100mΩ |
| Standards/Approvals | REACH, RoHS |
| Coil Resistance | 178Ω |
| Coil Power | 140mW |
| Contact Current | 2A |
| Insertion Loss | 0.35dB |
| Maximum Coil Frequency | 3GHz |
Key Features
- High Frequency Relay designed for HF/RF applications.
- Operates with a 5V coil voltage and SPDT contacts.
- Supports maximum coil frequency of 3 GHz for reliable high-speed switching.
- Features gold contact material for excellent electrical performance.
- Mounts easily on PCB with Gull Wing terminals.
- Non-latching coil type ensures simple operation.
- Offers contact current rating up to 2A.
- Insertion loss of only 0.35dB for minimal signal attenuation.
Product Description
TE Connectivity 1462051-2 PCB High Frequency Relay combines superior design and reliability for high-frequency switching applications. Featuring a 5V coil voltage, this relay supports a single pole double throw (SPDT) contact configuration and achieves up to 3 GHz maximum coil frequency. Its compact form factor makes it ideal for PCB mounting in advanced electronic systems.
High Frequency Relay engineered for 50 Ohm systems. Non-latching coil type simplifies circuit integration and control. Gold contact material delivers low contact resistance (100mΩ) and high isolation (45dB). Insertion loss rated at 0.35dB ensures signal integrity in RF circuits.
Mounts using Gull Wing terminals for secure PCB installation. Contact current rated up to 2A covers a wide range of signal and switching applications. Maximum operating temperature of 85°C supports demanding industrial use cases.
This relay complies with REACH and RoHS standards, ensuring reliability and environmental responsibility. Its compact dimensions (14.6 mm length, 7.2 mm width, 10 mm height) allow flexible PCB layout. The HF3 Series relay is suitable for frequency ranges from DC to 3 GHz, making it perfect for RF, microwave, communication, and signal processing equipment. Typical uses include telecommunications, electronics manufacturing, laboratory equipment, and industrial automation systems.
Choose TE Connectivity's renowned reliability for applications where high frequency switching, excellent isolation, and low insertion loss are essential. Browse more industry-leading RF Relays and electronics solutions in the EnvMart catalog by TE Connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum coil frequency of 3 GHz, making it suitable for high-frequency applications.
It features a single pole double throw (SPDT) contact configuration, allowing for versatile switching applications.
This relay uses a non-latching coil type, which simplifies circuit integration and control.
The contact current rating is up to 2A, suitable for a variety of signal and switching applications.
The relay has compact dimensions of 14.6 mm in length, 7.2 mm in width, and 10 mm in height, facilitating flexible PCB layout.
It has an insertion loss rated at 0.35dB, ensuring minimal signal attenuation in RF circuits.
The maximum operating temperature is 85°C, supporting demanding industrial use cases.
The contacts are made from gold, providing excellent electrical performance and low contact resistance of 100mΩ.
It mounts easily on a PCB using Gull Wing terminals, ensuring secure installation.
This model complies with REACH and RoHS standards, ensuring reliability and environmental responsibility.
The coil resistance is 178Ω, which is important for determining the power requirements for operation.
Typical applications include telecommunications, electronics manufacturing, laboratory equipment, and industrial automation systems.
