| Country of Origin | Malaysia |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 2.2mm |
| Model | BAT54CW,115 |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | BAT54 |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600mA |
| Maximum Forward Voltage Vf | 800mV |
| Peak Reverse Recovery Time trr | 5ns |

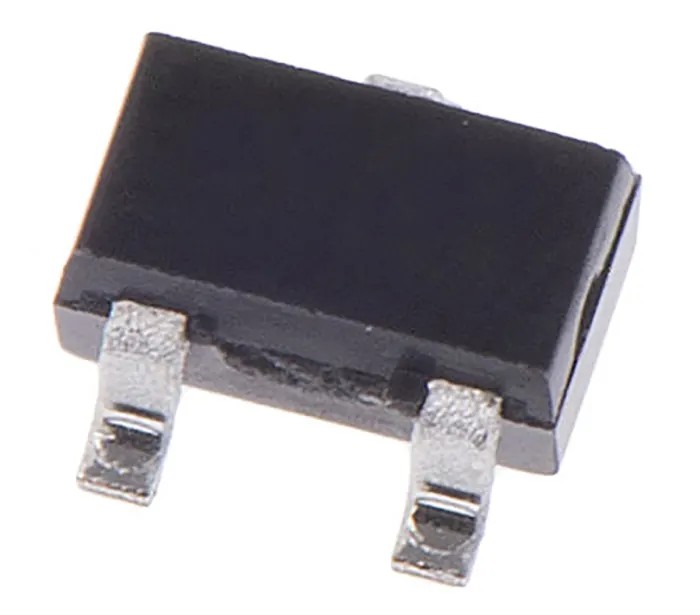

Nexperia BAT54CW,115 is a Schottky diode designed for surface mounting in compact SC-70 packages. It provides a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage rating of 30 V, making it suitable for various electronic applications requiring reliable diode performance.
This diode features a common cathode configuration with low forward voltage drop of typically 800 mV, which improves efficiency by reducing power loss in circuits. Its high surge current capability of 600 mA and a fast peak reverse recovery time of 5 ns enable it to effectively handle transient conditions and high-speed switching.
Constructed to meet automotive standards AEC-Q101, the BAT54CW,115 diode performs reliably across a wide operating temperature range from -65 °C up to 125 °C. Its ultra-small size - 2.2 mm length, 1.35 mm width, and 1 mm height - optimizes board space in modern electronic devices and automotive controls.
Typical applications include power rectification, voltage clamping, reverse polarity protection, and switching in power supplies, telecommunications, and automotive electronics. Maximum continuous forward current: 200 mA.
Peak reverse repetitive voltage: 30 V. Forward voltage drop typically around 800 mV. Surge current handling: 600 mA. Peak reverse recovery time 5 nanoseconds. Operating temperature range: -65 °C to 125 °C. Automotive standard compliance: AEC-Q101.
Compact SC-70 3-pin surface mount package.
Nexperia products are known for quality and reliability in the semiconductor industry. This diode is manufactured in Malaysia and suits industrial, automotive, telecommunications, and consumer electronics sectors. Browse more Schottky diodes and rectifiers in EnvMart’s Semiconductor category for compatible components and accessories.
