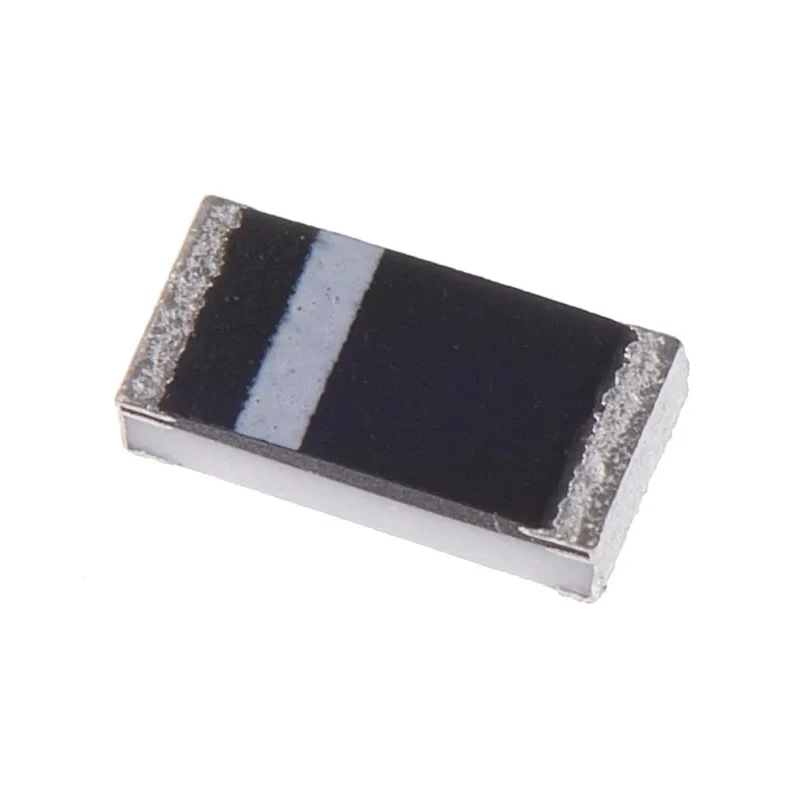

Taiwan Semiconductor Silicon Junction Switching Diode, Single, 0.15 A, 75 V, 500 mW TSOP Package TS4148 RXG

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor Silicon Junction Switching Diode, Single, 0.15 A, 75 V, 500 mW TSOP Package TS4148 RXG

Name: Taiwan Semiconductor Silicon Junction Switching Diode, Single, 0.15 A, 75 V, 500 mW TSOP Package TS4148 RXG
Brand: Taiwan Semiconductor
SKU: 124893
Price: 0.03 USD
Availability: InStock



Category Semiconductors Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	0.95mm
Length	3.4mm
Model	TS4148 RXG
Width	1.7mm
Mount Type	Surface
Maximum Operating Temperature	200°C
Package Type	TSOP
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	2A
Maximum Forward Voltage Vf	1V
Peak Reverse Recovery Time trr	5ns
Maximum Forward Current If	0.15A
Maximum Peak Reverse Repetitive Voltage Vrrm	75V
Taiwan Semi 100V 150mA, Silicon Junction Diode, 2-Pin SMD TS4148 RYBrand	Taiwan Semiconductor

Key Features

The diode features a TSOP surface mount package with 2 pins.
It has a maximum power dissipation of 500 mW suitable for small signal switching applications.
The maximum forward voltage drop is 1 V ensuring efficient switching performance.
Operating temperature ranges from -65°C to 200°C for versatile use in various environments.
Peak reverse recovery time is 5 ns enabling fast switching speeds.
Peak non-repetitive forward surge current is 2 A providing transient current capability.
The compact diode dimensions are length 3.4 mm, width 1.7 mm, and height 0.95 mm.
Designed for industrial, consumer electronics, and power supply circuits.

Product Description

Taiwan Semiconductor TS4148 RXG is a high-quality silicon junction switching diode designed for surface mount applications in TSOP package. It supports a maximum forward current of 0.15 A and peak reverse voltage rating of 75 V, making it ideal for small signal switching in power electronic circuits.

This diode features fast switching with a peak reverse recovery time of only 5 ns, which enables efficient operation in high-frequency switching power supplies, inverters, and signal conditioning circuits. The maximum forward voltage of 1 V ensures low power loss during conduction.

The diode is engineered to operate reliably over a wide temperature range from -65°C up to 200°C, suitable for demanding industrial and commercial electronic devices. The compact package with dimensions of 3.4 mm length, 1.7 mm width, and 0.95 mm height allows for dense PCB layouts in modern electronics.

The device provides a maximum power dissipation of 500 mW and a peak non-repetitive surge current rating of 2 A, allowing for transient load conditions without damage. Its two-pin TSOP surface mount configuration enables easy automated assembly on printed circuit boards.

Typical applications include switching diodes in power supplies, rectifiers, signal switching, and general purpose semiconductor circuits requiring fast, efficient diode performance.

The diode configuration is single silicon junction type. Mount type: Surface mount in TSOP package. Pin count: 2 pins for through standard PCB soldering. No automotive or other special standards approvals are applied. Explore the complete range of Taiwan Semiconductor switching diodes at EnvMart for your electronic component needs in industrial and commercial sectors.
