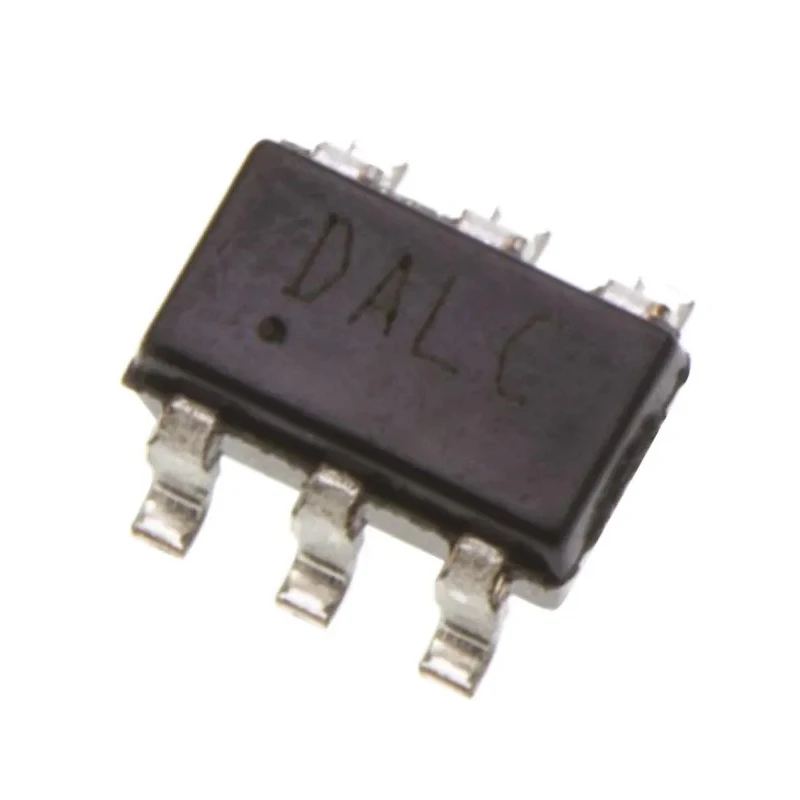

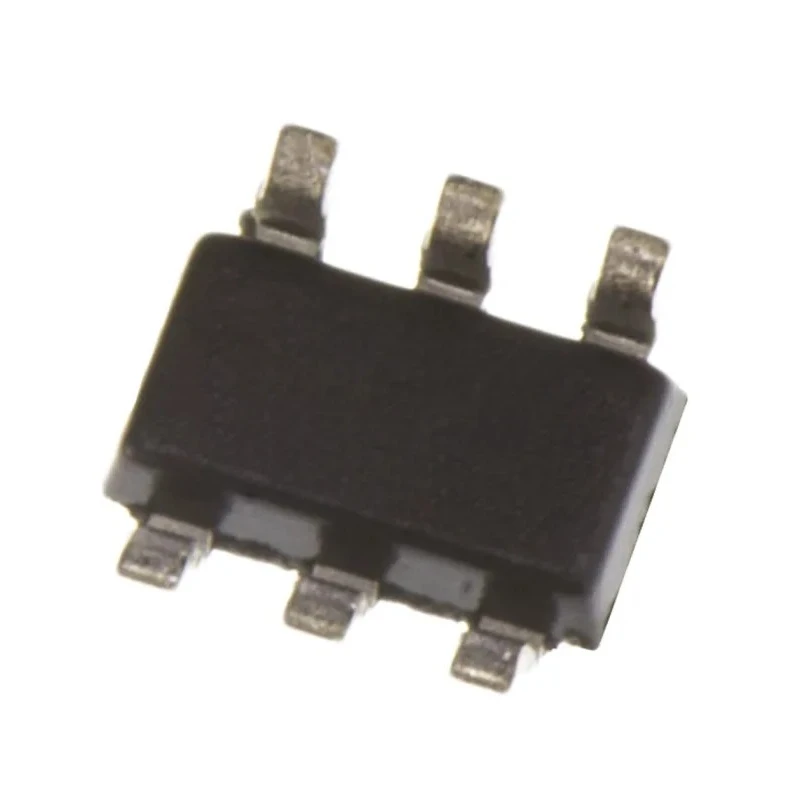

STMicroelectronics 4-Element TVS Diode Array, 6-Pin SOT-23 DALC208SC6
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3.05mm |
| Model | DALC208SC6 |
| Width | 1.75mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 6 |
| Number of Elements per Chip | 4 |
| Clamping Voltage VC | 167V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Complex Array |
| Minimum Breakdown Voltage Vbr | 9V |
| Maximum Reverse Leakage Current | 1μA |
| Electrostatic Discharge (ESD) prtotection for | DVI, HDMI, IEEE1394, USB, Ethernet & video lines |
Key Features
- Designed for surface mounting and packed in SOT-23 form factor.
- Offers ultra-low capacitance transient voltage suppression for 2 and 4 line ESD protection.
- Supports electrostatic discharge (ESD) protection compliant with IEC61000-4-2 level 4 standard.
- Operating temperature range from -55°C to 150°C suitable for harsh environments.
- Features a minimum breakdown voltage of 9V and clamping voltage of 167V.
- Includes 4 elements per chip, making it ideal for multi-line protection in data communication interfaces.
- Protects against ESD events on DVI, HDMI, IEEE1394, USB, Ethernet, and video lines.
- Meets automotive industry standard AEC-Q101 ensuring high reliability.
Product Description
STMicroelectronics DALC208SC6 is a 4-element TVS diode array designed for transient voltage suppression in sensitive electronic equipment, especially for data line protection applications.
This 6-pin SOT-23 surface mount device ensures robust electrostatic discharge (ESD) protection compliant with IEC61000-4-2 level 4, suitable for use in interfaces like DVI, HDMI, IEEE1394, USB, Ethernet, and video lines.
With a minimum breakdown voltage of 9V and clamping voltage of 167V, it provides high reliability transient suppression across multiple lines simultaneously. The product is rated for operation from -55°C to 150°C enabling use in demanding industrial and automotive environments, meeting AEC-Q101 automotive standards.
Designed for surface mounting in compact SOT-23 package. Four diode elements provide multi-line ESD protection for complex data buses. Low leakage current minimizes impact on normal signal transmission. Complies with industrial transient voltage suppression standards ensuring equipment longevity.
Compact size aids integration in PCB designs with limited board space. Used extensively in consumer electronics, industrial automation, HVAC, automotive electronics, and communications applications. Offers protection specifically tailored for sensitive power and data connection interfaces on modern devices.
Package and pin configuration optimized for automated insertion and soldering processes, enhancing manufacturing efficiency.
This STMicroelectronics DALC208SC6 model belongs to the TVS diode array family and is a dependable choice for safeguarding electronic circuits against voltage spikes and ESD damage.
Explore the TVS Diodes category in EnvMart for a wide range of semiconductor protective components suited for various industrial and commercial electronic applications.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a minimum breakdown voltage of 9V, providing effective transient voltage suppression.
The clamping voltage for the DALC208SC6 is 167V, which helps protect against voltage spikes.
The DALC208SC6 includes 4 elements per chip, allowing for multi-line ESD protection.
This unit is packaged in a SOT-23 form factor, designed for surface mounting.
It complies with IEC61000-4-2 level 4 standard for electrostatic discharge protection.
The DALC208SC6 meets the automotive industry standard AEC-Q101, ensuring high reliability.
It provides ESD protection for DVI, HDMI, IEEE1394, USB, Ethernet, and video lines.
The dimensions of this model are 3.05mm in length, 1.75mm in width, and 1.3mm in height.
This unit is designed for surface mounting, facilitating integration into PCB designs with limited space.
The diode configuration is a complex array, allowing for effective protection across multiple lines.
