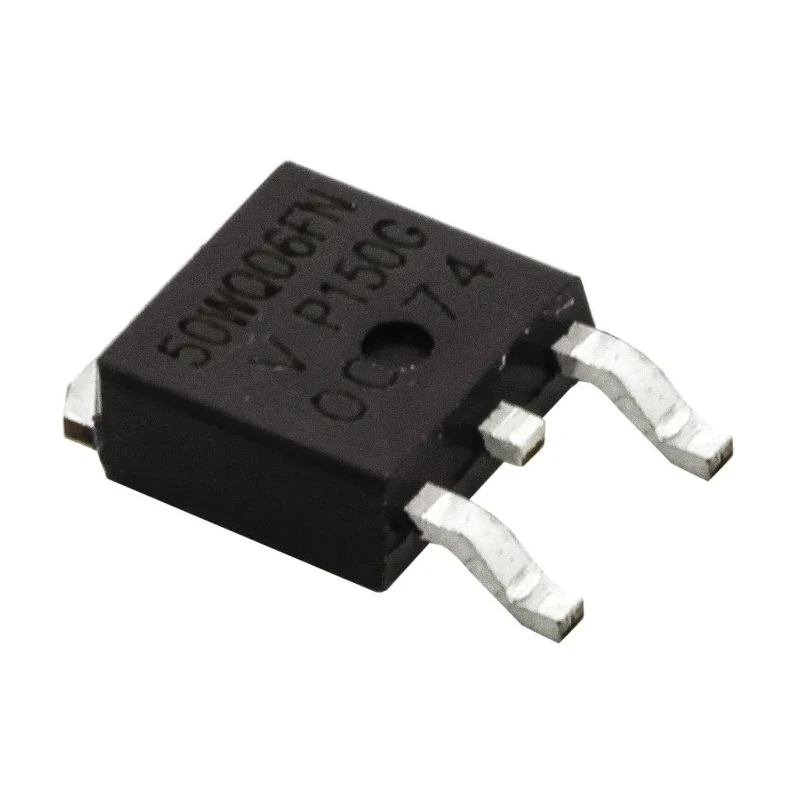

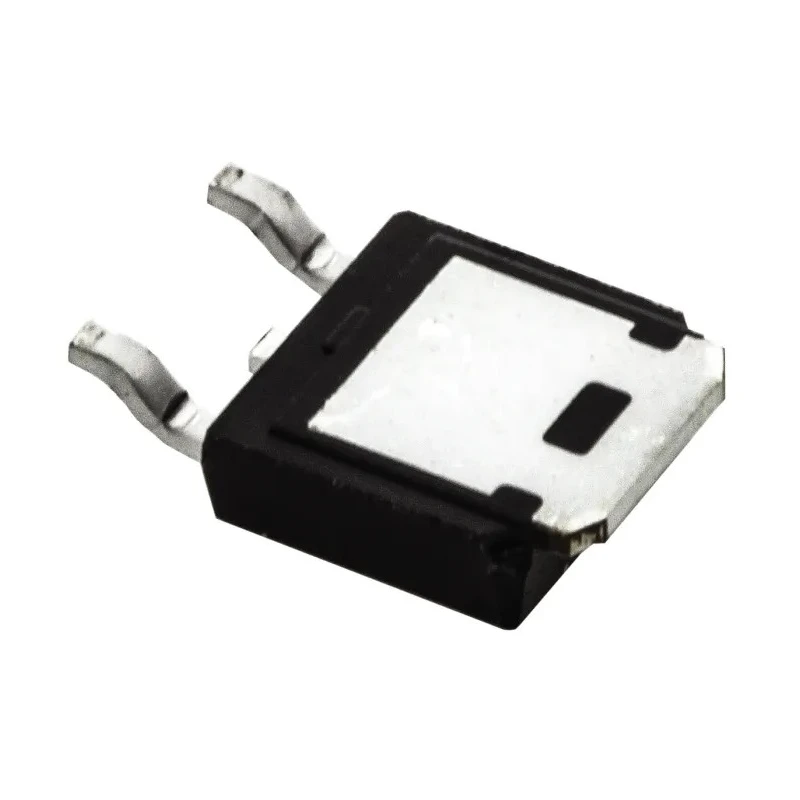

Vishay 60 V 5.5 A Schottky Diode 3-Pin DPAK Surface-Mount TO-252 Package VS-50WQ06FN-M3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.39mm |
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-50WQ06FN-M3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 5.5A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 320A |
| Maximum Forward Voltage Vf | 570mV |
| Vishay 60V 5.5A, Schottky Diode, 3-Pin DPAK VS-50WQ06FN-M3Brand | Vishay |
Key Features
- High-performance Schottky diode with low forward voltage drop and fast switching action.
- Maximum continuous forward current of 5.5 A and peak reverse repetitive voltage of 60 V.
- TO-252 (DPAK) surface-mount package suitable for compact electronic assemblies.
- Operates reliably within a temperature range from -40°C up to 150°C maximum.
- Features a single diode configuration with three pins for efficient rectification.
- Maximum forward voltage of 570 mV minimizing power loss in circuits.
- Designed for industrial, electronic component, and power circuit applications.
Product Description
Vishay VS-50WQ06FN-M3 is a high-performance Schottky diode designed for electronic power and switching applications. Featuring a 60 V peak reverse repetitive voltage and 5.5 A maximum continuous forward current, it ensures efficient low power loss with very fast switching capabilities.
The device is housed in a TO-252 (3-pin DPAK) surface-mount package, measuring 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height, which makes it suitable for compact PCB layouts. Its operating temperature ranges from -40°C to 150°C, providing robust performance in demanding industrial environments.
The Schottky diode’s low forward voltage of 570 mV reduces heat dissipation and improves circuit efficiency. It features a single diode configuration and supports peak non-repetitive forward surge currents up to 320 A for transient robustness. The maximum peak reverse current is 3 mA.
This component is ideal for use in power supplies, rectification circuits, voltage clamping, and fast switching in industrial, electronic manufacturing, and power conversion systems.
High-performance Schottky diode with low forward voltage drop and fast switching action. Peak reverse repetitive voltage of 60 V and continuous forward current rating of 5.5 A. TO-252 (DPAK) 3-pin surface mount package for compact electronics.
Wide operating temperature range from -40°C to 150°C. Supports peak non-repetitive surge current up to 320 A for transient conditions. Low forward voltage of 570 mV for efficient power management. Single diode configuration optimized for rectification and switching applications.
Explore the range of Vishay semiconductor components on EnvMart for quality industrial power and electronic solutions.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 5.5 A.
The maximum forward voltage drop is 570 mV, which helps minimize power loss in circuits.
The TO-252 package measures 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height.
It operates reliably within a temperature range from -40°C to 150°C.
The diode supports peak non-repetitive forward surge currents up to 320 A.
This model features a single diode configuration.
It is suitable for use in power supplies, rectification circuits, voltage clamping, and fast switching applications.
The DPAK package has 3 pins.
The country of origin for this product is India.
This diode uses surface mounting.
