Vishay Standard Recovery Switching Diode 1400 V 70 A 2-Pin DO-203AB VS-70HFR140

Vishay VS-70HFR140 is a high-performance standard recovery switching diode designed for demanding electronic and power applications. Featuring a peak reverse repetitive voltage (VRRM) of 1400 V and a maximum continuous forward current (IF) of 70 A, this diode is ideal for robust rectification and switching tasks in industrial and electronic systems.

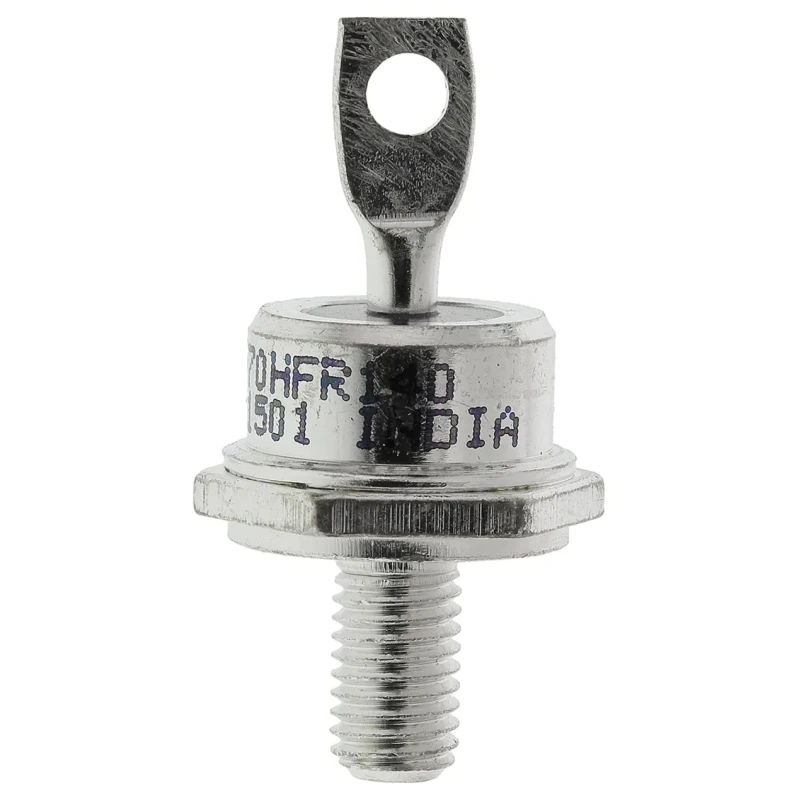

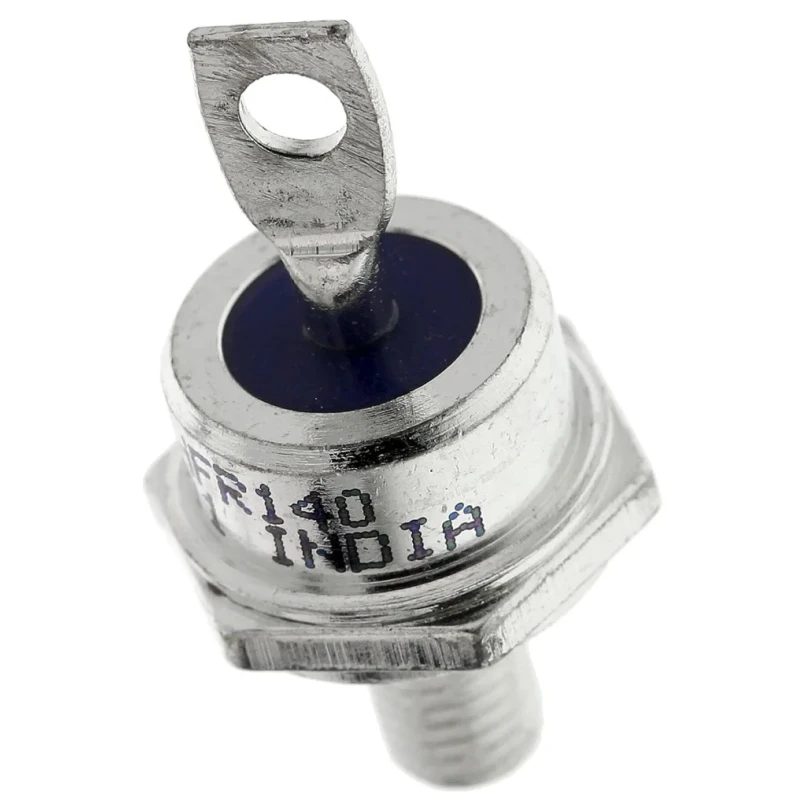

This switching diode is housed in a durable 2-pin DO-203AB package with stud anode configuration, providing reliable mounting and mechanical strength. Its compact physical dimensions - length of 20.02 mm, width of 17.35 mm, diameter of 17.4 mm, and height of 22.9 mm - enable flexible integration into various circuit layouts.

The diode operates efficiently over a wide temperature range from -65°C to 150°C, with a peak non-repetitive forward surge current rating of 1.3 kA ensuring capability during transient overload conditions. Its low maximum forward voltage of 1.46 V helps minimize conduction losses and improve circuit efficiency.

This diode is suitable for use in power electronics, rectifiers, power supplies, and switching operations across industrial automation, manufacturing, and electronic control systems. It meets rigorous performance standards though no explicit certifications are declared.

High voltage and current handling in a compact DO-203AB package. Wide operating temperature range suitable for harsh industrial environments. Rapid standard recovery characteristics for switching applications. Reliable diode configuration with stud anode for robust mechanical stability.

Low reverse and forward leakage currents ensuring efficient operation.

Overall, the Vishay VS-70HFR140 diode represents a dependable and efficient component for demanding semiconductor switching tasks, ideal for integration in power management and electronic circuitry. Browse more Vishay semiconductor products in the EnvMart catalog.
