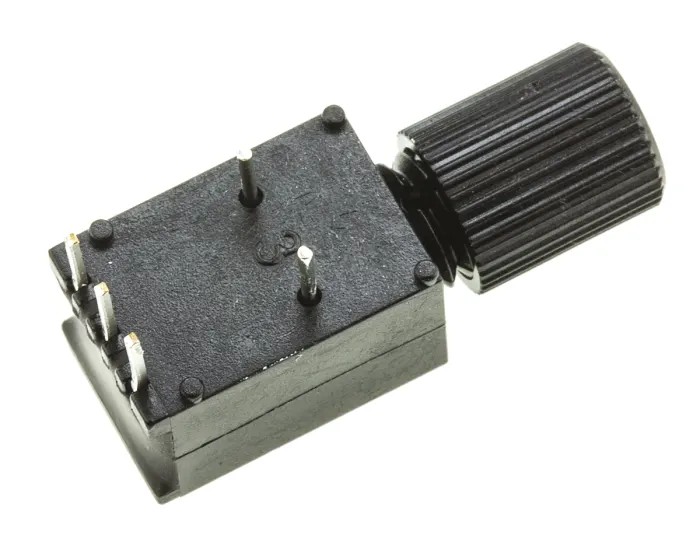

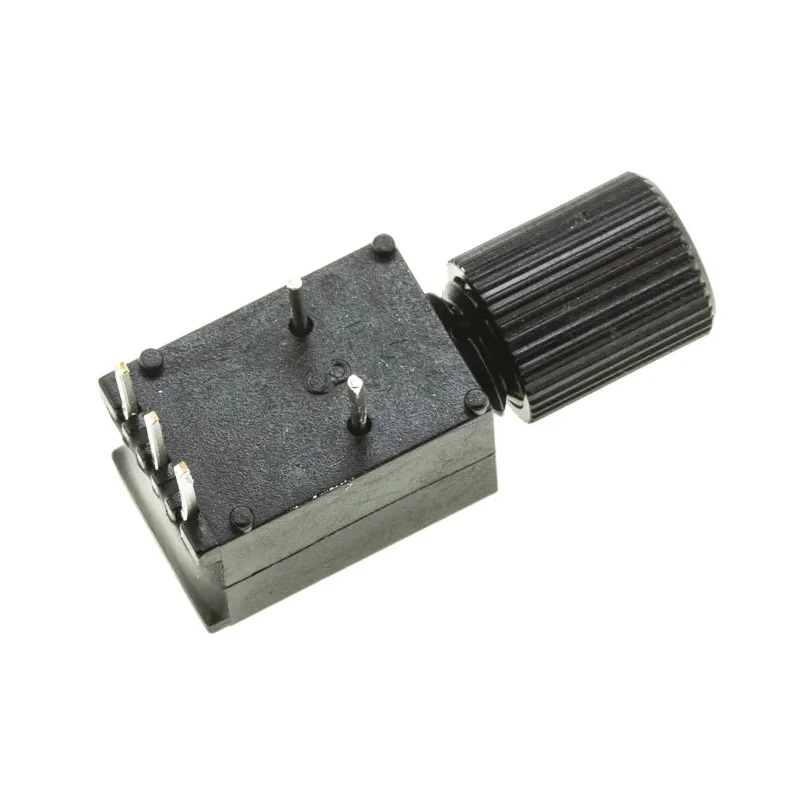

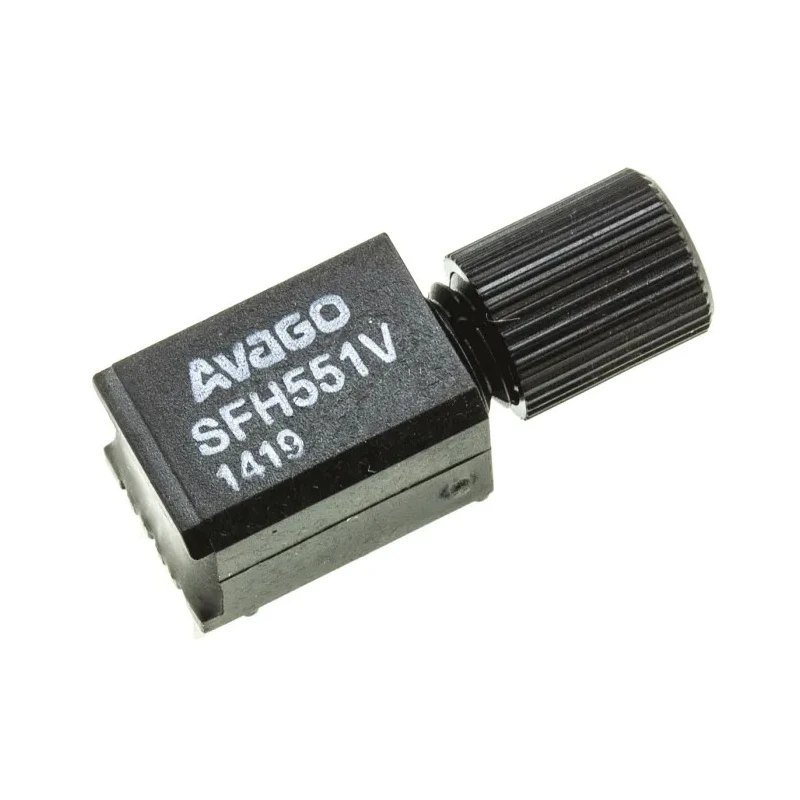

Broadcom Fibre Optic Receiver 5 MBd 700 nm Round Push In Collet Connector SP000063855

Free Delivery in India | Lowest Global Shipping Charges

Broadcom Fibre Optic Receiver 5 MBd 700 nm Round Push In Collet Connector SP000063855

Name: Broadcom Fibre Optic Receiver 5 MBd 700 nm Round Push In Collet Connector SP000063855
Brand: Broadcom
SKU: 213452
Price: 26.96 USD
Availability: InStock



Category Fibre Optic Receiver Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Height	9mm
Length	24.2mm
Model	SP000063855
Connector Type	Push In Collet
Width	9.2mm
Mount Type	Through Hole
Series	SFH
Number of Pins	5
Typical Rise Time	14ns
Typical Fall Time	4ns
Maximum Data Rate	5MBd
Output Signal Type	TTL
Connector Shape	Round
Wavelength of Peak Sensitivity	700nm

Key Features

Features a round connector with push-in collet type for secure fibre attachment.
Designed for through-hole mounting to ensure stable PCB installation.
Converts optical signals into TTL-compatible digital electrical outputs.
Offers typical rise time of 14ns and fall time of 4ns for rapid signal processing.
Equipped with a five-pin configuration for straightforward electrical connectivity.
Compact dimensions with 24.2 mm length and low 9 mm height for constrained spaces.
Optimized for near-red wavelength applications at 700 nm.
Suitable for inline optical-to-digital sensor modules and automation control signalling.

Product Description

Broadcom SP000063855 Fibre Optic Receiver is a high-performance component designed for converting optical signals into TTL electrical outputs at a maximum data rate of 5 MBd. Its peak sensitivity at 700 nm wavelength makes it suitable for near-red light detection applications. This device features a round push-in collet connector ensuring secure fibre alignment and reliable signal transmission.

The receiver's compact 24.2 mm length and low-profile 9 mm height allow installation in space-constrained environments, making it ideal for PCB mounting with a through-hole configuration. The typical rise time of 14 ns and fall time of 4 ns facilitate rapid and clean signal processing, suitable for automation systems and industrial control signalling.

Equipped with a five-pin electrical interface, the Broadcom SP000063855 supports straightforward connectivity and integration into electronic assemblies requiring optical-to-digital interfacing. Its TTL output signal type simplifies digital system compatibility.

This fibre optic receiver is well suited for inline optical sensor modules, short-range serial communication links, and detection applications within equipment panels. The device complies with standard industrial needs for moderate-speed optical data transmission and robust mechanical mounting solutions.

Features a round push-in collet connector for reliable fibre attachment. Through-hole mount type ensures secure PCB installation. TTL output signal compatible with digital circuits. Peak sensitivity wavelength optimized at 700 nm near-red spectrum.

Maximum data rate capability of 5 MBd for moderate-speed links. Compact dimensions suitable for low-profile equipment installation. Typical rise and fall times of 14 ns and 4 ns respectively for fast signal acquisition and clearance.

Five-pin configuration supports robust electrical connections. Ideal for industrial automation, electronic assemblies, and optical sensor modules.

This product belongs to the Fibre Optic Receiver category and is essential for various industrial, laboratory, and electronic applications in automation and control. Browse the EnvMart catalogue for Broadcom components and other advanced optoelectronic devices.
