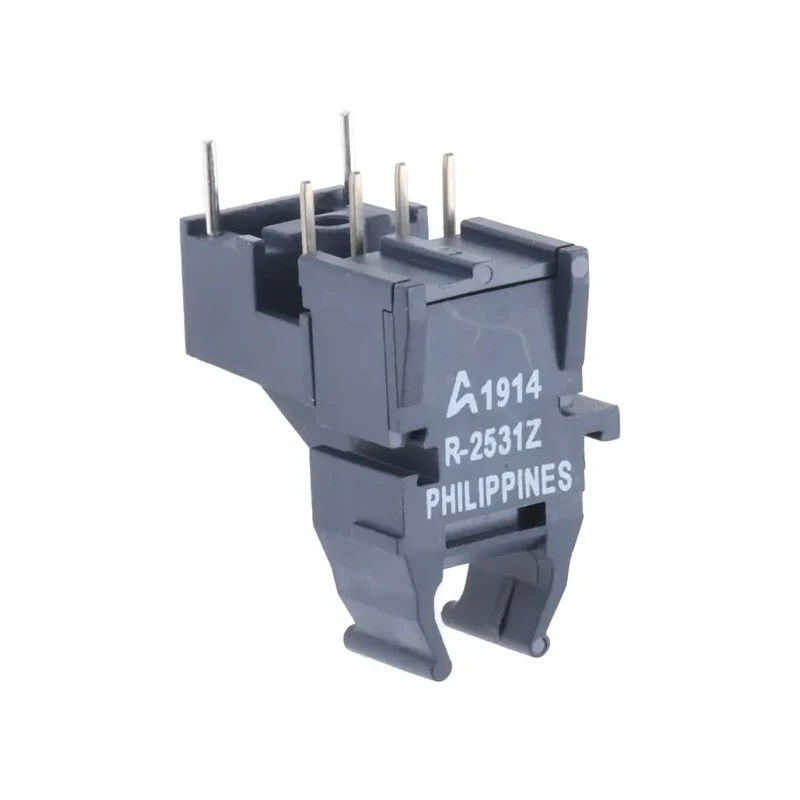

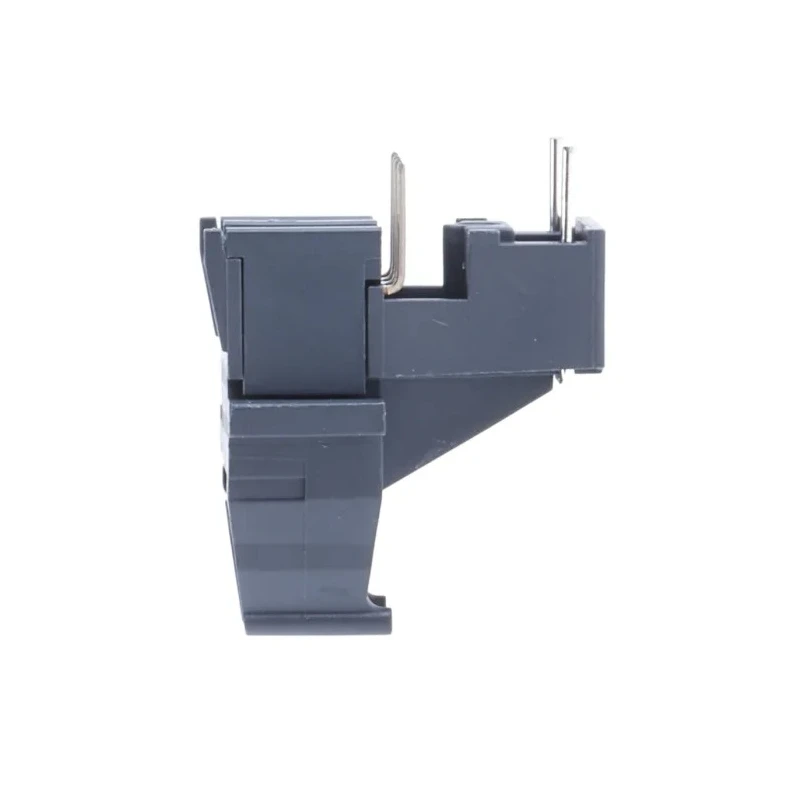

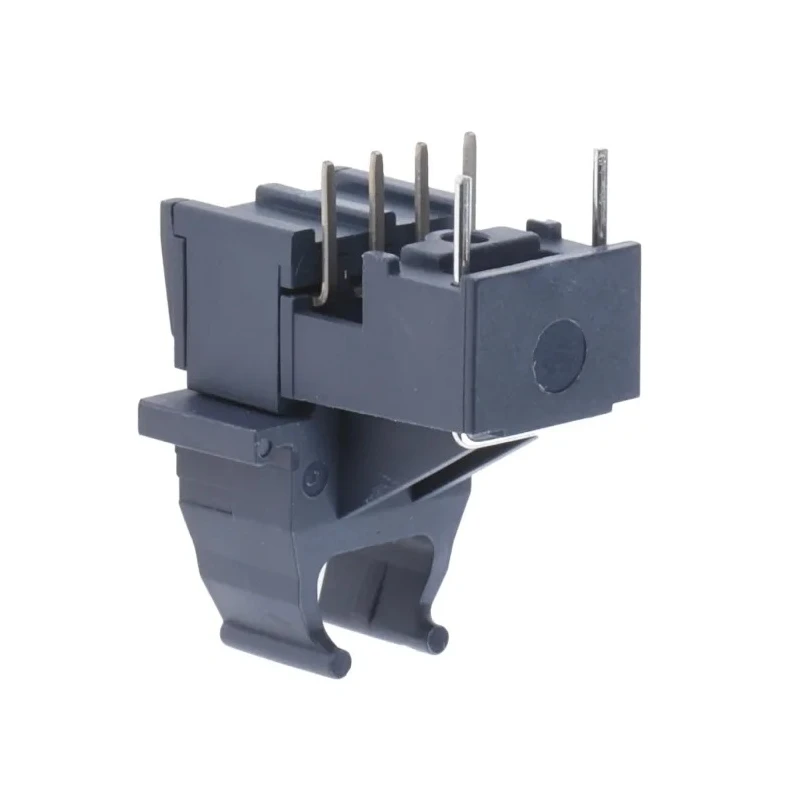

Broadcom 5 MBd 660 nm Fibre Optic Receiver, Round HFBR-2531Z

Broadcom HFBR-2531Z is a 5 MBd 660 nm wavelength fibre optic receiver with a round connector designed for through-hole mounting. This component offers enhanced digital link performance with a maximum data rate of 5 MBd and is part of the HFBR series, ideal for various industrial and electronic applications.

The receiver incorporates a monolithic DC coupled digital IC with an open collector Schottky output transistor, delivering TTL output signal compatibility. Its quick response is characterized by a typical rise time of 13 ns and a fall time of 10 ns. The HFBR-2531Z features 6 pins and a round connector shape, facilitating easy connectivity with simplex, duplex, and latching connectors.

Designed for low current consumption, this device operates at a peak supply current of just 6 mA and supports extended distance links up to 120 meters at 40 kBd. Its robust design includes flame retardant materials and high noise immunity, making it suitable for motor controllers, local area networks, data communications, audio and video equipment requiring noise immune communications, and other industrial uses.

The compact and durable physical dimensions of 18.3 mm length, 18.8 mm height, and 12.2 mm width support versatile mounting options for diverse industrial installations. Manufactured in the Philippines, this new fibre optic receiver assures quality and consistency.

Supports maximum data rate of 5 MBd for enhanced digital links up to dc-5 MBd. Features a 660 nm LED for peak sensitivity and visibility. Typical rise time of 13 ns and fall time of 10 ns for fast digital response. 6-pin round connector designed for through-hole mount applications.

Low peak supply current of 6 mA for energy efficient operation. Compatible with standard TTL circuitry and open collector Schottky output transistor. Flame retardant construction with high noise immunity. Extended link distance capability up to 120 meters at 40 kBd.

Compact dimensions enable use in space-constrained electronic assemblies. Manufactured in the Philippines ensuring high production standards.

This Broadcom HFBR-2531Z fibre optic receiver is an excellent choice for industrial, laboratory, communication, and electronic manufacturing environments requiring reliable, low noise, and efficient digital optical communication components. Browse the Fibre Optic Receiver category on EnvMart for additional compatible products and accessories.
