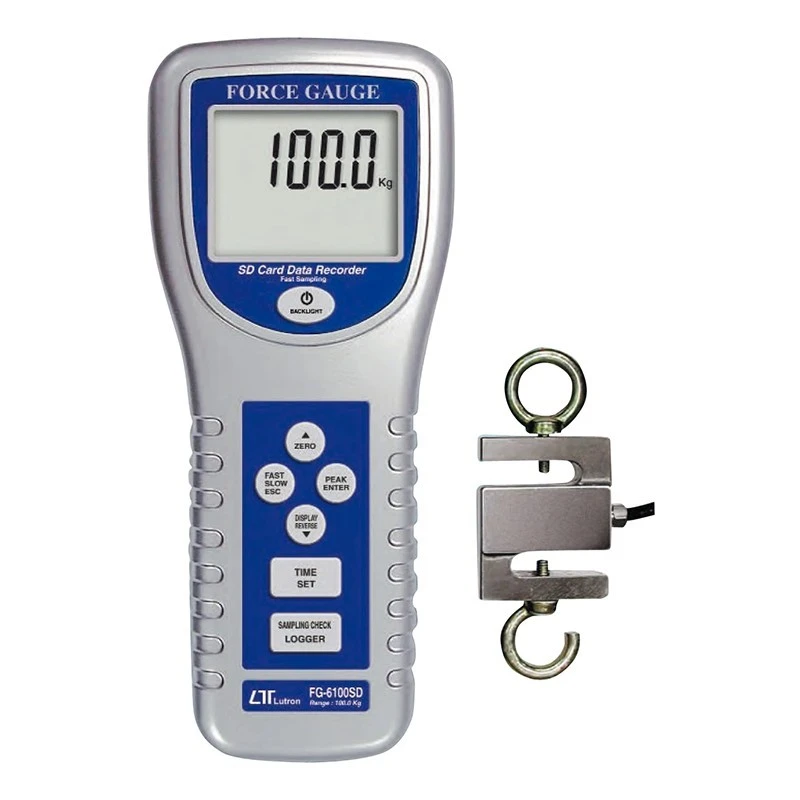

Lutron FG-6100SD Force Gauge
Specifications
| Resolution | 0.02 Kg / 0.02 lb / 0.2 Newton |
|---|---|
| Accuracy | ± (0.5% + 0.1 Kg) / within 23 ± 5 ℃ |
| Operating Humidity | Less than 80% RH |
| Over Range Indicator | Displays "- - - -" |
| Display | LCD / 5 digits / 16 mm digit size / backlight |
| Capacity | 100 Kg / 220.5 lb / 980.6 Newton |
| Brand | LUTRON |
| Power Supply | 6 x AA batteries or 9V adapter (optional) |
| Operating Temperature | 0 to 50 ℃ |
| Dimensions | 215 x 90 x 45 mm |
| Function | Tension & Compression / Normal force / Peak hold |
| Model | FG-6100SD |
| Sensor Type | S type load cell |
| Weight | 650 g (with batteries) |
| Optional Accessories | SD card / test stand (FS-1001) / wedge grip (WG-01) / RS-232 cable (UPCB-02) / USB cable (USB-01) / data logging software (SW-U801-WIN) / EXCEL data acquisition software (SW-E802) |
| Data output | RS-232/USB PC computer interface |
| Memory Card | SD memory card / 1 GB to 16 GB |
| Data Record Mode | Normal mode or Peak hold mode |
| Peak Hold | Freezes peak load value |
| Circuit | Exclusive microprocessor LSI-circuit |
| Advanced Settings | SD card format / clock time / sampling time (normal/peak) / auto power off / unit setting / beep sound / decimal point |
| Accessories Included | Operating manual / 100 Kg sensor with hooks and 2 meter cable / carrying case |
| Min. Display | 0.15 Kg / 0.35 lb / 1.4 Newton |
| Update Time | Fast - Approx. 0.2 second / Slow - Approx. 0.6 second |
| Overload Capacity | Max. 150 Kg |
| Full Scale Deflection | Less than 1 mm |
| Normal Data Record Time | Auto - 1 sec to 8 hour 59 min 59 sec |
| Peak Hold Record Time | 10 mS to 500 mS |
| Memory Capacity (Normal) | 1 GB to 16 GB (SD card) |
| Memory Capacity (Peak Hold) | 1000 data points (max) |
| Data Error Rate | 0.1% of total saved data (max) |
| Zero/Tare Control | Max. full Capacity |
| Power Consumption (Normal) | Approx. DC 7 mA (w/o SD card / backlight off) |
| Power Consumption (SD Save) | Approx. DC 38 mA (backlight off) |
| Display Direction | Positive or Reverse (selectable) |
| Zero Button | Operates for normal force and peak hold |
| Unit Select | Kg / lb / Newton |
| Mounting Holes | Provided on back case |
Key Features
- 100 Kg capacity
- SD card real-time recording
- 10 ms sampling time recorder
- Tension and compression measurement
- Multiple display units (Kg, lb, Newton)
- Peak hold function
- RS-232/USB computer interface
Product Description
The Lutron FG-6100SD is a 100 Kg force gauge with SD card real-time recording and a 10 ms sampling time recorder. It features tension and compression capabilities, multiple display units, and peak hold functionality. It's designed for various force measurement applications.
Available on EnvMart, these Force Gauges are engineered for precise measurement of tension and compression forces in various applications. Lutron Force Gauges are trusted for their accuracy, durability, and ease of use, making them ideal for quality control, research, and industrial testing.
