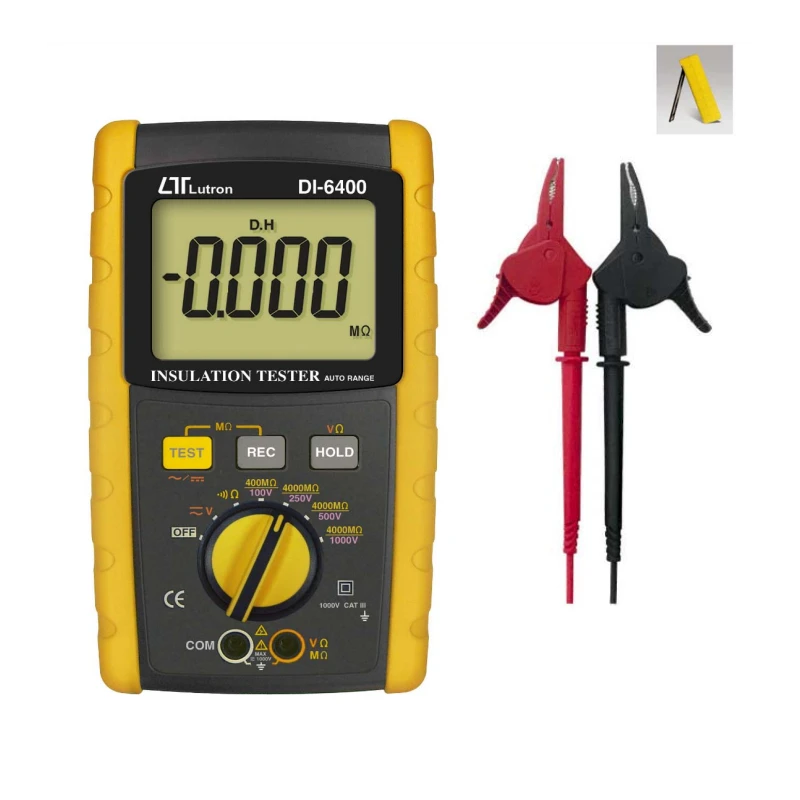

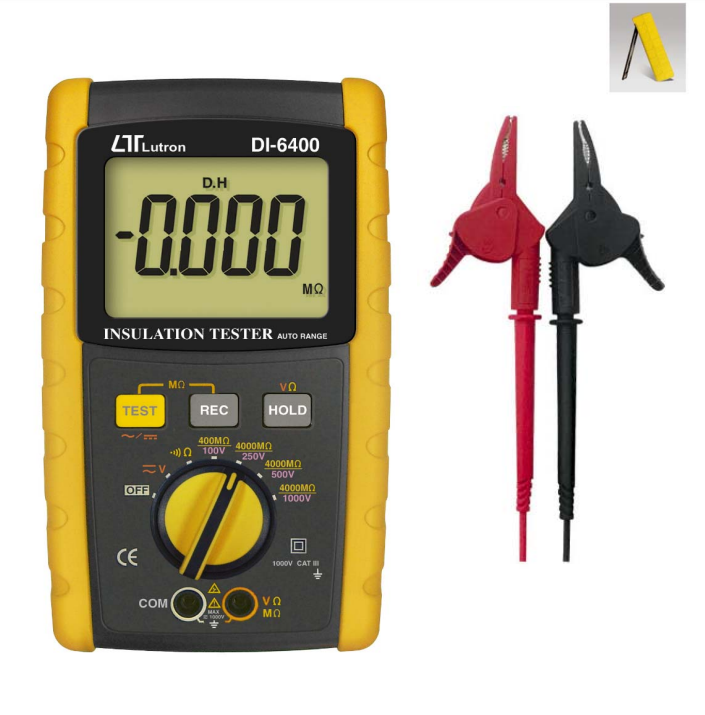

Lutron Insulation Tester DI 6400
Specifications
| Country of Origin | India |
|---|---|
| Operating Humidity | Less Than 80%RH |
| Power Consumption | Varies by range(Approx.18mA to112mA) |
| Display | LCD / 27mm(1.06") digit height / max indication 610.0(V) / 4200(MΩ) / 4200(Ω) |
| Brand | LUTRON |
| Power Supply | 1.5V AA batteries(UM-3)x8 |
| Operating Temperature | 0 to 50℃(32 to122℉) |
| Dimensions | 225x125x64mm(8.86x4.92x2.52inches) |
| Model | DI 6400 |
| Weight | 735g(1.62lb) without battery |
| Sampling Time | Approximately0.4 seconds / max.approx.4.0seconds for 4000MΩ range |
Key Features
- Insulation resistance up to 4000 MΩ @ 1000 V
- Also measures ACV/DCV/Ω; precise low-ohm ranges for windings/relays
- Short-circuit current > 2.55 mA for robust insulation tests
- Large 27 mm (1.06") LCD
- Rugged housing with front protective cover
- Optional: UPCB-02 RS232, USB-01, SW-U801-WIN
Product Description
Lutron Insulation Tester DI 6400 is a digital insulation tester engineered for accurate and reliable measurement of insulation resistance. With a compact and durable design, it is ideal for electrical maintenance, troubleshooting, and quality assurance. Widely used in industrial environments, laboratories, and production lines, the DI 6400 ensures consistent performance. Easy to use and built to last, it is a trusted tool for technicians, engineers, and safety inspectors.
Available on EnvMart, these Insulation Testers are designed to accurately measure insulation resistance in electrical systems, ensuring safety and performance. Lutron Insulation Testers are known for their high precision, rugged design, and dependable results for electricians and maintenance professionals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Lutron DI 6400 can measure insulation resistance up to 4000 MΩ at 1000 V.
The Lutron DI 6400 measures both AC and DC voltage (ACV/DCV) as well as resistance in ohms (Ω).
The Lutron DI 6400 requires eight 1.5V AA batteries (UM-3) for power supply.
The operating temperature range for the Lutron DI 6400 is from 0 to 50℃ (32 to 122℉).
The Lutron DI 6400 features a 27 mm (1.06") LCD display with a maximum indication of 610.0 V and 4200 MΩ.
The weight of the Lutron DI 6400 without batteries is 735 g (1.62 lb).
The operating humidity limit for the Lutron DI 6400 is less than 80% relative humidity (RH).
The sampling time for the Lutron DI 6400 is approximately 0.4 seconds, with a maximum of approximately 4.0 seconds for the 4000 MΩ range.
The dimensions of the Lutron DI 6400 are 225 x 125 x 64 mm (8.86 x 4.92 x 2.52 inches).
The short-circuit current for the Lutron DI 6400 is greater than 2.55 mA, which is suitable for robust insulation tests.
Optional accessories for the Lutron DI 6400 include the UPCB-02 RS232 interface, USB-01, and SW-U801-WIN software.
The Lutron DI 6400 is manufactured in India.
