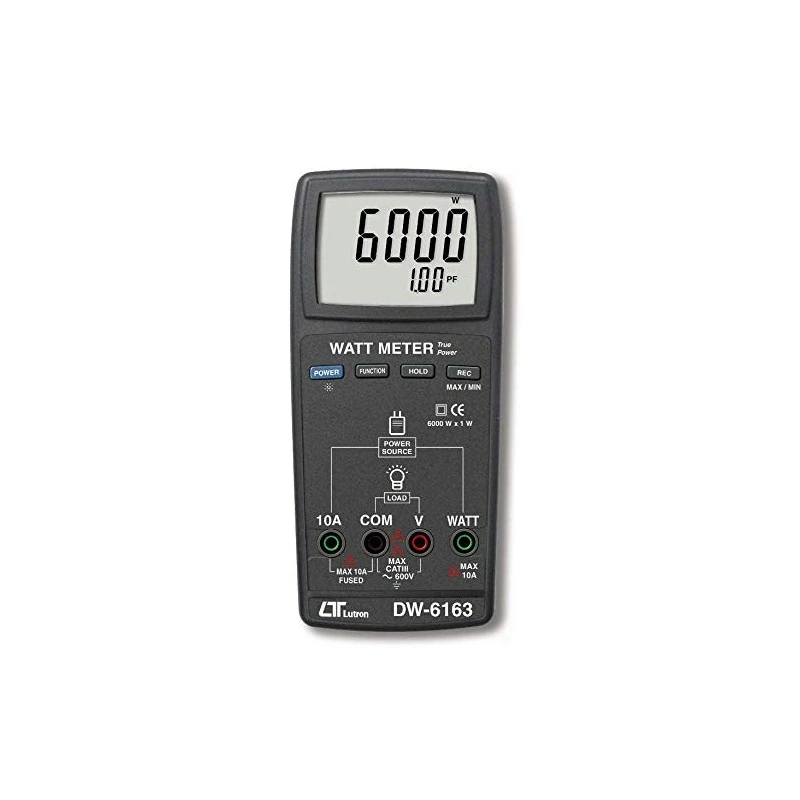

Lutron Watt Meter 6000W x 1W PF ACV ACA Single Phase DW 6163

Name: Lutron Watt Meter 6000W x 1W PF ACV ACA Single Phase DW 6163
Brand: Lutron
SKU: ADQBN
Price: 166.22 USD
Availability: InStock



SKU ADQBN Category Energy Meter Brand Lutron Condition New

Specifications

Country of Origin	India
Resolution	0.01 0.01A 0.1V 1W
Accuracy	±(0.3%+0.03A) ±(0.3%+0.3V) ±(1%+2d) ±(1%+5W)
Operating Humidity	Less Than 80%RH
Power Consumption	Approx.DC 10mA
Display	Large LCD display with a maximum reading of9999/dual value display with backlight
Brand	LUTRON
Power Supply	DC 9V battery(006P/MN1604(PP3)or equivalent)/optional AC to DC 9V adapter
Operating Temperature	0 to 50℃(32 to122℉)
Dimensions	190x88x40mm(7.5x3.5x1.6inches)
Model	DW 6163
Weight	398g(0.88lb)
Sampling Time	Approx.1second
Data output	RS232/USB PC computer interface
Data hold	Freezes the display reading
Memory Recall	Maximum and minimum value
Digit Size	21.8x8.5mm
Watt(True Power)	0 to 6000W
AC Voltage(ACV)	0 to 600V
AC Current(ACA)	0 to 10.00A
Power Factor(PF)	0.01 to 1.00

Key Features

True power up to 6000 W with 1 W resolution
True RMS AC voltage/current
Power factor 0.01–1.00 (0.01 resolution)
Data hold; max/min record
RS232/USB interface for PC
Optional: 9 V adapter, UPCB-02, USB-01, SW-U801-WIN, SW-E802, DL-9602SD SD logger, HS-03 holster

Product Description

Lutron Watt Meter DW 6163 is a high-performance single-phase watt meter with a 6000W capacity and 1W resolution. Designed for accurate and reliable measurement of power factor, AC voltage, and AC current, it is ideal for electrical testing, industrial maintenance, and laboratory applications. Compact and professional in design, it ensures dependable results for technicians, engineers, and quality inspectors, supporting safe and efficient energy monitoring.

Available on EnvMart, these Energy Meters are designed to measure power consumption and efficiency in electrical systems for industrial and commercial use. Lutron Energy Meters provide accurate readings, durable construction, and reliable performance for effective energy monitoring and management.

Lutron Watt Meter 6000W x 1W PF ACV ACA Single Phase DW 6163

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Lutron Watt Meter DW 6163 has a maximum power capacity of 6000W.

The resolution for measuring power with the Lutron DW 6163 is 1W.

The accuracy of the Lutron Watt Meter DW 6163 is ±(0.3%+0.03A) for current, ±(0.3%+0.3V) for voltage, ±(1%+2d) for power factor, and ±(1%+5W) for true power.

The operating temperature range for the Lutron Watt Meter DW 6163 is 0 to 50℃ (32 to 122℉).

The Lutron Watt Meter DW 6163 supports RS232 and USB interfaces for PC data output.

The Lutron Watt Meter DW 6163 can measure AC voltage up to 600V.

The Lutron Watt Meter DW 6163 can measure AC current up to 10.00A.

The Lutron Watt Meter DW 6163 features a large LCD display with a maximum reading of 9999 and a dual value display with backlight.

The weight of the Lutron Watt Meter DW 6163 is 398g (0.88lb).

The Lutron Watt Meter DW 6163 can be powered by a DC 9V battery or an optional AC to DC 9V adapter.

The Lutron Watt Meter DW 6163 includes data hold to freeze display readings and memory recall for maximum and minimum values.

The Lutron Watt Meter DW 6163 is manufactured in India.
