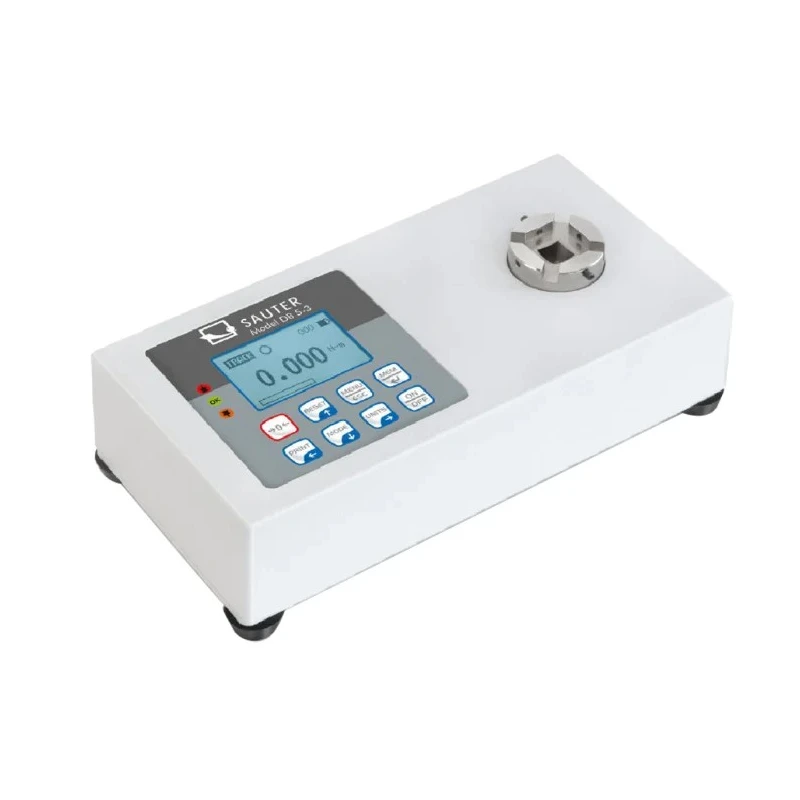

Sauter DB 5-3 Force Gauge 1000 Hz Sampling Rate, Resolution 0.001 N, Accuracy ±0.005 % DB 5-3

The Sauter DB 5-3 Force Gauge is a precision instrument designed to measure torque with high accuracy of ±0.005 % at a fine resolution of 0.001 N. Equipped with a rapid 1000 Hz sampling rate, it excels at dynamic testing of electric screwdrivers, including cordless types, making it ideal for industrial use, quality control, and laboratory testing.

Built with a durable metal housing, this force gauge withstands harsh working conditions and features rubber feet with anti-slip properties for secure placement. It is equipped with a clear back-lit LCD graphic display, enabling easy reading of measurements even in low light environments.

The device saves up to 500 measurements internally, which can be transferred to a PC via USB or RS232 interfaces for detailed analysis. It supports torque measurements in feet-pounds (ft/lb) and inch-pounds (in/lb), suitable for a variety of industrial applications including manufacturing and assembly processes.

Additional features include a rotary sensor for dynamic testing, peak hold mode to capture torque peaks, and programmable max/min limits with both audible and optical signals to alert users of threshold breaches. The force gauge operates efficiently on a rechargeable battery providing up to 18 hours of operation, with an auto-off function to conserve power.

Compact and lightweight, the Sauter DB 5-3 measures 200 mm in length, 100 mm in width, and 50 mm in height, weighing 3 kg, enabling easy portability across various testing sites. It operates reliably within temperature ranges of 15°C to 35°C and complies with ISO standards for quality and safety.

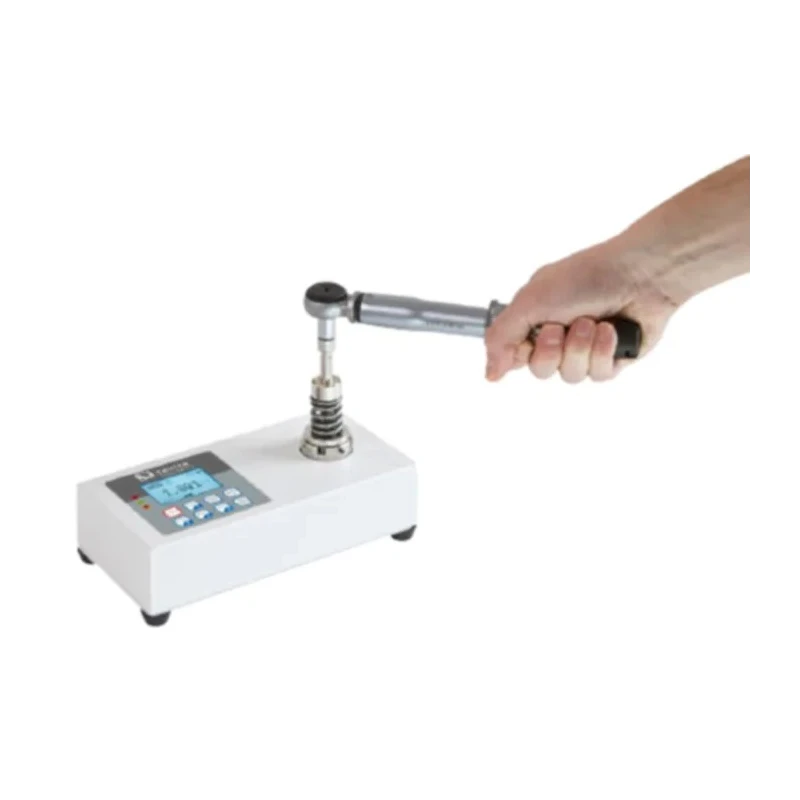

This force gauge is an excellent choice for industrial, laboratory, construction, and manufacturing environments requiring precise torque measurement and reliable performance. It supports rigorous testing of torque wrenches, screwdrivers, and other tools used in assembly lines.

Measures torque with an accuracy of ±0.005 % ensuring precise results. Supports units measurements in ft/lb and in/lb for versatile applications. Features a back-lit LCD display for clear visibility in various lighting conditions.

Operates on a rechargeable battery with up to 18 hours of continuous use. Includes USB and RS 232 interfaces for seamless data transfer to PCs. Robust metal housing designed for durability in harsh environments. Equipped with an internal memory storing up to 500 measurements.

Offers programmable Max./Min. limits with audible and optical signals. Lightweight design with 3 kg gross weight and compact dimensions for easy handling. Complies with ISO standards and operates in temperatures from 15°C to 35°C.

Explore more Sauter Force Gauges and precision measurement instruments in the EnvMart industrial tools category.
