Mecmesin Force Gauge with RS232 Digital Output, 1000 Hz Sampling Rate, Accuracy ±0.25%, Resolution 0.05 N 853-412

The Mecmesin 853-412 Force Gauge is a sophisticated handheld and jig-mounted instrument designed for accurate tensile and compression force measurement in industrial environments. It features a robust blue aluminium case and a large backlit display for clear data reading.

This device operates at a 1000 Hz sampling rate and offers high resolution at 0.05 N with an overall accuracy of ±0.25%, making it suitable for quality control, laboratory, manufacturing, and testing applications.

The gauge supports multiple unit conversions including Newtons, kilograms-force, grams-force, ounces-force, and pounds-force, enhancing its versatility for various force measurement tasks.

Connectivity options include RS232, analogue, and Mitutoyo data outputs, facilitating integration with data collection systems. The unit also provides audible and visual overload warnings with a trend bar for real-time measurement monitoring.

Designed for ergonomic handheld use, the display can be inverted for horizontal applications. The instrument features two rear M5 x 0.8 tapped holes and an internal M6 x 1.0 stud thread for mounting in test rigs or manufacturing equipment.

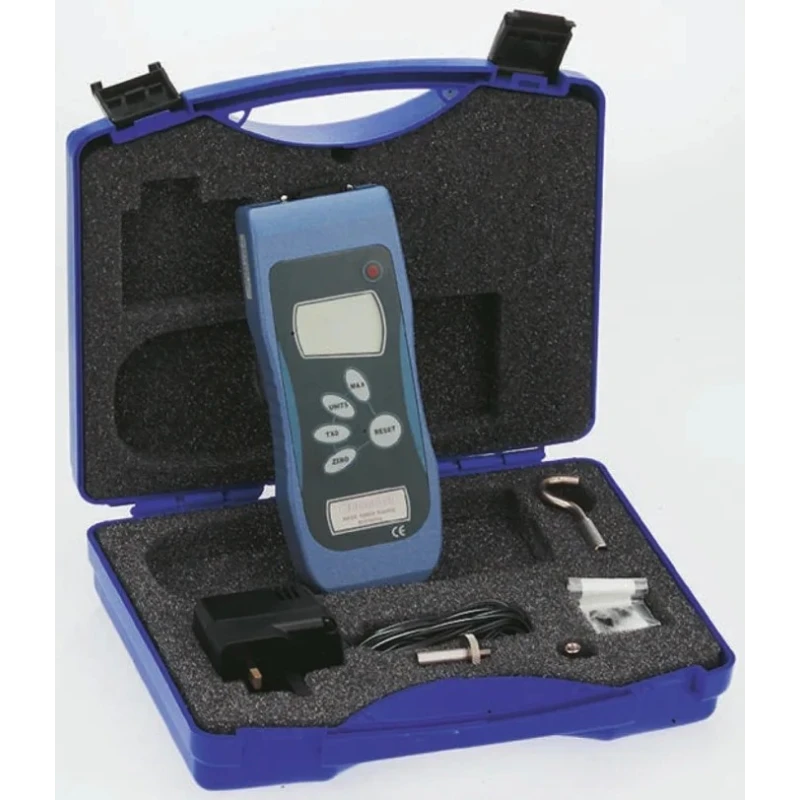

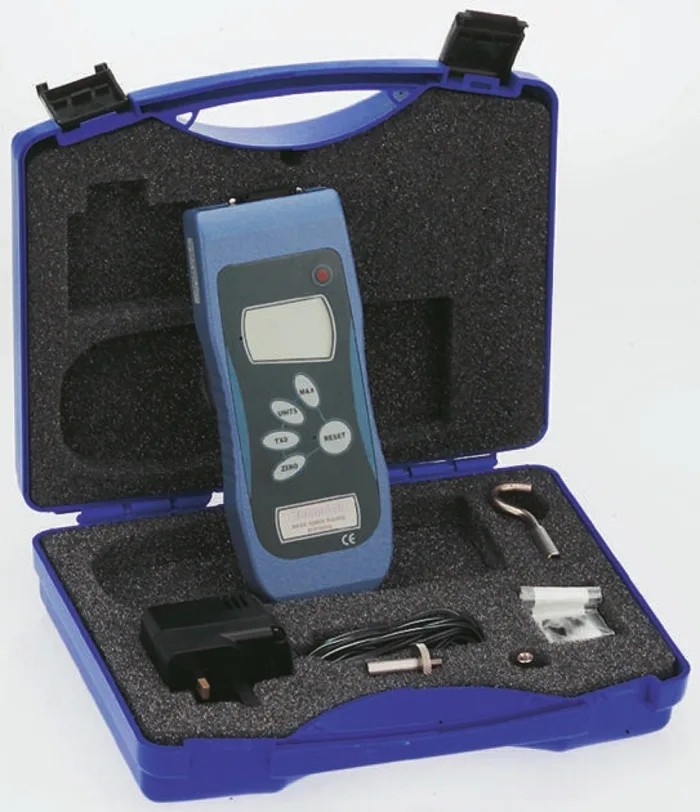

The force gauge is powered by five rechargeable AAA NiMH batteries offering up to 20 hours of continuous operation. A mains charger is included for convenient battery recharging. The package includes a short extension rod, a test hook, a compression plate, a calibration certificate, operating instructions, and a robust carry case for safe transport.

Accuracy of ±0.25% provides reliable force measurements. Resolution of 0.05 N ensures detailed readings. RS232 digital output enables data acquisition and analysis. Backlit display improves visibility in various lighting conditions.

Overload warning protects the gauge and enhances safety. Compact and lightweight design with 500 g weight and dimensions of 202 mm height, 77 mm width, and 30.9 mm length. Certified with CE standards and operable within 10°C to 35°C temperature range.

The Mecmesin 853-412 Force Gauge is an essential instrument across industrial manufacturing, quality assurance testing, research laboratories, and other professional applications where precise force measurement is critical. Explore EnvMart's extensive range of Force Gauges to find compatible accessories and complementary measurement tools.
