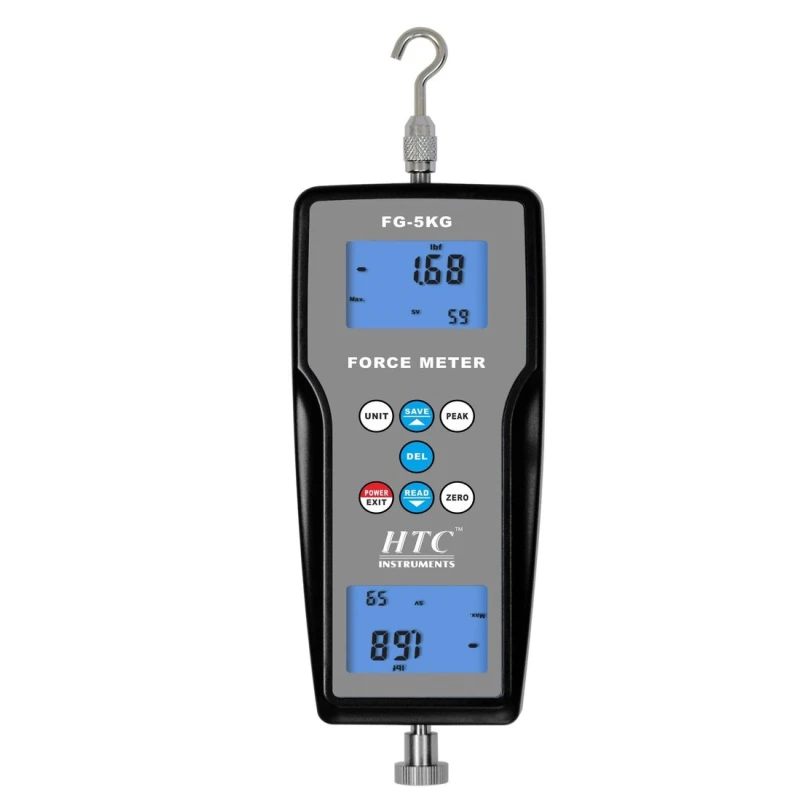

HTC Force Gauge FG-5KG
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | HTC FG-5KG Force Guage |
| Resolution | 0.001Kgf-0.01Lbf |
| Accuracy | ±0.1% |
| Display | 2 Reversed 4Digit LED |
| Brand | HTC |
| Dimension | 211x80x36mm |
| Model | FG-5KG |
| Type of Product | Force Gauge |
| Input power | 2×1.5AA(UM-3) or 6VDC PowerSupply |
| Data output | USB-Bluetooth(99Groups) |
| Force Measuring Range | ±5Kg |
| Force Range | ±5kgf-±11Lbf |
| Surrounding | No Vibration Source of Corrosive Medium Around |
| Safe Load | 150%FS(BuzzerarmOver110%FS) |
| Measurement State | Peak Value Measurement |
Key Features
- Measures push/pull forces up to 5 kg
- Peak and real-time value modes
- Blue backlit dual LED display
- USB and Bluetooth data output (99 groups)
- Auto/manual power-off with 10-min timer
- Safe load 150% FS (buzzer at 110%)
Product Description
HTC Force Gauge FG-5KG is a precision instrument designed to measure push and pull forces up to 5 kg with high accuracy. Featuring a digital LCD display, peak hold, and multiple unit selections (kg, N, lbf), it is suitable for laboratory testing, quality control, and industrial applications. The ergonomic design allows comfortable handling, while the memory function helps record data easily. Compact and durable, this force gauge provides consistent results for precise mechanical testing.
Available on EnvMart, these Force Gauges are precision instruments designed for measuring push and pull forces in manufacturing, research, and quality control applications. HTC Force Gauges deliver accurate results, ergonomic design, and durable construction, making them ideal for engineers and laboratory professionals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HTC Force Gauge FG-5KG can measure push and pull forces up to ±5 kg.
The accuracy of the HTC Force Gauge FG-5KG is ±0.1%.
The HTC Force Gauge FG-5KG features a 2 reversed 4-digit LED display.
The dimensions of the HTC Force Gauge FG-5KG are 211 x 80 x 36 mm.
The resolution of the HTC Force Gauge FG-5KG is 0.001 Kgf to 0.01 Lbf.
The HTC Force Gauge FG-5KG can be powered by 2×1.5AA (UM-3) batteries or a 6V DC power supply.
Yes, the HTC Force Gauge FG-5KG has USB and Bluetooth data output capabilities, allowing for storage of up to 99 groups of data.
The safe load limit for the HTC Force Gauge FG-5KG is 150% of full scale, with a buzzer alert at over 110% of full scale.
The HTC Force Gauge FG-5KG can perform peak value measurements for push and pull forces.
The package of the HTC Force Gauge FG-5KG includes the HTC FG-5KG Force Gauge itself.
The HTC Force Gauge FG-5KG should not be used in environments with vibration sources or corrosive media around.
The HTC Force Gauge FG-5KG is suitable for laboratory testing, quality control, and industrial applications.
