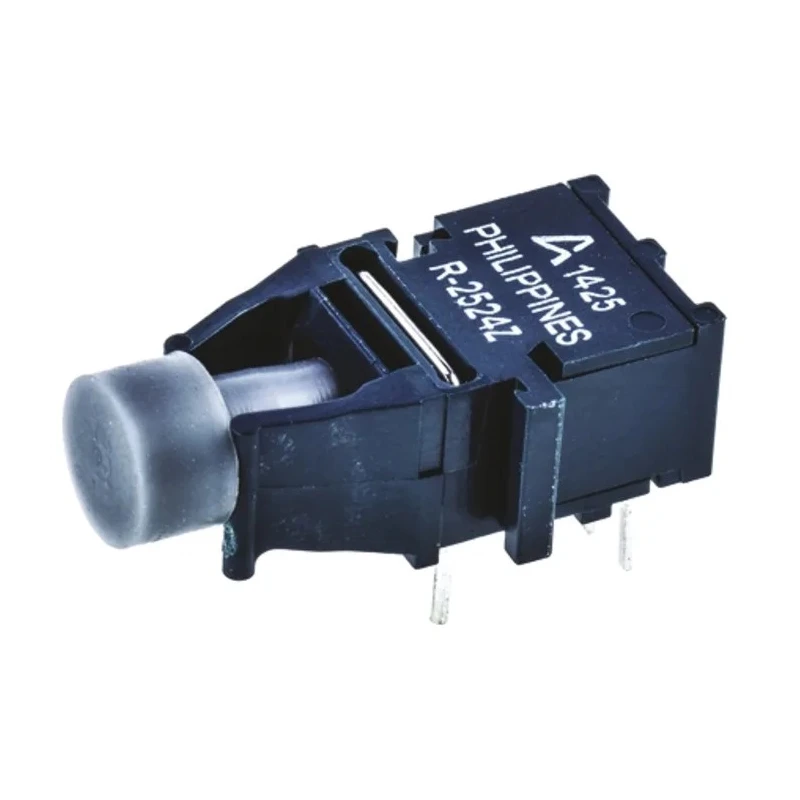

Broadcom Fibre Optic Receiver 1 MBd 600 nm Digital Output Square Connector Through Hole Mount HFBR-2524Z
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Broadcom |
| Height | 7.62mm |
| Length | 18.8mm |
| Model | HFBR-2524Z |
| Width | 10.16mm |
| Mount Type | Through Hole |
| Series | Versatile Link |
| Standards/Approvals | RoHS |
| Number of Pins | 6 |
| Typical Rise Time | 80ns |
| Typical Fall Time | 40ns |
| Maximum Data Rate | 1MBd |
| Output Signal Type | Digital |
| Connector Shape | Square |
| Wavelength of Peak Sensitivity | 600nm |
| - Low current link | 6mA peak supply current |
| - Enhanced digital links | dc-5 MBd |
| - Extended distance links | up to 120m at 40kBd |
| - Easy connecting | simplex, duplex and latching connectors |
Key Features
- Connector has a square shape suitable for through hole mounting.
- Features 6 pins and digital output signal type.
- Typical rise time of 80 nanoseconds and fall time of 40 nanoseconds.
- Complies with RoHS and offers high noise immunity and flame retardant housing.
- Supports enhanced digital links up to 5 MBd and extended distance links up to 120 meters at 40 kBd.
- Low current consumption with peak supply current around 6 mA.
- Compatible with standard TTL circuitry and versatile link series components.
- Easy connection with simplex, duplex, and latching connectors.
Product Description
Broadcom HFBR-2524Z Fibre Optic Receiver is a high-performance digital output device designed for industrial and electronic applications requiring reliable data communication. It operates at a peak sensitivity wavelength of 600 nm with a maximum data rate of 1 MBd, making it suitable for a variety of noise-immune communication channels including motor controller triggering, data communications, local area networks, and audio/video equipment.
This receiver features a square connector shape with 6 pins and is designed for through hole mounting. It provides fast response times, with a typical rise time of 80 ns and fall time of 40 ns, ensuring rapid data transmission.
Part of the Versatile Link series, the HFBR-2524Z supports enhanced digital links up to 5 MBd and extended distance fibre optic links up to 120 meters at 40 kBd. The low peak supply current of 6 mA helps reduce power consumption, and the flame retardant housing enhances safety and durability.
The device is compatible with standard TTL circuitry and facilitates easy connections using simplex, duplex, and latching fibre optic connectors, providing flexible application options.
Manufactured in the Philippines, this fibre optic receiver complies with RoHS standards, offering a reliable and environmentally compliant solution for industrial, laboratory, construction, and communication applications.
Connector square shape with 6 pins and through hole mount. Maximum data rate of 1 MBd at 600 nm wavelength. Typical rise and fall times are 80 ns and 40 ns respectively. Low current consumption of 6 mA peak supply current.
Flame retardant material enhances safety. Compatible with TTL circuits for versatile integration. Supports fibre optic links up to 120m and 5 MBd enhanced digital communication. Easy-to-use simplex, duplex, and latching connectors.
RoHS compliant for environmental safety. Explore more in the Fibre Optic Receiver category for comprehensive solutions in electronic components and optical data transmission.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is 1 MBd.
It operates at a peak sensitivity wavelength of 600 nm.
The typical rise time is 80 nanoseconds and the fall time is 40 nanoseconds.
The connector features 6 pins.
The peak supply current is around 6 mA, contributing to low power consumption.
It provides a digital output signal type.
This unit is designed for through hole mounting.
It supports simplex, duplex, and latching connectors for easy connections.
It supports extended distance links up to 120 meters at 40 kBd.
Yes, it complies with RoHS standards for environmental safety.
It is part of the Versatile Link series.
This model is manufactured in the Philippines.
