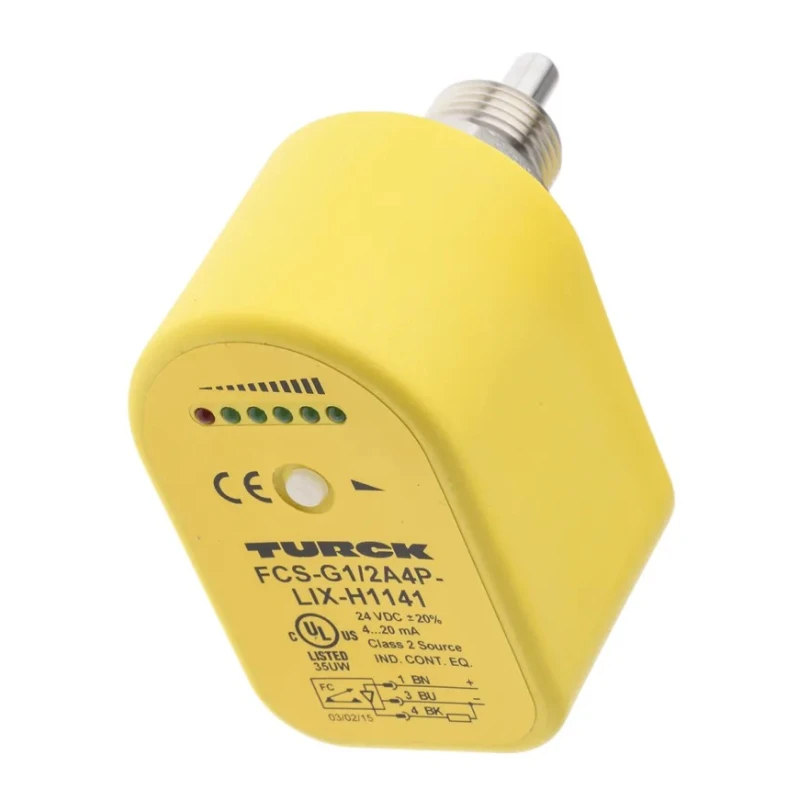

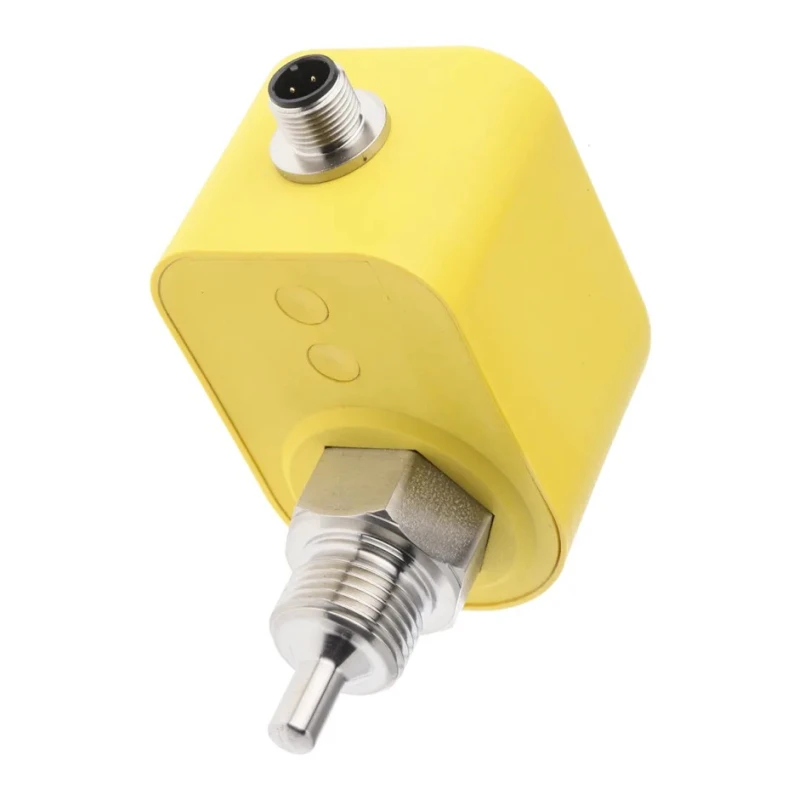

Turck Compact Flow Controller, 150cm³/s, Analogue Output, 0.5 in Pipe, 26V, FCS-G1/2A4P-LIX-H1141

Turck FCS-G1/2A4P-LIX-H1141 is a compact flow controller designed for precise measurement and control of fluid flow in industrial and automation applications. Featuring a maximum flow rate of 150cm³/s and an analogue 4-20mA output, this device is ideal for monitoring water flow in pipe diameters up to 0.5 inches.

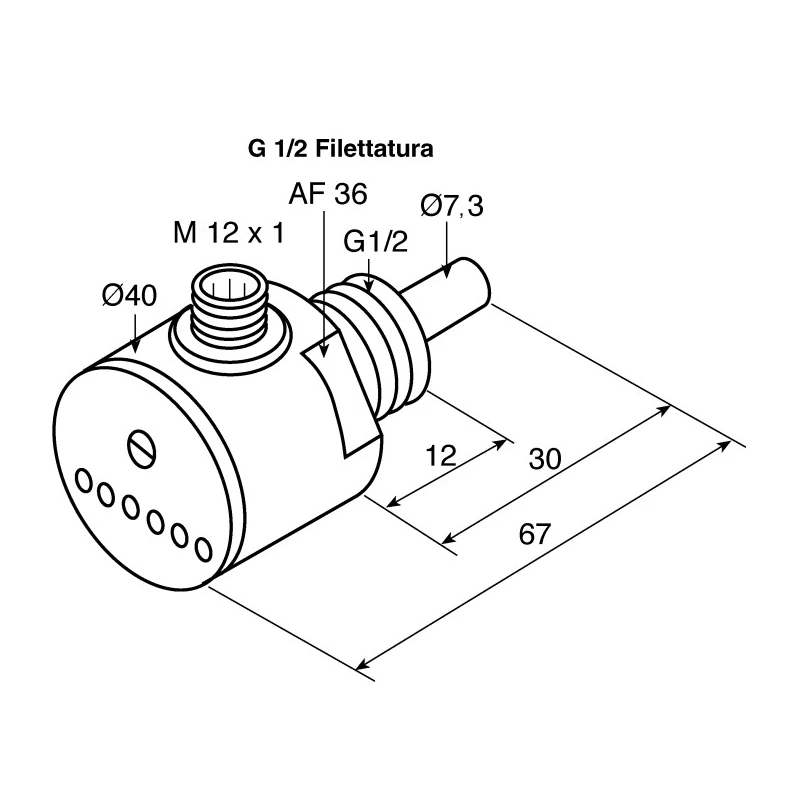

The device uses an immersion sensor type with G1/2 pipe thread, facilitating straightforward installation and compact integration within existing fluid systems. Its compact housing measures 50 mm in width, 78 mm in height, and 44 mm in depth, allowing tight mounting in space-constrained environments.

Equipped with an M12 connector for electrical interfacing, the flow controller supports a supply voltage up to 26V DC and a current rating of 100mA. The bright LED band display provides a clear indication of flow status, enabling easy system monitoring on-site.

Engineered with IP65 protection, the unit is resistant to dust ingress and low-pressure water jets, making it suitable for harsh industrial conditions such as chemical processing, agricultural equipment, and wastewater management.

The adjustable flow limit between 5 and 150cm³/s allows fine-tuning to suit specific operational requirements. For optimal performance and longevity, it is recommended for use primarily with water, minimizing corrosion risks to the sensitive sensor element.

Manufactured in Germany, this Turck FCS series flow controller combines precision, durability, and compact form factor to enhance fluid control in various industrial and laboratory environments.

Supports maximum flow rate of 150cm³/s for accurate fluid monitoring. Equipped with M12 electrical connector for standard device compatibility. Compact mount type with block dimensions of 50 x 78 x 44mm for space-saving installation.

LED display screen provides clear visual indication of flow status. Adjustable flow limit control between 5 and 150cm³/s ensures operational flexibility. Operates reliably within temperature range -20°C to 70°C. IP65 rated enclosure protects against dust and low-pressure water jets.

Compatible primarily with water to prevent corrosion of sensitive sensor elements. Current rating of 100mA with a maximum supply voltage of 26V DC. Compact immersion sensor type with G1/2 pipe thread for easy integration.
