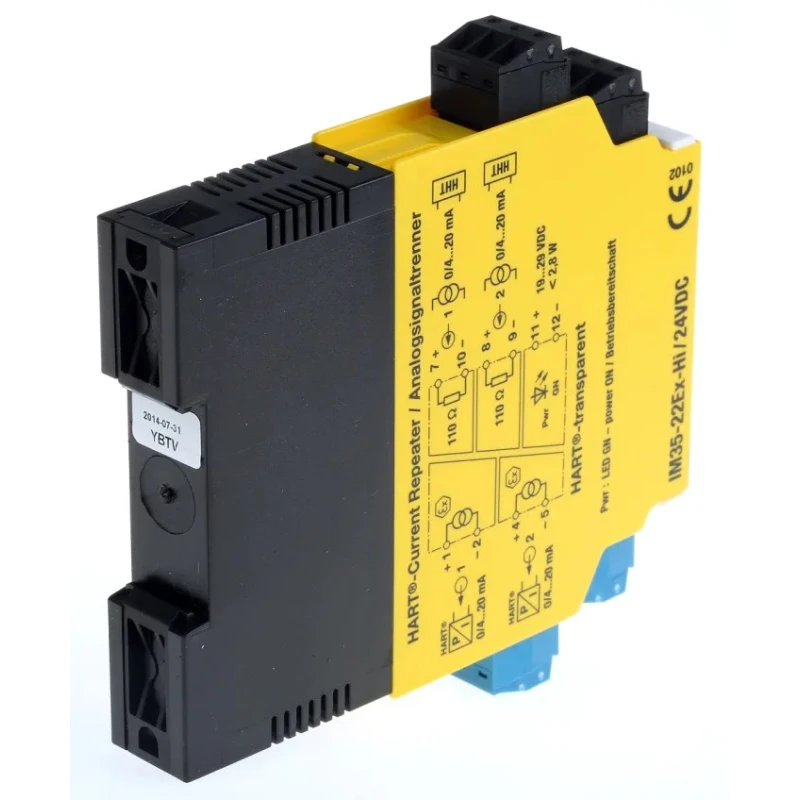

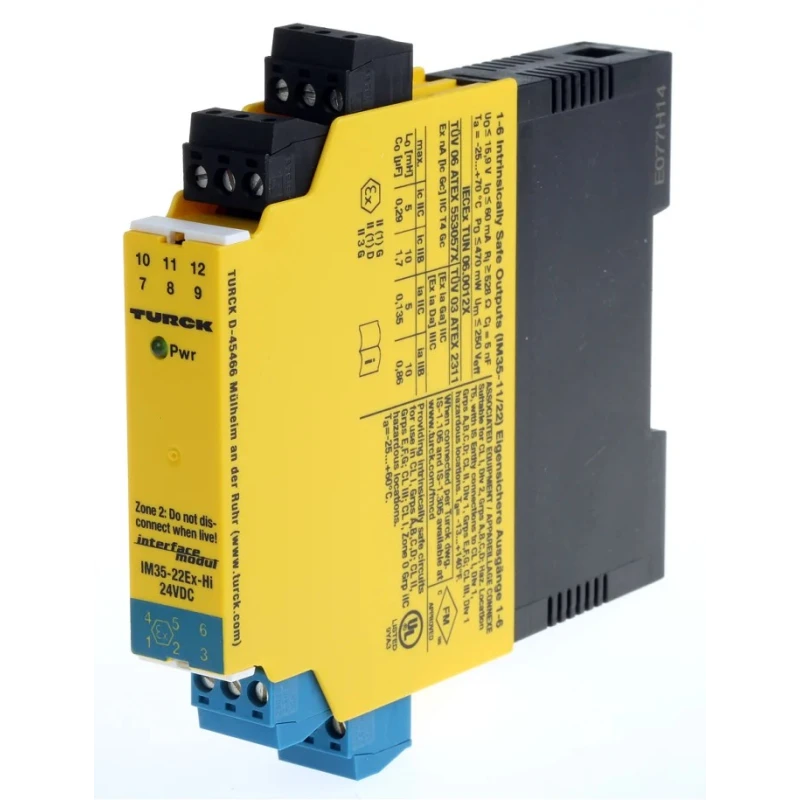

Turck 2 Channel Galvanic Barrier Analogue Signal Isolator IECEx/ATEX 24V DC IM35-22EX-HI/24VDC

Turck IM35-22EX-HI/24VDC 2 Channel Galvanic Barrier Analogue Signal Isolator is engineered for precise signal conditioning and isolation in demanding industrial automation environments. With IECEx and ATEX certifications, it meets stringent requirements for hazardous areas, ensuring safety and reliability.

This galvanic barrier effectively isolates input and output signals to prevent noise and crosstalk, maintaining signal integrity for critical processes. It supports analogue signals with a constant current range from 0 to 20mA and features a robust test voltage of 2.5kV to withstand electrical surges.

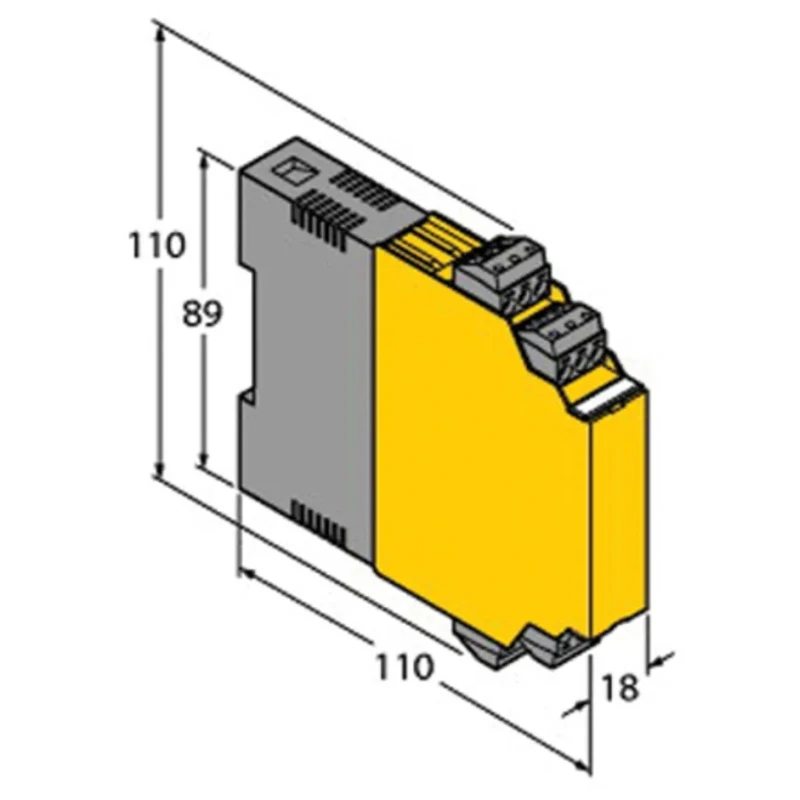

The product's compact design measures 110mm in length, 18mm in width, and 110mm in depth, allowing efficient use of DIN rails in control cabinets. This slim form factor, combined with a lightweight of 163 grams, facilitates easy installation and reduces mechanical stress on mounting systems. The device uses screw terminals for secure electrical connections and possesses an IP20 rating, making it touch-proof for user safety.

Operating reliably within temperatures from -25°C to 70°C, this galvanic barrier is ideal for various industrial, medical, and measurement applications. It complies with SIL2 safety standards and carries approvals from TÜV for ATEX and IECEx certifications, endorsing its suitability for Zone 2 hazardous areas and intrinsically safe output circuits.

This device provides complete galvanic isolation to eliminate crosstalk and noise interference between channels. Operates on 24V DC supply voltage with a maximum safety current of 60mA. Compact DIN rail mounting with slim dimensions of 110mm length, 18mm width, and 110mm depth.

Designed to withstand operating temperatures from -25°C to +70°C for industrial and medical applications. Equipped with screw terminal type connections for secure wiring and IP20 rated for touch-proof safety. Measured safety current resistance of 528 Ohms ensures reliable signal transmission.

Certified SIL2 Safety Integrity Level and approved under TÜV ATEX standards for hazardous locations. Supports analogue signal types with HART communication compatibility. Lightweight at only 163 grams, reducing load on installation rails.

Ideal for industrial automation, measuring equipment, and medical technology sectors, the Turck IM galvanic barrier ensures signal fidelity and system safety. The product's proven reliability and certification make it a preferred choice for installations requiring intrinsic safety and explosion-proof environments.
