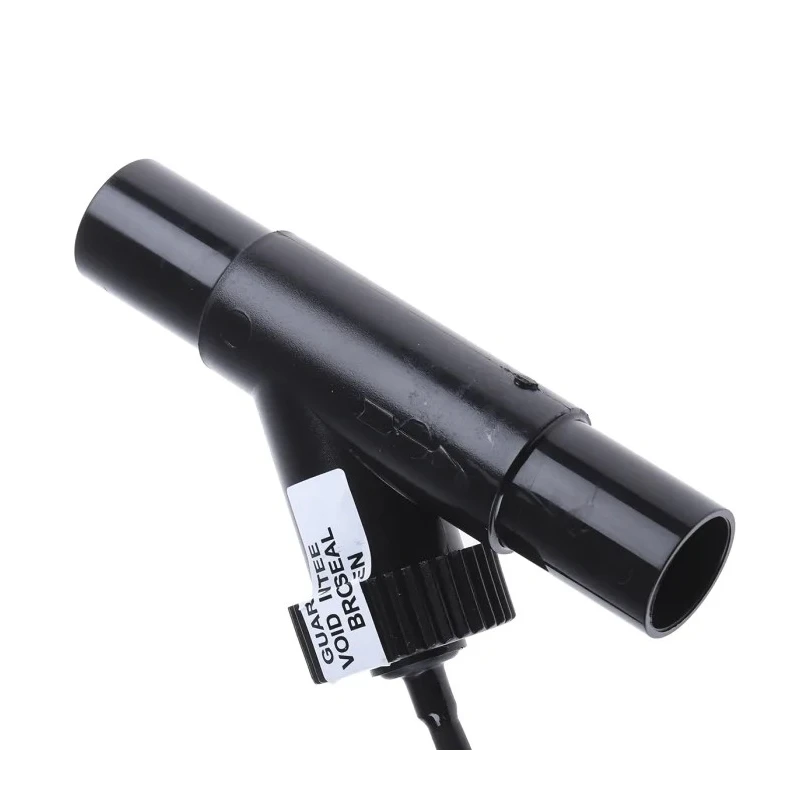

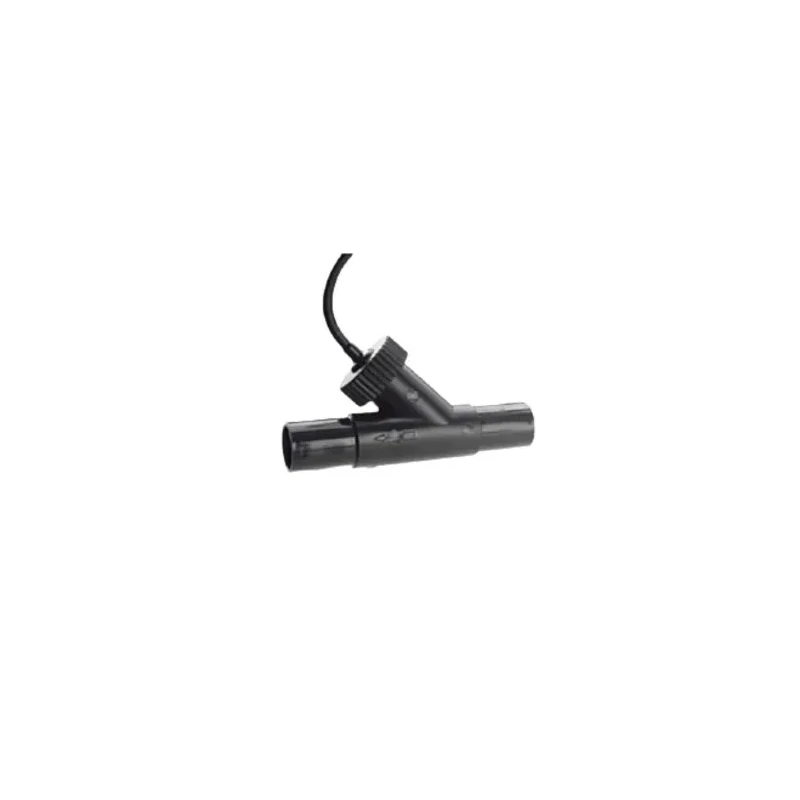

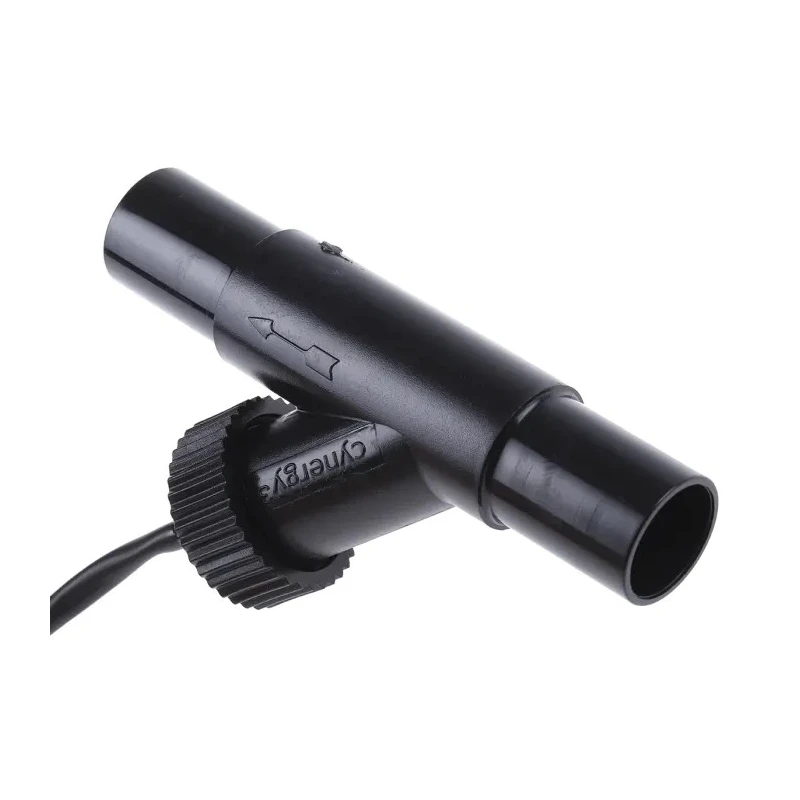

Cynergy3 Flow Controller , Horizontal and Vertical Mounting, 3.75 L/min, Relay Output, 22 mm Pipe Diameter, 240V

Cynergy3 FS22A flow controller is a high-quality device engineered for precise liquid flow monitoring in industrial and commercial applications. It supports mounting in both horizontal and vertical orientations and is compatible with pipes up to 22 mm diameter. The flow controller operates reliably at temperatures ranging from -20°C to 85°C, making it suitable for both cold and hot water systems as well as some weak acidic liquids.

This flow controller features a relay output with a switching voltage of 240V AC and supports a current rating of up to 600 mA. It functions by closing the normally open contacts when the flow exceeds 3.75 litres per minute, which can be used to activate or control other equipment downstream, providing automatic flow regulation for safety and efficiency enhancement.

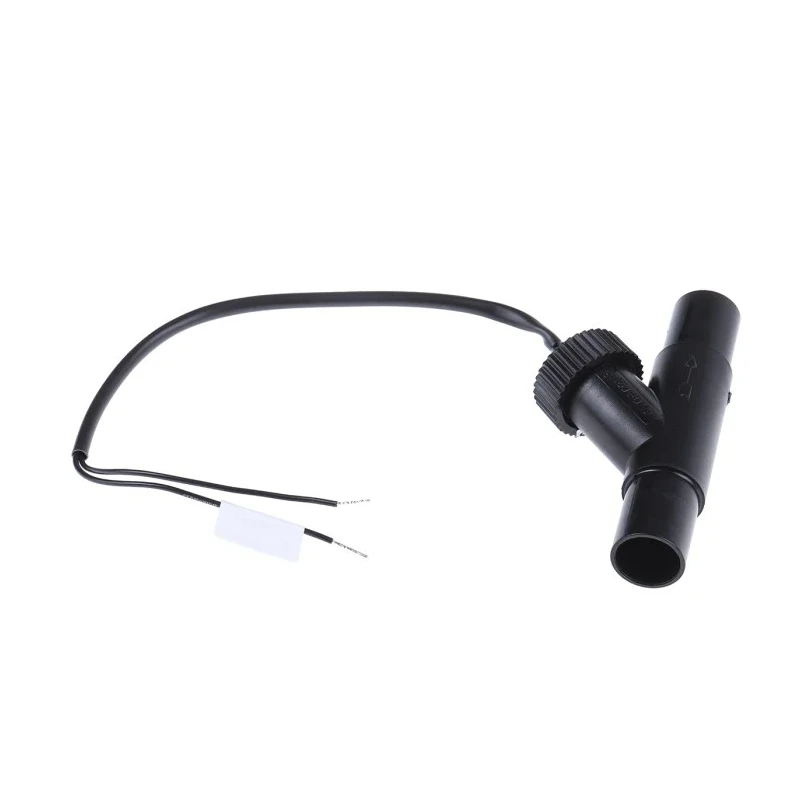

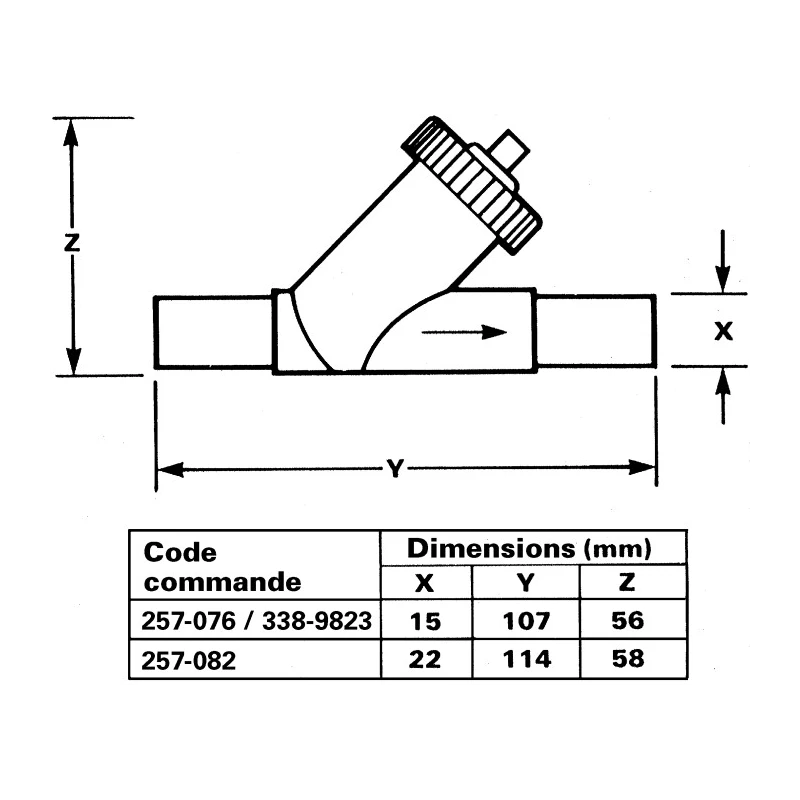

The device is rated for maximum operating pressure of 10 bar (approximately 150 psi), making it suitable for robust industrial environments. Its design includes minimal flow restriction and standard compression or push-fit fittings for ease of installation. A lead cable of 250 mm length allows for flexible wiring in installation setups.

While primarily intended for water applications, it can also handle weak acids up to 5% concentration. It is not recommended for use with chlorinated liquids or those containing significant solid particles. This model is WRAS-approved, ensuring suitability for potable water systems.

Operates with a switching voltage of up to 240V AC or 120V DC. Maximum flow rate of 3.75 litres per minute through a 22 mm pipe. Supports mounting in horizontal or vertical orientations to suit installation needs. Features a normally open relay output for automated flow control.

Suitable for liquid flow measurement, with restrictions on chlorinated liquids. Includes a 250 mm lead cable for extended connectivity. Designed and manufactured for use in industrial, HVAC, water treatment, and chemical handling industries.

This Cynergy3 FS series flow controller meets stringent quality and safety standards, making it an excellent choice for integration into systems requiring precise liquid flow detection and control. Explore the extensive range of Flow Controllers and sensors available on EnvMart to complement your industrial automation and control setups.
