Turck 2 Channel Galvanic Barrier IECEx ATEX Rated DIN Rail Mount IM1-22EX-R

Free Delivery in India | Lowest Global Shipping Charges

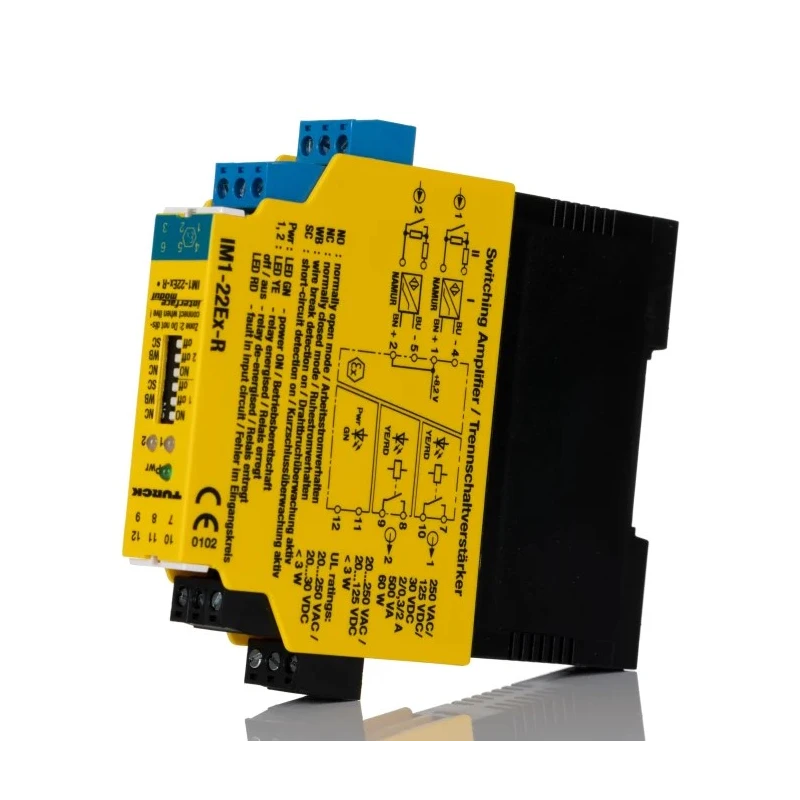

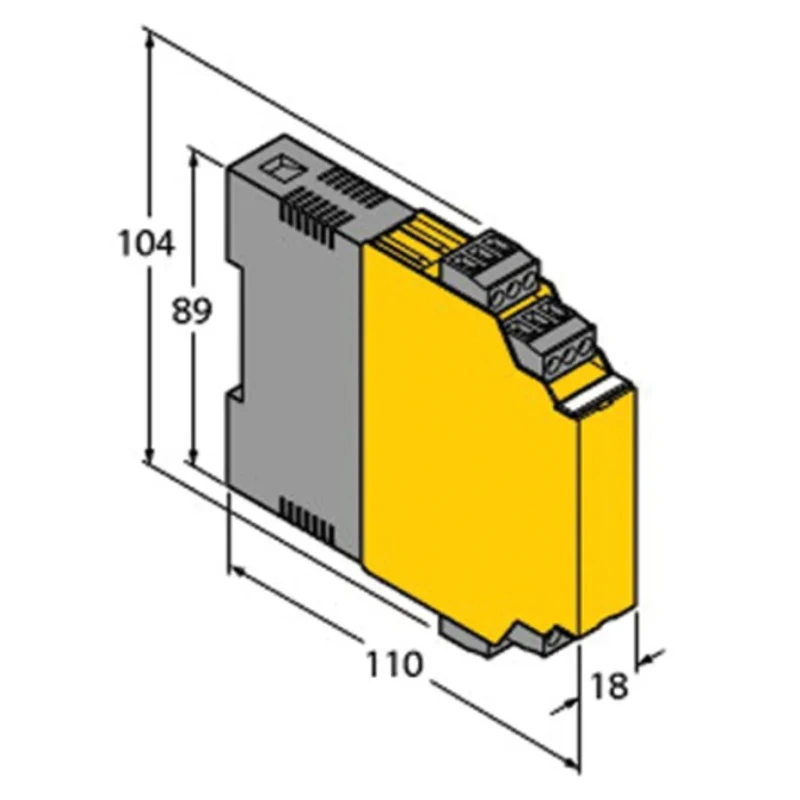

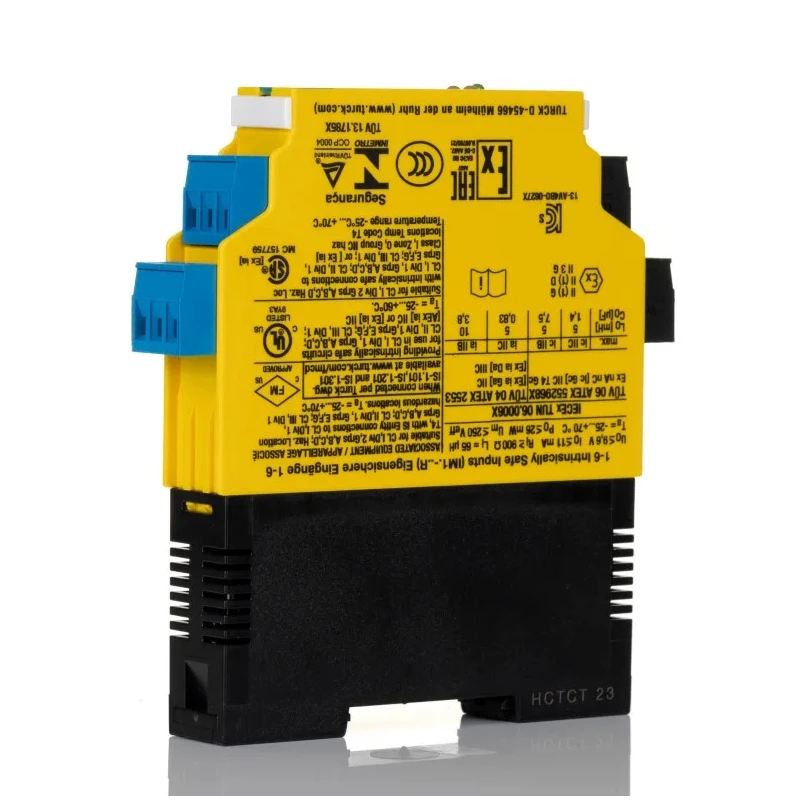

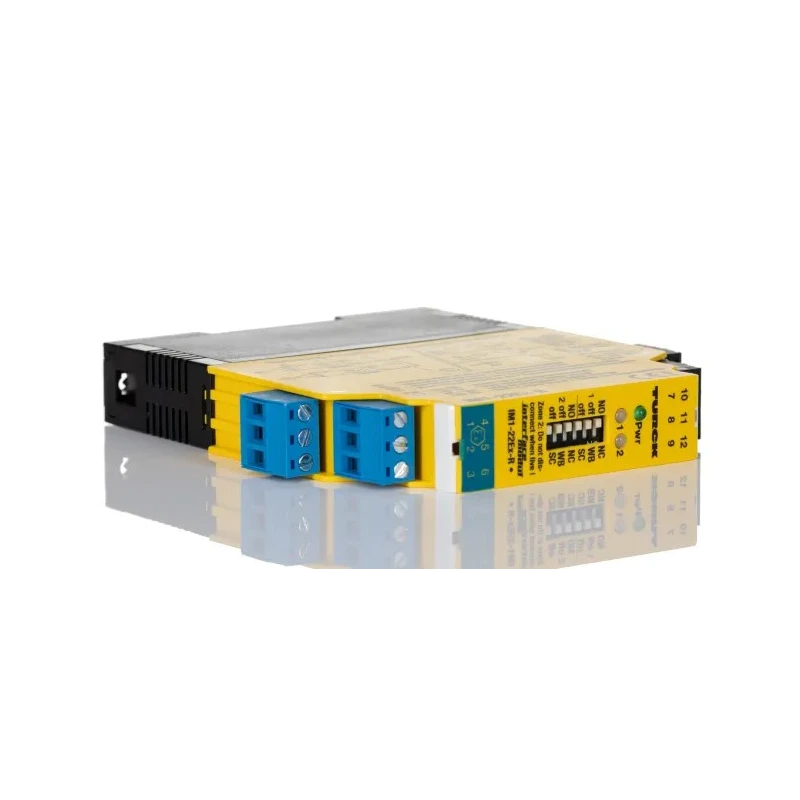

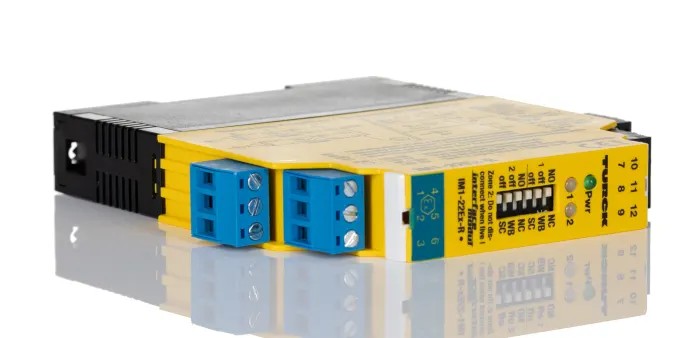

Turck 2 Channel Galvanic Barrier IECEx ATEX Rated DIN Rail Mount IM1-22EX-R

Name: Turck 2 Channel Galvanic Barrier IECEx ATEX Rated DIN Rail Mount IM1-22EX-R
Brand: Turck
SKU: 374805
Price: 330.26 USD
Availability: InStock



Category Zener & Galvanic Barriers Brand Turck Condition New

Specifications

Country of Origin	Germany
Brand	Turck
Model	IM1-22EX-R
IP Rating	IP20
Mount Type	DIN Rail
Series	IM
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number Of Channels	2
Supply Voltage	20, 250, 125, 20V ac
Hazardous Area Certification	IECEx, ATEX
Standards/Approvals	EN, CSA, UL, ATEX, TUV
Barrier Type	Galvanic Barrier
Maximum Safety Voltage	250V
Pepperl + Fuchs 2 Channel Galvanic BarrierBrand	Pepperl + Fuchs
Turck Galvanic Barrier, ATEX, IECExBrand	Turck

Key Features

Operates reliably in wide temperature range from -25°C to 70°C.
Features 2 galvanically isolated channels for safe signal transmission.
DIN rail mount for easy installation in industrial panels.
Supports supply voltage range up to 250V AC and 125V DC.
Equipped with screw terminal connections for secure wiring.
LED indicators provide operational status at a glance.
Isolation tested to withstand up to 2.5kV voltage surges.
Includes optional wire-break and short-circuit monitoring functions.

Product Description

Turck IM1-22EX-R 2 Channel Galvanic Barrier is an isolating switching amplifier designed for safe transmission of control signals in automation and industrial environments.

This galvanic barrier safely isolates an 8.2V DC NAMUR sensor from a 250V AC output without affecting the integrity of the signal, preventing unwanted electrical conduction between circuits.

Its 2 relay outputs allow for flexible make or break operation of multiple circuits as required by your system. This product is built to withstand harsh industrial conditions with a broad operating temperature range from -25°C to +70°C and an IP20 rating.

The device includes screw terminals for reliable wiring and DIN rail mounting for ease of installation in control panels. LED indicators on the unit provide continuous feedback on operational status, supporting maintenance and troubleshooting.

Electrical isolation has been tested up to 2.5kV to protect connected equipment from surge damage. Additionally, built-in monitoring functions for wire breaks and short circuits increase operational reliability and safety.

IM1-22EX-R complies with key international safety and quality certifications, including IECEx, ATEX, EN, CSA, UL, and TUV standards, making it suitable for use in hazardous and explosive atmospheres such as those found in automotive, medical equipment, renewable energy installations, and power supply design.

Operates effectively in demanding industrial and hazardous area applications. Ensures signal integrity and noise immunity through galvanic isolation. Supports flexible control with dual relay outputs and monitoring functions.

Robust construction for reliable long-term performance. Easy integration via DIN rail mounting and screw terminals. Wide voltage compatibility for universal use. LED display aids quick diagnostics. Certified for safety and environmental standards compliance.

Choose the Turck IM1-22EX-R galvanic barrier for reliable, safe signal conditioning and circuit isolation in your industrial automation systems. Explore further signal conditioning and isolation products at EnvMart to complement your instrumentation setup.
