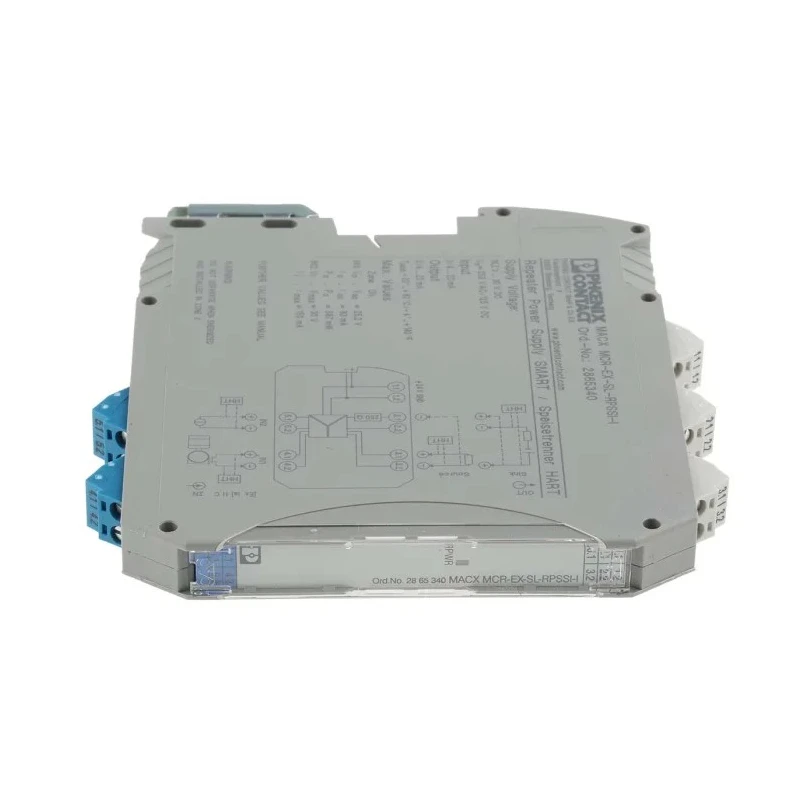

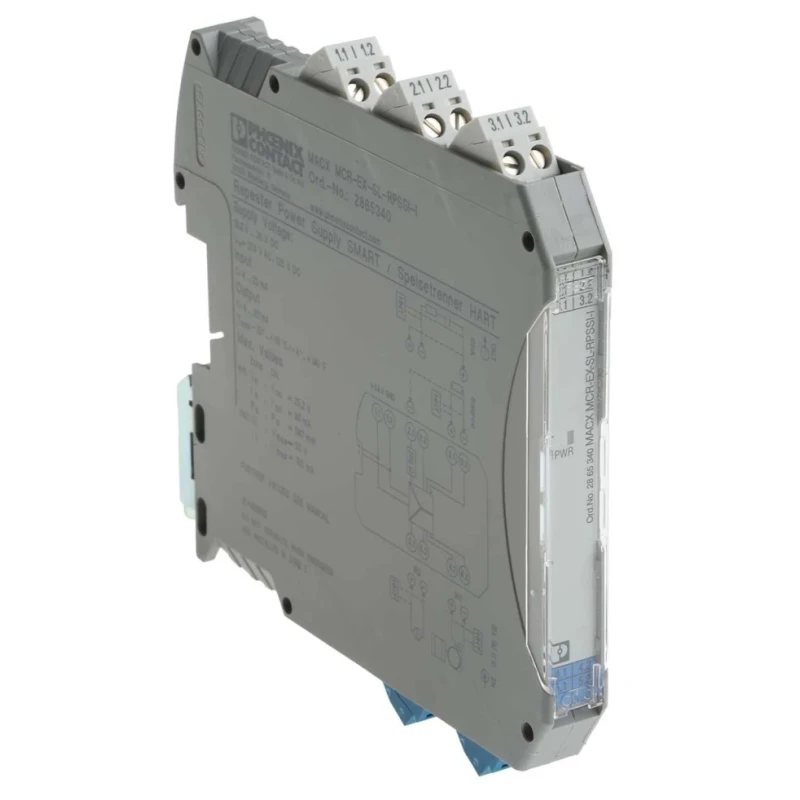

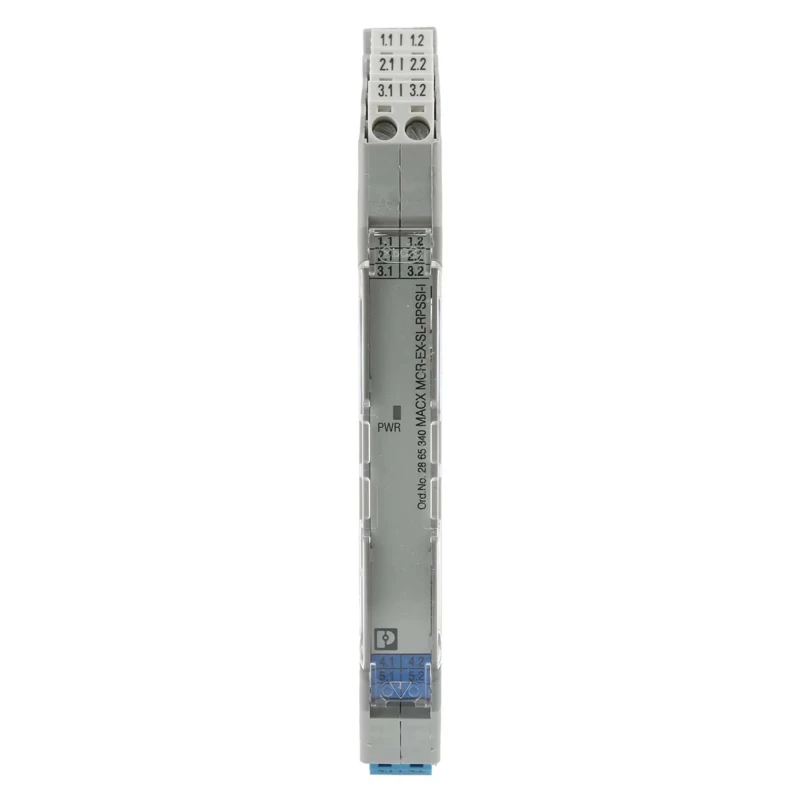

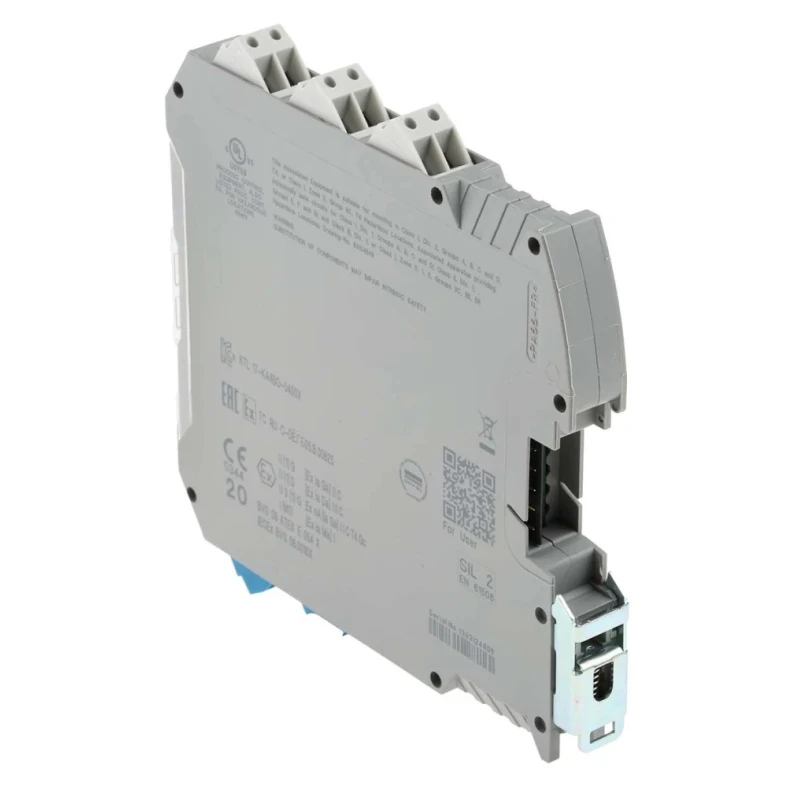

Phoenix Contact Galvanic Barrier Analogue ATEX DIN Rail Mount 19.2-30V DC 600Ω Safety Current 93mA 125-253V DC 2865340
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Model | 2865340 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | MACX MCR-EX-SL-RPSSI |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Supply Voltage | 19.2, 30V dc |
| Signal Type | Analogue |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | ATEX, WEEE, RoHS, CE, IEC, UL |
| Barrier Type | Galvanic Barrier |
| Safety Current Resistance | 600Ω |
| Maximum Safety Current | 93mA |
| Maximum Safety Voltage | 125, 253V dc |
Key Features
- Supports a single channel for signal transmission.
- Mounts easily on standard DIN rails for convenient installation.
- Certified for ATEX hazardous area compliance ensuring safety.
- Rated for supply voltage between 19.2 and 30 volts DC.
- Safety current resistance of 600 ohms enhances protective isolation.
- Operates across a temperature range of -20°C to 60°C for versatile environmental use.
- Equipped with screw terminal connections for secure wiring.
- Offers an IP20 rating indicating basic protection against solid objects.
Product Description
The Phoenix Contact 2865340 galvanic barrier analogue ATEX device is an industrial-grade isolating amplifier engineered to provide electrical isolation between circuits while allowing safe signal transmission. It is DIN rail mountable and certified to ATEX standards, making it suitable for hazardous environments requiring strict safety compliance.
Designed for analogue signals with a single channel, this galvanic barrier supports supply voltages ranging from 19.2 to 30 V DC and features a safety current resistance of 600 ohms and a maximum safety current of 93 mA. Its operating temperature range spans from -20°C to 60°C, enabling reliable performance in demanding temperature conditions.
The device's screw terminals allow for secure and simple wiring with cables sized 24 to 14 AWG. It carries an IP20 rating, providing protection against solid foreign objects and ensuring operational safety in normal industrial environments. The robust design includes compliance with standards such as WEEE, RoHS, CE, IEC, and UL.
Its slim form factor (12.5 mm width, 112.5 mm length, and 113.7 mm height) conserves space within control cabinets. The galvanic barrier's ATEX certification confirms its suitability for use in explosion-prone hazardous zones, enhancing safety by preventing dangerous voltages from crossing into such areas.
This Phoenix Contact device is commonly employed in industrial automation, process control, and instrumentation systems to enable safe measurement and control signal transmission in hazardous locations. It supports HART protocols and field device communications integral to modern automation networks.
Supports a single channel for signal transmission. Mounts easily on standard DIN rails for convenient installation. Certified for ATEX hazardous area compliance ensuring safety. Rated for supply voltage between 19.2 and 30 volts DC.
Safety current resistance of 600 ohms enhances protective isolation. Operates across a temperature range of -20°C to 60°C for versatile environmental use. Equipped with screw terminal connections for secure wiring. Offers an IP20 rating indicating basic protection against solid objects.
Compatible with analogue signal types suitable for industrial automation. Maximum safety voltage is between 125 and 253 volts DC for robust operation. Explore EnvMart's vast catalog for other signal conditioning and isolation products designed to meet rigorous industrial and safety standards.
Explore more products in our Zener & Galvanic Barriers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a supply voltage range between 19.2 and 30 volts DC.
The maximum safety current is rated at 93 mA.
It operates across a temperature range of -20°C to 60°C.
This galvanic barrier is designed for DIN rail mounting, allowing for convenient installation.
It carries an IP20 rating, providing basic protection against solid foreign objects.
It supports a single channel for signal transmission.
This model is compatible with analogue signal types suitable for industrial automation.
It is equipped with screw terminal connections for secure wiring.
It is certified for ATEX hazardous area compliance, ensuring safety in explosion-prone environments.
It complies with standards such as ATEX, WEEE, RoHS, CE, IEC, and UL.
The safety current resistance is rated at 600 ohms, enhancing protective isolation.
The unit has a slim form factor with dimensions of 12.5 mm width, 112.5 mm length, and 113.7 mm height.
