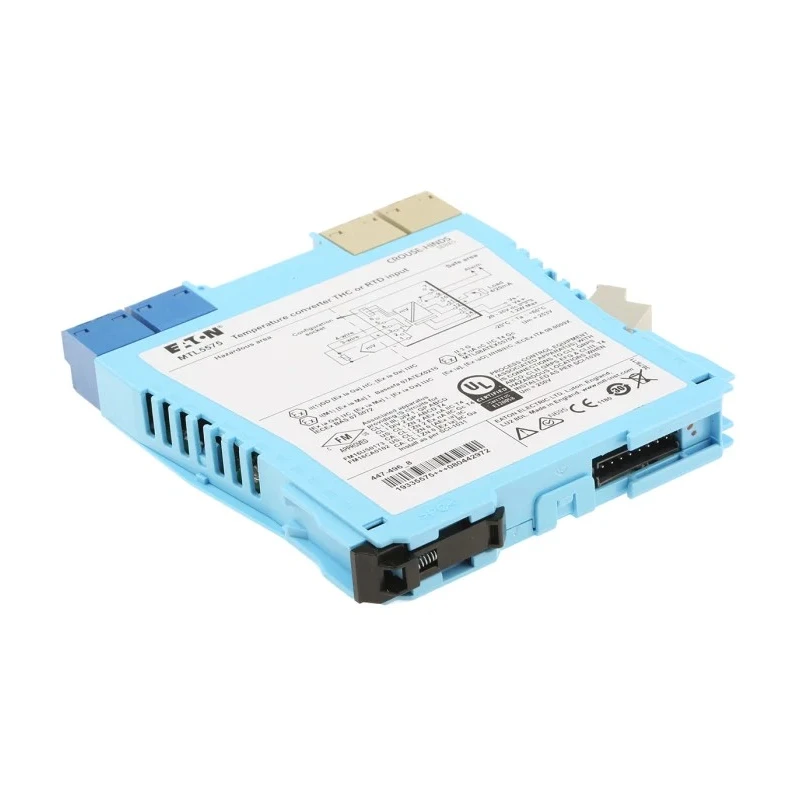

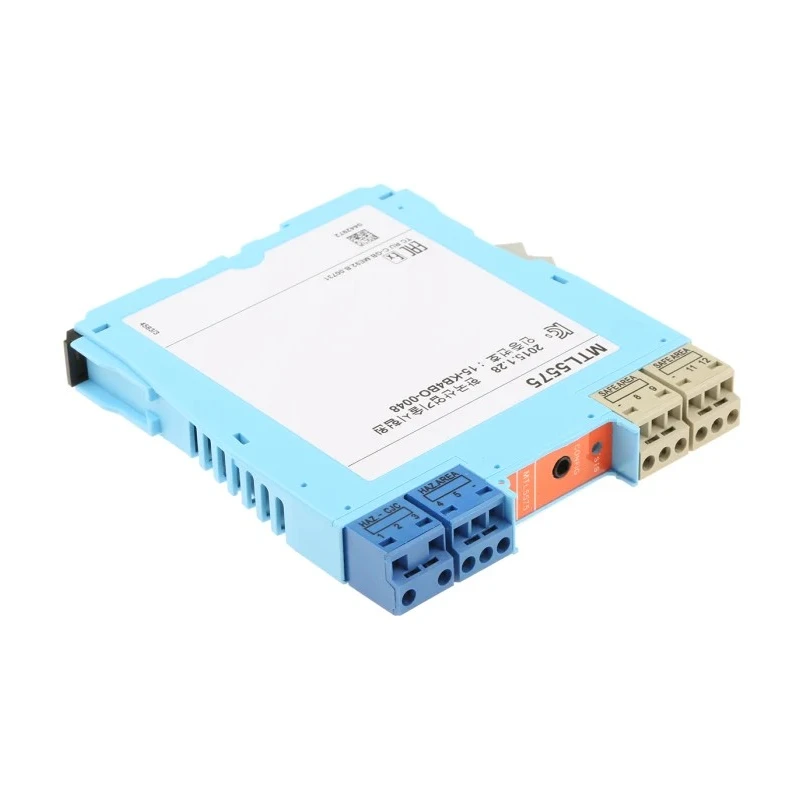

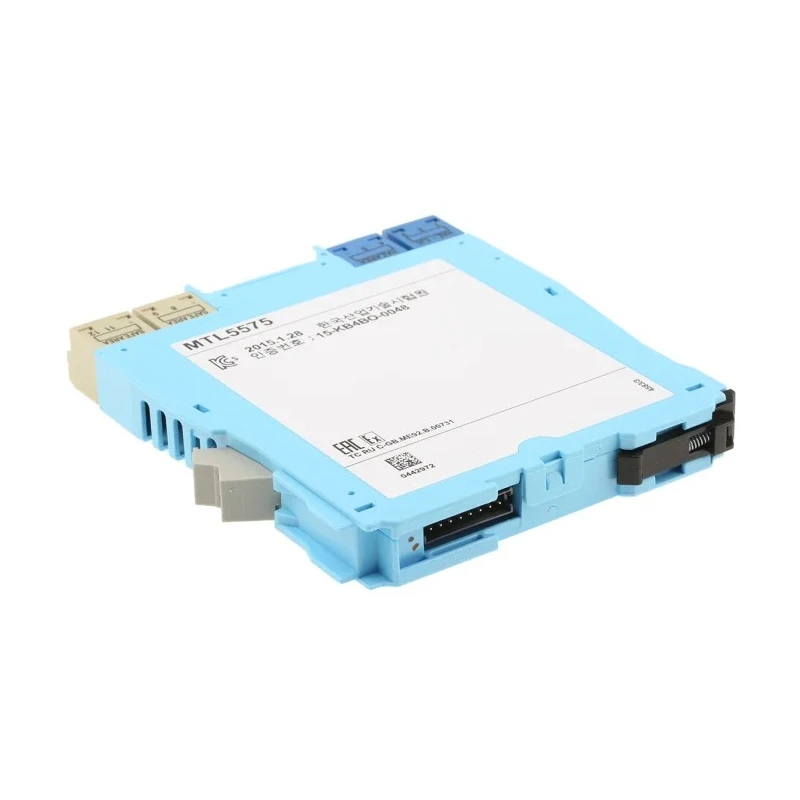

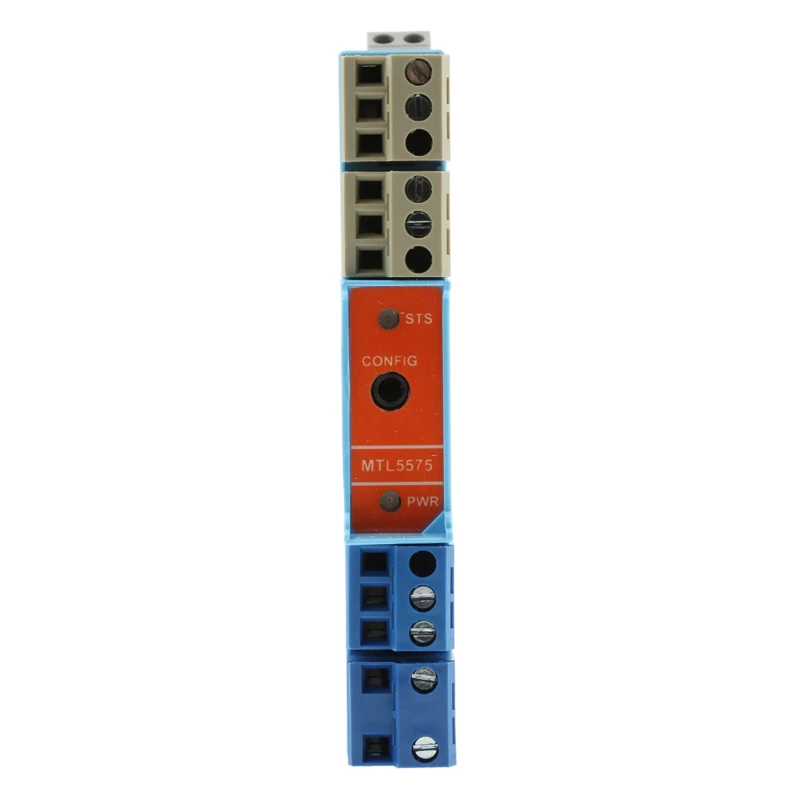

Eaton Zener Barrier THC/RTD Input with Alarm, 1 Channel, Galvanic Barrier, ATEX Certified, DIN Rail Mount MTL5575/RS
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Eaton |
| Model | MTL5575/RS |
| IP Rating | IP54 |
| Mount Type | DIN Rail |
| Series | MTL5575 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Supply Voltage | 20, 35V dc |
| Signal Type | THC/RTD Input + Alarm |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | DIN 43760, BS 60584, BS 60751 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 703-7071Brand: EatonManufacturers Part No.: MTL5575/RS |
| Barrier Type | Galvanic Barrier |
| Safety Current Resistance | 600Ω |
| Maximum Safety Current | 20mA |
| Maximum Safety Voltage | 253V |
Key Features
- Provides safe electrical signal conversion for hazardous locations.
- Compatible with thermocouples and resistance temperature detectors (RTDs).
- Integrated alarm output alerts when temperature limits are reached.
- Energy-efficient operation with maximum current consumption of 20mA.
- DIN rail mounting for easy installation.
- Robust IP54 rated enclosure for protection against dust and moisture.
- Wide operating temperature range from -20°C to 60°C.
- Fast response time of 500ms for critical monitoring.
Product Description
The Eaton MTL5575/RS Zener Barrier is a high-performance galvanic barrier designed for safely converting electrical signals from temperature sensors like thermocouples and RTDs in hazardous environments. With its ATEX certification, this device ensures intrinsic safety for industrial automation and instrumentation applications where explosion risks exist.
This model provides one channel with an integrated alarm output that activates when preset temperature thresholds are exceeded, allowing operators to take timely action. Its design enables operation with a supply voltage range of 20 to 35 V DC and a maximum safety current of 20mA, ensuring energy-efficient and reliable performance.
The compact unit mounts easily on DIN rails and features screw-type terminals for secure wiring. It has an IP54 rating to resist dust and water ingress, making it suitable for challenging industrial settings. The operating temperature range of -20°C to 60°C allows use in a variety of demanding conditions.
Key features include a rapid 500ms response time for fast detection and a low power dissipation of 1.2 watts to minimize energy losses. The device meets internationally recognized standards including DIN 43760, BS 60584, and BS 60751, reinforcing its quality and compatibility.
The device can be configured using MTL PCS45 software linked via a PCL45USB interface, enabling precise adjustment of temperature sensor parameters and alarm behavior. Eaton's MTL 5500 Series encompasses advanced intrinsic safety isolators ensuring explosion-proof protection in signal conditioning applications.
Provides safe electrical signal conversion for hazardous locations. Compatible with thermocouples and RTDs. Integrated alarm output for temperature limit alerts. Energy-efficient with 20mA max current consumption. DIN rail mounting for convenient installation.
IP54 rated for environmental protection. Wide operating temperature range from -20°C to 60°C. Fast 500ms response time. Low 1.2W power dissipation. Meets DIN 43760, BS 60584, BS 60751 standards.
This Zener barrier is ideal for use in industrial automation, process control, manufacturing, and hazardous area instrumentation to ensure safe, reliable temperature monitoring. Explore more Eaton products and signal conditioning solutions on EnvMart.
Explore more products in our Zener & Galvanic Barriers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton MTL5575/RS operates within a temperature range of -20°C to 60°C.
This model is compatible with thermocouples and resistance temperature detectors (RTDs), providing THC/RTD input along with an alarm output.
The maximum safety current for the Eaton MTL5575/RS is 20mA.
The Eaton MTL5575/RS is designed for DIN rail mounting, allowing for easy installation.
This model has an IP54 rating, providing protection against dust and moisture ingress.
The device features screw-type terminals for secure wiring, although specific dimensions are not provided in the available data.
The Eaton MTL5575/RS is ATEX certified and meets standards including DIN 43760, BS 60584, and BS 60751.
The supply voltage range for the Eaton MTL5575/RS is between 20V and 35V DC.
This unit has a fast response time of 500ms, enabling quick detection for critical monitoring.
Yes, the Eaton MTL5575/RS can be configured using MTL PCS45 software linked via a PCL45USB interface for precise adjustments.
The power dissipation for the Eaton MTL5575/RS is low, at 1.2 watts, which helps minimize energy losses.
This model is suitable for industrial automation, process control, manufacturing, and hazardous area instrumentation.
