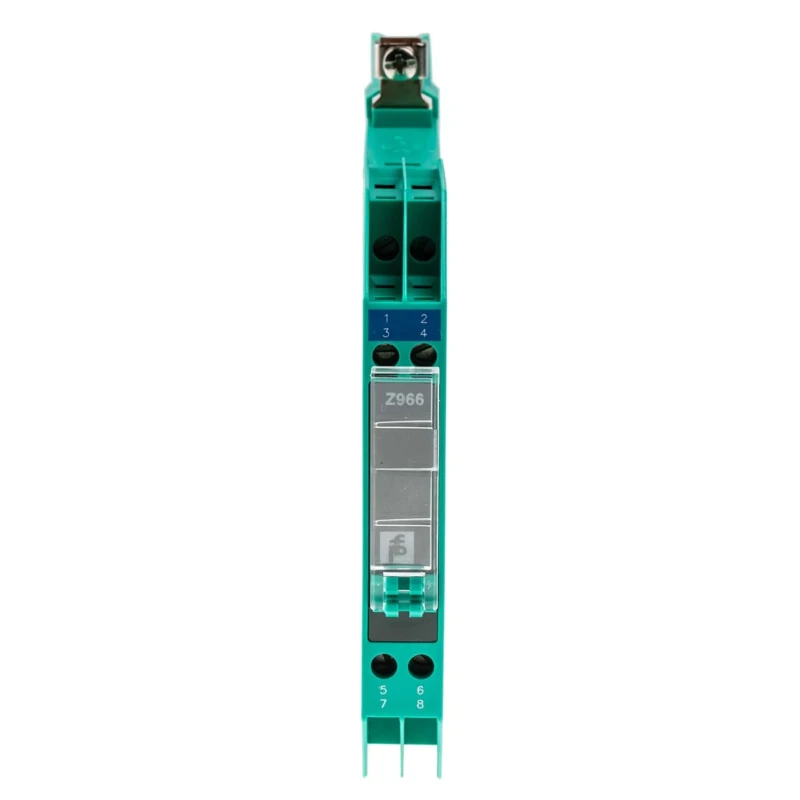

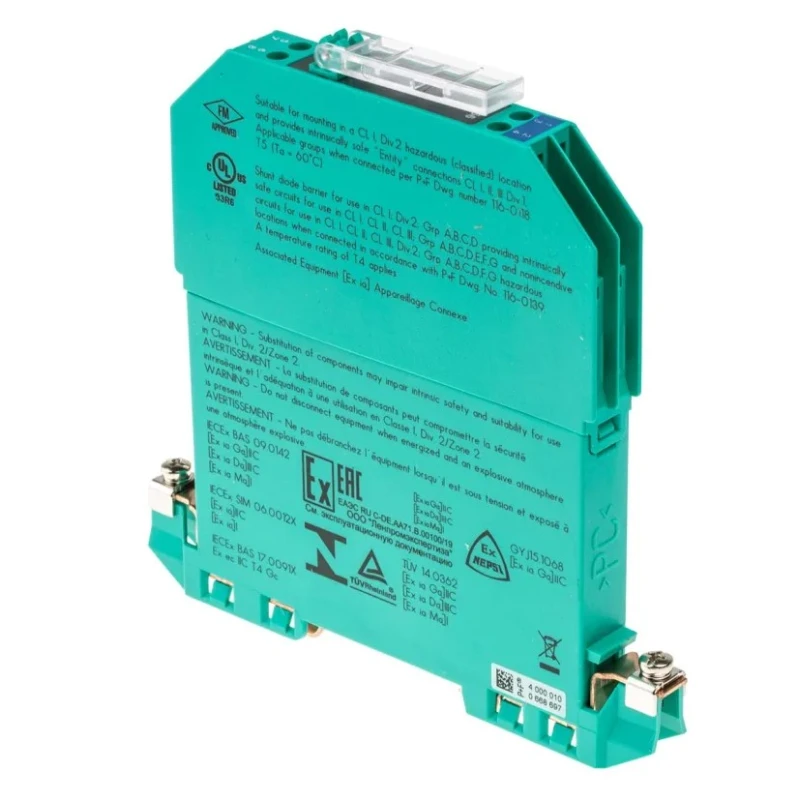

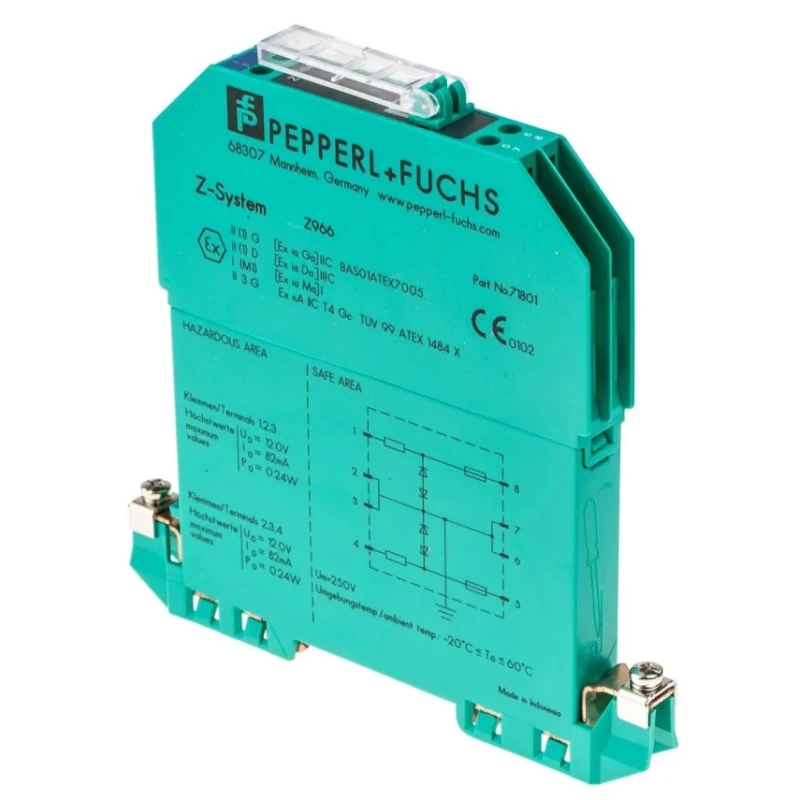

Pepperl + Fuchs 2 Channel Zener Barrier DIN Rail Mount ATEX Certified Z966.H

Pepperl + Fuchs Z966.H 2 Channel Zener Barrier is a DIN Rail mounted safety interface device designed to provide intrinsic safety in hazardous areas with ATEX certification. It limits the energy transferred from a safe to a hazardous area, enabling safe operation of electrical signals in industrial automation and measurement environments.

The device incorporates 2 independent channels and features screw terminals for reliable electrical connection. It is constructed to operate effectively in temperatures from -20°C up to 60°C and withstands a maximum safety voltage of 250V with a safety current of 82mA.

This barrier is typically used in signal conditioning applications such as thermocouples and serves as an isolation barrier between intrinsically safe and non-intrinsically safe circuits. Its IP20 rating protects internal electronics from solid objects, and compliance with IEC, EN, CE, and TUV standards ensures both safety and functionality in conformity with global requirements.

The barrier supports 2 electrical channels for signal conditioning. It is designed for hazardous environments with ATEX hazardous area certification. The product features screw terminal connections for secure wiring. Operating temperature ranges from -20°C to 60°C ensuring reliable performance.

Maximum safety voltage of 250V and maximum safety current of 82mA ensure safe operation. IP20 rated enclosure protects against solid objects greater than 12mm. Compliance with IEC, EN, CE, and TUV standards guarantees high safety and quality.

Ideal for use in industrial automation, electrical equipment, water treatment, and manufacturing sectors requiring reliable intrinsic safety barriers.

This Pepperl + Fuchs Z966.H 2 Channel Zener Barrier is made in Indonesia and supplied new. It is a vital component in critical safety systems to prevent hazardous electrical energy transfer in explosive atmospheres.
