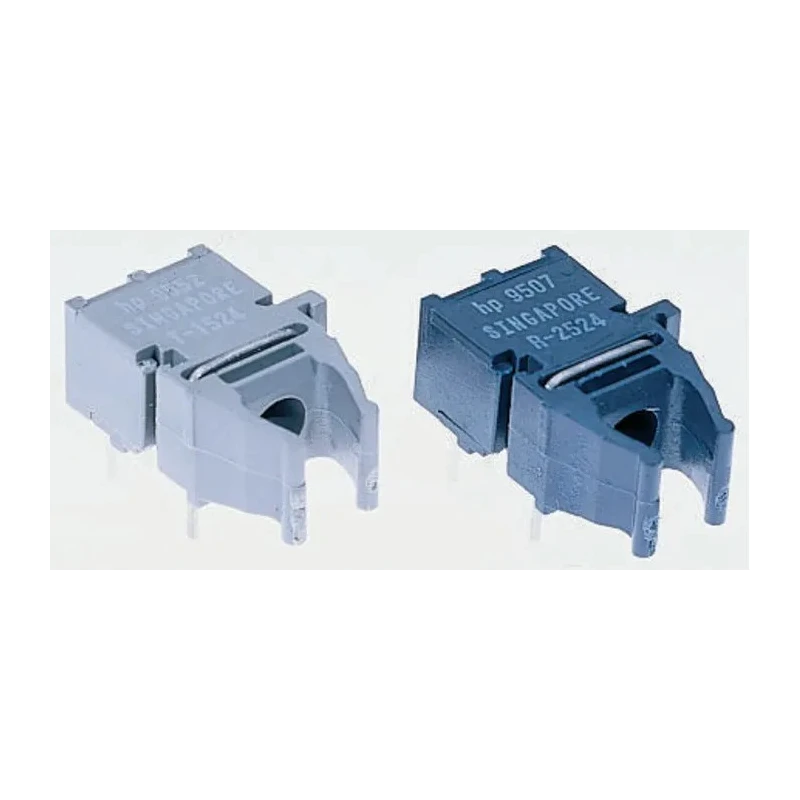

Broadcom Fibre Optic Receiver 40 MBd 660 nm Round TTL Output HFBR-2533Z

The Broadcom HFBR-2533Z is a high-performance fibre optic receiver designed for industrial and commercial electronic applications. It supports a maximum data rate of 40 MBd and operates at a peak sensitivity wavelength of 660 nm. Featuring a round connector shape and TTL output signal type, the device is compatible with standard TTL circuitry, making it ideal for integration in various digital communication systems.

Constructed with a monolithic DC-coupled digital IC receiver paired with an open collector Schottky output transistor, the HFBR-2533Z ensures stable and reliable signal reception. Its through-hole mount type with 6 pins offers robust mechanical retention during PCB assembly. The receiver exhibits typical rise and fall times of 80 ns and 40 ns respectively, guaranteeing quick and accurate signal processing.

The compact form factor of 18.8 mm in length, 12.2 mm in width, and 7.6 mm in height, coupled with low supply current of 6 mA peak, makes this receiver an energy-efficient and space-saving solution for fibre optic links. The device benefits from enhanced digital links supporting dc to 5 MBd data rates and enables extended distance communication up to 120 meters at 40 kBd, suitable for both short and medium range fibre optic networks.

Installation versatility is enhanced by compatibility with simplex, duplex, and latching connectors, allowing easy and secure connections in various configurations. The device also features high noise immunity, protecting signal integrity in environments with electromagnetic interference. Additionally, the use of flame retardant materials adds a layer of safety for industrial applications.

Broadcom's HFBR-2533Z Fibre Optic Receiver is widely used in motor controller triggering, data communications, local area networks, and noise-immune communication in audio and video equipment. Its robustness and performance make it a preferred choice for electronic components requiring reliable fibre optic data reception.

The device features a TTL output signal type suitable for standard digital circuits. It includes a monolithic DC-coupled digital IC receiver with an open collector Schottky output transistor. The receiver supports through-hole mount type with 6 pins for secure installation.

Typical rise and fall times are 80 ns and 40 ns respectively, ensuring fast response. The compact dimensions of 18.8 mm length, 12.2 mm width, and 7.6 mm height make it suitable for various electronic assemblies. Low current link with a peak supply current of 6 mA promotes energy efficiency.

Enhanced digital links support dc-5 MBd data rates ensuring versatile application. Extended distance links can reach up to 120 meters at 40 kBd for long-range communication. Easy connecting options include simplex, duplex, and latching connectors for flexibility.

High noise immunity provides reliable data transmission in electrically noisy environments. Flame retardant material composition enhances safety. Explore EnvMart’s comprehensive range of electronics components for industrial, laboratory, and commercial applications.
