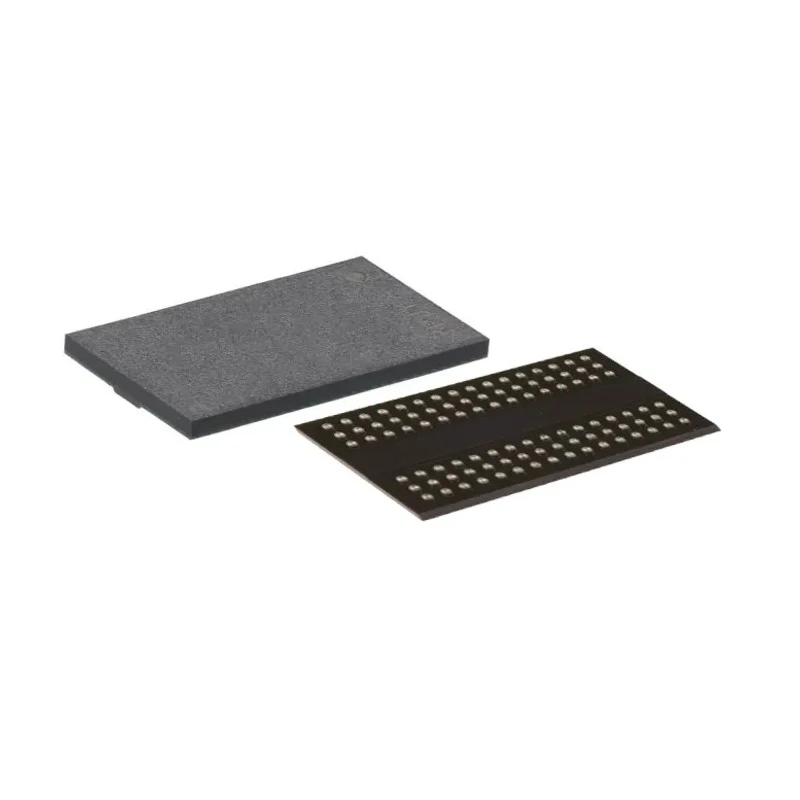

Winbond 1 GB SDRAM 96-Pin 16 bit VFBGA Surface Mount Memory Chip W631GU6NB12I

Winbond W631GU6NB12I is a high-performance 1 GB SDRAM memory chip designed for surface mounting in electronic systems. It features a 96-pin Very Fine Ball Grid Array (VFBGA) package and operates with a 16-bit data bus width. This device is organized as 64M x 16, providing a total capacity of 1 Gigabyte to handle large data storage requirements efficiently.

Its design incorporates 8 banks and supports auto-precharge operation for quick read and write bursts, enabling two data transfers per clock cycle. The maximum random access time is 20 nanoseconds, ensuring rapid memory access suitable for advanced applications. The device operates within a supply voltage range of 1.28V to 1.43V and can function reliably in extreme environmental conditions between -40°C and 95°C.

The chip's compact package measures 13 mm in length, 7.5 mm in width, and has a height of 600 micrometers, allowing for efficient PCB space utilization. It conforms with RoHS standards, ensuring compliance with environmental and safety regulations. However, it is not certified for automotive applications.

Organized as 64M x 16 bits with a total memory size of 1 GB. Supports 8 banks and offers auto-precharge functionality. Operates with a supply voltage between 1.28V and 1.43V. Maximum random access time of 20 nanoseconds.

Package type is VFBGA with 96 pins providing high-density mounting. Operating temperature range from -40°C to 95°C. Device height is 600 micrometers, length is 13 mm, and width is 7.5 mm. Compliance with RoHS ensures environmental safety.

Ideal for applications requiring high-speed data transfer and efficient memory management.

This Winbond SDRAM memory chip finds applications in a wide range of electronic and industrial electronic systems requiring fast, reliable, and compact memory modules. Its surface mount design makes it suitable for modern PCB manufacturing processes in telecommunications, computing, and embedded systems.
