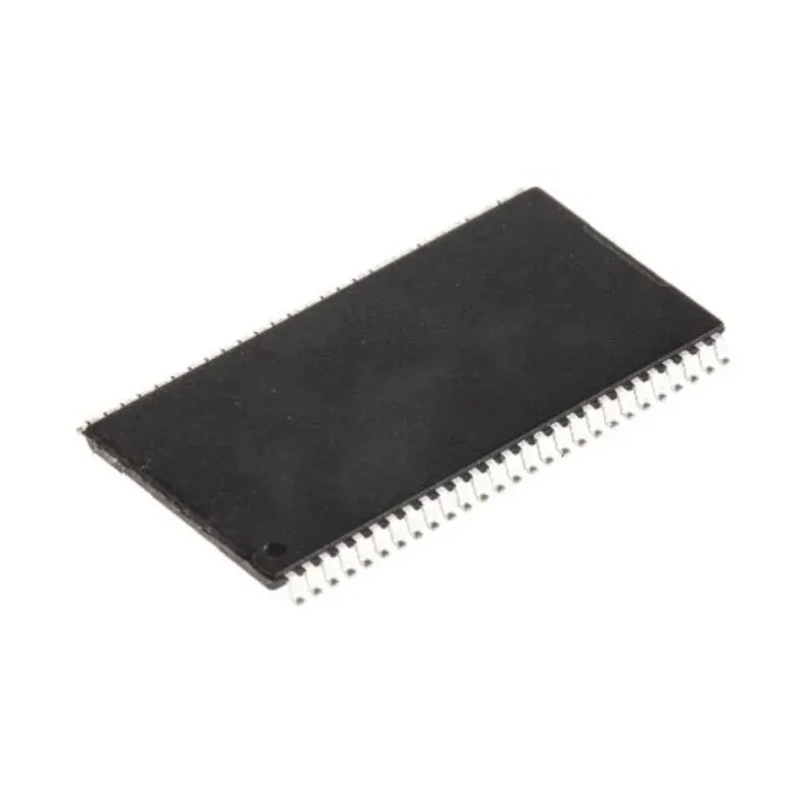

Winbond SDRAM Memory Chip 256MB 16-Bit 54-Pin TSOP Surface Mount 3.0-3.6V 200MHz W9825G6KH-6I

Winbond W9825G6KH-6I is a high-performance SDRAM memory chip featuring 256MB capacity organized as 32 million words by 8 bits and a 16-bit data bus width, packaged in a 54-pin Thin Small Outline Package (TSOP) designed for surface mounting. It operates reliably within a supply voltage range of 3.0V to 3.6V and supports maximum clock frequencies of up to 200MHz, making it suitable for high-speed memory applications in industrial, consumer electronics, and embedded systems.

This SDRAM supports multiple burst lengths including 1, 2, 4, 8, and full page bursts, combined with CAS latency options of 2 and 3, allowing optimal timing performance tailored to system requirements. It includes power management features such as standard and low power self-refresh modes, power down mode, and controlled precharge as well as auto-precharge, enhancing energy efficiency.

The device operates effectively across a broad temperature range from -40°C to 85°C, making it suitable for harsh environmental conditions typical in industrial and automotive applications. The interface is LVTTL compatible, ensuring ease of integration with common digital controllers and processors.

Designed according to RoHS compliance, the W9825G6KH-6I meets global environmental and safety standards. Its compact size with a length of 22.35 mm, width of 10.29 mm, and height of 1.05 mm allows for space-efficient PCB layouts.

This chip is ideal for use in memory expansion, embedded systems, industrial control systems, and other electronic devices requiring stable and fast volatile memory solutions. Its robust design supports up to 8K refresh cycles over specified temperature ranges, ensuring reliable data retention during operation.

The package contains one Winbond W9825G6KH-6I 256MB SDRAM chip with 54-pin TSOP surface mount configuration. This product is new and ready for deployment across diverse electronic assembly applications.

Operates at a maximum clock frequency of 200MHz ensuring fast data access. Supports standard and low power self-refresh modes. CAS latency options of 2 and 3 for versatile timing configurations. Built-in burst length options include 1, 2, 4, 8, and full page modes for efficient data handling.

Designed for operation in temperatures from -40°C to 85°C for industrial and commercial use. Requires a supply voltage between 3.0V and 3.6V for reliable performance. Implements LVTTL interface compatible with common digital systems.

Compliant with RoHS standards for environmental safety. Compact dimensions of 22.35mm length, 10.29mm width, and 1.05mm height. Enhanced power management with power down mode and auto-precharge controls. Explore more memory chip options from Winbond and related semiconductor products at EnvMart.
