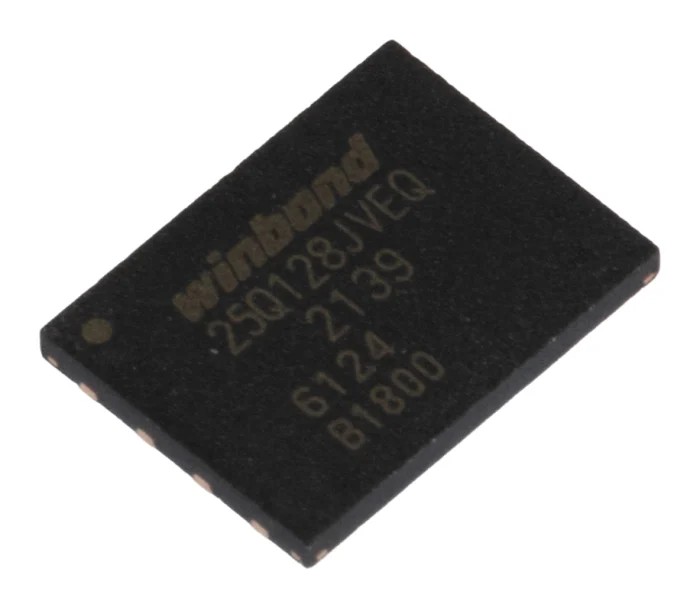

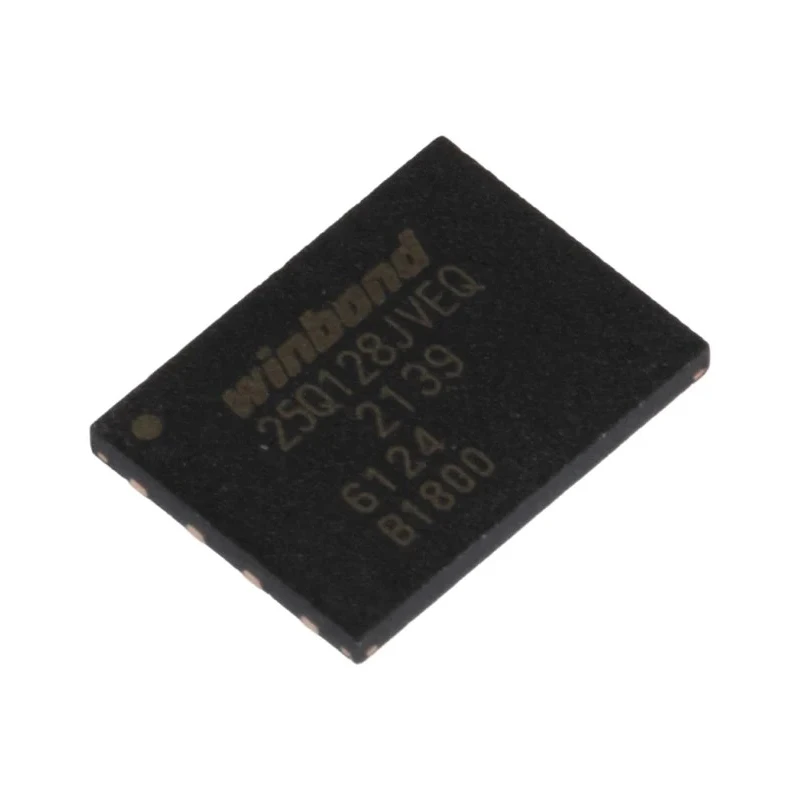

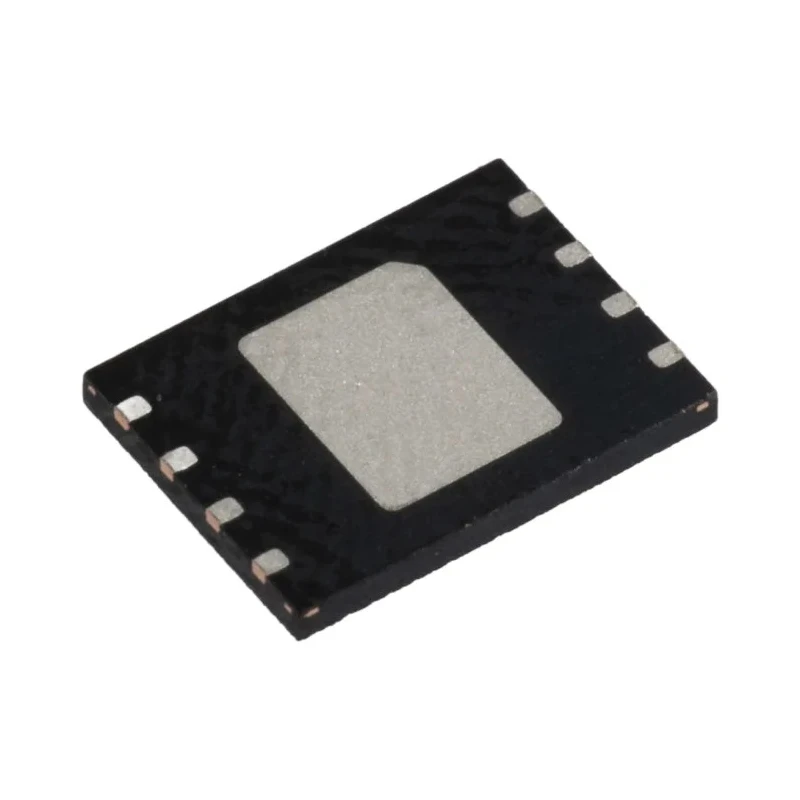

Winbond NOR 128 MB SPI Flash Memory 8-Pin WSON W25Q128JVEIQ/TUBE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Winbond |
| Height | 750μm |
| Length | 6.1mm |
| Cell Type | NOR |
| Model | W25Q128JVEIQ/TUBE |
| Width | 8mm |
| Mount Type | Surface |
| Series | W25Q128JV |
| Maximum Operating Temperature | 85°C |
| Package Type | WSON |
| Minimum Operating Temperature | -40°C |
| Memory size | 128MB |
| Interface Type | SPI |
| Pin Count | 8 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 25mA |
| Maximum Clock Frequency | 133MHz |
| Organisation | 16M x 8 Bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 6ns |
| Number of Words | 16M |
| Timing Type | Synchronous |
Key Features
- 128M-bit memory organized as 16M x 8 Bit for efficient data storage.
- Supports Single, Dual, and Quad SPI operations up to 133MHz clock frequency.
- Supplied in compact 8-pin WSON package with surface mount design.
- Operates with a power supply range between 2.7V and 3.6V for low voltage compatibility.
- Functional across wide temperature range from -40°C to 85°C for industrial use.
- Features uniform 4KB erasable sectors and 32KB/64KB erasable blocks enabling flexible memory management.
- Fast page programming of 256 bytes completed in approximately 0.7 milliseconds.
- Highly reliable NOR cell type with maximum random access time of 6 nanoseconds.
Product Description
Winbond W25Q128JVEIQ/TUBE is a 128MB NOR Flash Memory device designed for use in electronic, industrial, and commercial applications requiring reliable non-volatile storage. This surface-mount integrated circuit is housed in an 8-pin WSON package, ensuring a compact footprint and ease of mounting on modern PCBs.
The memory architecture features 16 million words of 8 bits each, supporting synchronous SPI interface operations in Single, Dual, and Quad modes to achieve a maximum clock frequency of 133MHz. This capability enables high-speed data transmissions and efficient read/write operations essential for embedded systems.
Operating voltage ranges from 2.7 volts minimum to 3.6 volts maximum, making it suitable for a wide variety of low-power designs. The device operates reliably within industrial temperature ranges from -40°C to 85°C, ensuring stable performance in harsh environments. Its cell design uses the NOR technology, providing fast random access with access times as low as 6 nanoseconds.
The W25Q128JVEIQ/TUBE includes uniform 4KB sectors and larger 32KB/64KB blocks which allows flexible erase and program functionalities. Page programming is optimized with a typical time of 0.7 milliseconds for 256-byte pages, facilitating rapid updates to stored data. The low supply current of 25mA further enhances its efficiency in battery-powered and embedded applications.
This memory chip is suitable for a wide array of industrial and commercial uses, including but not limited to embedded control, data logging, and firmware storage in consumer electronics, automotive systems, communications equipment, and instrumentation. The compact and surface-mount WSON package reduces board space requirements while maintaining robust mechanical stability.
128M-bit NOR flash memory with uniform 4KB sectors. Supports Single/Dual/Quad SPI operations with up to 133MHz clock frequency. Operating voltage between 2.7V and 3.6V for low power applications. Industrial temperature range of -40°C to 85°C.
Fast random access time of 6ns with low supply current of 25mA. Compact 8-pin WSON surface mount package dimensions: 6.1mm x 8mm x 750μm.
This Winbond NOR Flash Memory is ideal for applications in electronics manufacturing, embedded systems, and industrial automation, providing reliable, high-speed, high-density data storage solutions. Browse our Electronics & Electricals section at EnvMart for more semiconductor memory products and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Winbond W25Q128JVEIQ/TUBE has a memory capacity of 128MB, organized as 16 million words of 8 bits each.
This model supports a maximum clock frequency of 133MHz for Single, Dual, and Quad SPI operations.
The operating voltage range for the W25Q128JVEIQ/TUBE is between 2.7V and 3.6V.
It operates reliably within an industrial temperature range of -40°C to 85°C.
The maximum random access time for this model is 6 nanoseconds.
This flash memory is supplied in a compact 8-pin WSON package, suitable for surface mounting.
The supply current for the W25Q128JVEIQ/TUBE is 25mA.
Page programming is optimized to complete 256-byte pages in approximately 0.7 milliseconds.
The memory is organized as 16 million words, with each word consisting of 8 bits.
This model supports a synchronous SPI interface, allowing for high-speed data transmission.
The W25Q128JVEIQ/TUBE features uniform 4KB erasable sectors and larger 32KB/64KB erasable blocks for flexible memory management.
This device uses a NOR cell type, which is known for its fast random access capabilities.
