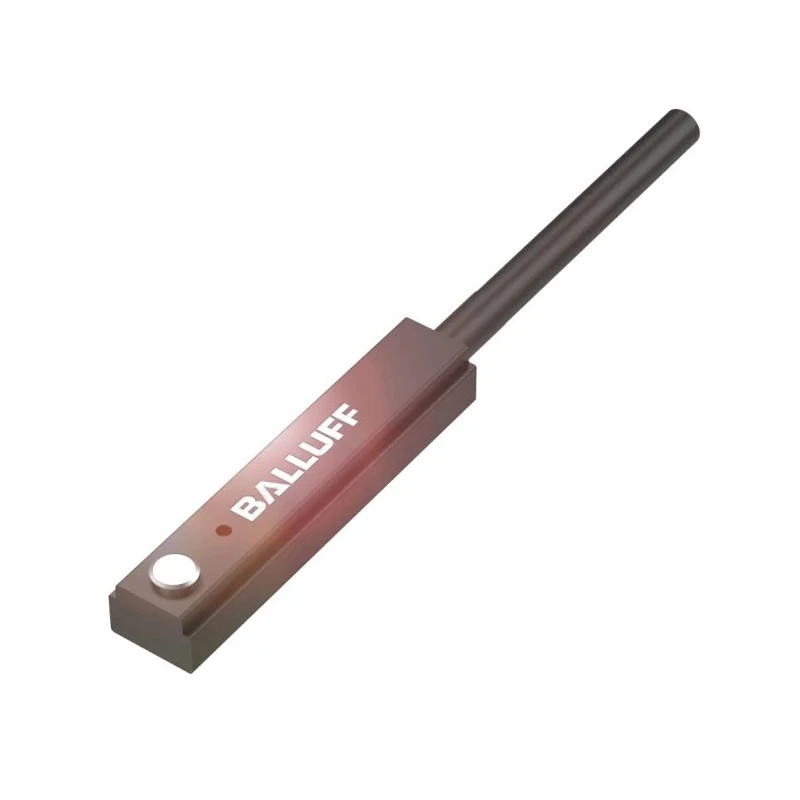

BALLUFF Cable Cylinder Magnetic Sensor 30V IP65 Liquid Crystal Polymer Housing Switching Output
Specifications
| Country of Origin | Korea |
|---|---|
| Voltage | 30V |
| Diameter | 3.5mm |
| Brand | BALLUFF |
| Height | 29mm |
| Model | IP65 |
| Depth | 4.4mm |
| IP Rating | IP65 |
| Width | 6.2mm |
| Housing Material | Liquid Crystal Polymer |
| Series | BMF 307K-R-AS-L-3-03 |
| Maximum Operating Temperature | 70°C |
| Measurement Principle | Reed |
| Minimum Operating Temperature | -20°C |
| Output Function | Switching output |
| Standards/Approvals | CE, EAC, WEEE |
| Electrical Connection Type | Cable |
Key Features
- Equipped with a switching output for efficient signal transmission.
- LED indicator included for operational status monitoring.
- Constructed with durable Liquid Crystal Polymer housing material.
- Compact dimensions of 29 x 6.2 x 4.4 mm fitting space-critical applications.
- Operates reliably across -20°C to 70°C temperature range.
- Features a normally open (NO) polarized switching action.
- Suitable for use through cylinder walls without contact due to reed measurement principle.
- Includes a 3-meter PVC cable with cable electrical connection type.
Product Description
BALLUFF BMF008P Cable Cylinder Magnetic Sensor is a precision magnetic sensor designed for pneumatic cylinders, offering reliable piston position detection with a switching output signal and LED indicator functionality. Rated for 30V operation with an IP65 ingress protection, this sensor provides robust performance in demanding industrial environments.
The housing is made of Liquid Crystal Polymer (LCP), providing excellent durability combined with compact form factor dimensions of 29 mm height, 6.2 mm width, and 4.4 mm depth to accommodate space-critical installations. It employs a reed measurement principle that allows non-contact sensing through cylinder walls, making it ideal for pneumatic applications involving cylinders and grippers with magnets of various strengths.
Designed to operate within a temperature range of -20°C to 70°C, the sensor uses a polarized normally open switching action to ensure precise switching functionality. Electrical connection is facilitated via a 3-meter long PVC cable, enhancing installation flexibility.
This magnetic sensor complies with important standards such as CE, EAC, and WEEE, ensuring adherence to safety, environmental, and quality requirements. The product is manufactured in Korea, reflecting high manufacturing quality standards.
Typical industrial applications include pneumatic systems, automation controls, fluid power machinery, and other environments requiring reliable and compact piston position sensing. Its strong hold mounting in T-slots and flush mount suitability enable flexible and space-efficient integration into various pneumatic setups.
Equipped with a switching output for efficient signal transmission. LED indicator provides visual status monitoring. Housing material of durable Liquid Crystal Polymer (LCP). Compact dimensions suitable for confined spaces.
Wide operating temperature range from -20°C to 70°C. Non-contact sensing through cylinder walls using reed principle. 3-meter PVC cable for flexible connectivity. Compliance with CE, EAC, and WEEE standards. Manufactured in Republic of Korea ensuring high quality.
Ideal for pneumatic cylinder piston position detection. Explore more in the Electronics & Electricals category under Magnetic Sensors for advanced industrial sensing solutions available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BALLUFF Cable Cylinder Magnetic Sensor operates at a voltage of 30V.
It operates reliably within a temperature range of -20°C to 70°C.
The sensor has compact dimensions of 29 mm in height, 6.2 mm in width, and 4.4 mm in depth.
The housing is constructed from Liquid Crystal Polymer, providing durability.
It features a switching output function for efficient signal transmission.
Yes, it employs a reed measurement principle that allows for non-contact sensing through cylinder walls.
The sensor has an IP65 ingress protection rating, making it suitable for demanding environments.
It includes a 3-meter long PVC cable for electrical connection.
It complies with CE, EAC, and WEEE standards, ensuring adherence to safety and environmental requirements.
It is ideal for pneumatic systems, automation controls, and fluid power machinery requiring reliable piston position detection.
This model features a normally open (NO) polarized switching action.
The sensor is manufactured in Korea, reflecting high manufacturing quality standards.
