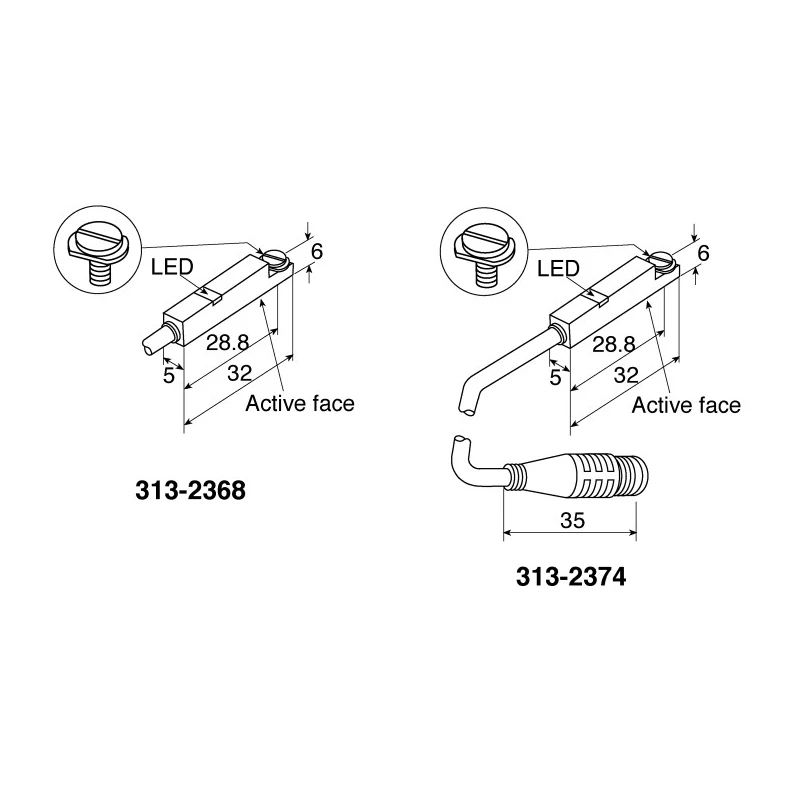

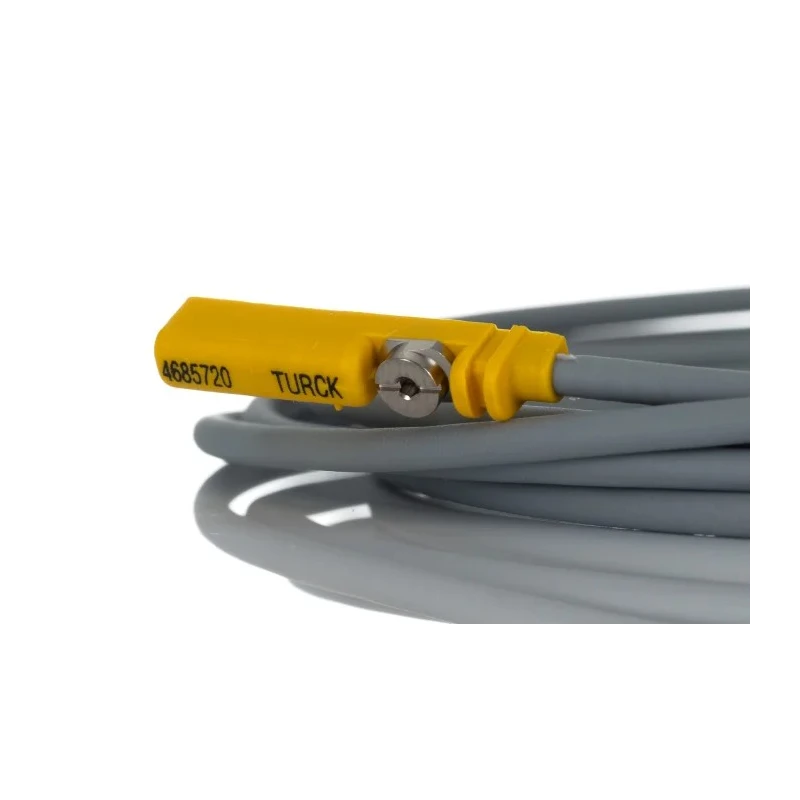

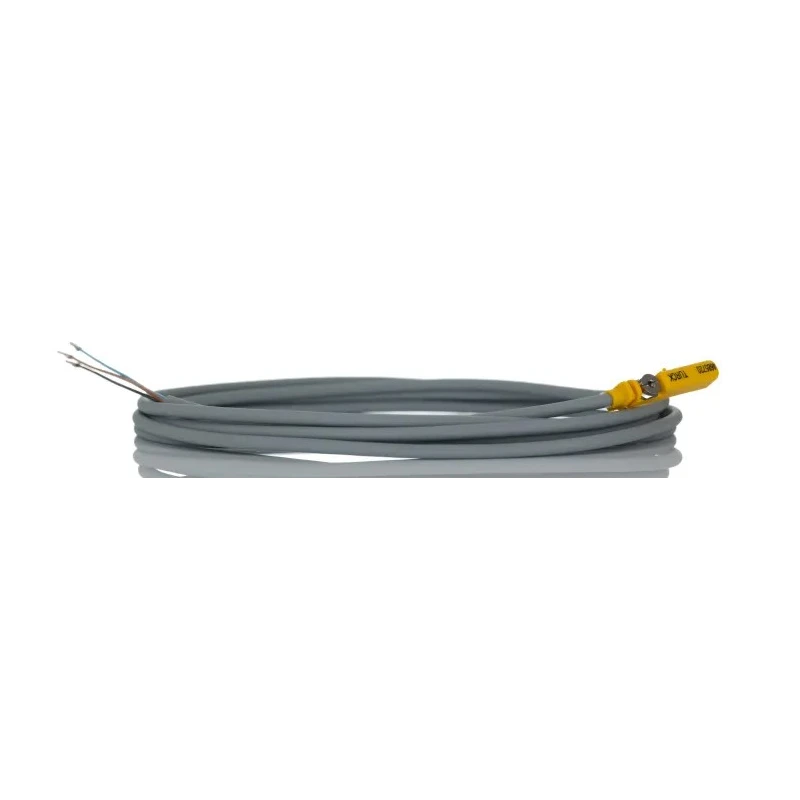

Turck Magnetic Field Sensor, PNP Output, 10-30V DC, IP67, Polyamide and Stainless Steel Housing, Pigtail M12X1 BIM-UNT-AP6X
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 10, 30V dc |
| Diameter | 100mm |
| Brand | Turck |
| Model | BIM-UNT-AP6X |
| IP Rating | IP67 |
| Housing Material | Polyamide, Stainless Steel |
| Series | BIM-UNT |
| Maximum Operating Temperature | 70°C |
| Measurement Principle | Magneto-Resistive |
| Minimum Operating Temperature | -25°C |
| For Use With | Standard pneumatic cylinders |
| Output Function | NO, 3 Wire, PNP |
| Standards/Approvals | EN60947-5-2, EN61000-4-6 |
| Electrical Connection Type | Pigtail M12X1, PUR cable, Quick Disconnect, Snap Lock / Fixed Thread, Threaded Coupling Nut, Pigtail M8X1 |
| Switching Action | NO Contact |
| Turck Banner Pneumatic Cylinder SensorBrand | Turck Banner |
Key Features
- Utilizes magneto-resistive measurement principle for accurate detection.
- Equipped with a 2m PUR cable and quick disconnect features for flexible installation.
- Polyamide and stainless steel housing ensure durability in industrial environments.
- Operates within a voltage range of 10 to 30 V DC with low current consumption.
- Features LED indicator for real-time sensor status monitoring.
- Designed to withstand temperatures from -25°C up to 70°C.
- Offers snap lock and fixed threaded coupling nut compatibility for secure mounting.
- Resistant to dust and water ingress with an IP67 rating.
Product Description
Turck BIM-UNT-AP6X is a highly reliable magnetic field sensor designed for pneumatic cylinder sensing applications. It operates using a magneto-resistive measurement principle to detect cylinder positions with a precision accuracy of ±0.1mm. This sensor is equipped with a PNP output in a normally open (NO), 3-wire configuration, suitable for integration into various industrial automation systems.
The sensor features a robust housing made of polyamide and stainless steel materials, ensuring durability and resistance to demanding industrial conditions. Its electrical connection includes a pigtail M12X1 PUR cable with a quick disconnect and snap lock mechanism, facilitating easy and secure installation. Additionally, it includes a threaded coupling nut compatible with pigtail M8X1 connections.
Designed to function within a voltage range from 10 to 30 V DC, the BIM-UNT-AP6X sensor consumes minimal power and incorporates LED indicators for instantaneous status verification. Its IP67 ingress protection rating guarantees dust tightness and resistance against temporary water immersion, enabling reliable operation in harsh environments.
The sensor is suitable for use with standard pneumatic cylinders and operates effectively within a wide temperature range of -25°C to 70°C. It complies with EN60947-5-2 and EN61000-4-6 standards, ensuring quality and electromagnetic compatibility.
Ideal industrial applications include material handling, food production, and printing industry automation where precise pneumatic cylinder monitoring is critical. This magnetic sensor eliminates the need for EMI shielding due to its resistance to electrical interference.
Utilizes magneto-resistive sensing for exact position detection. Housing constructed from polyamide and stainless steel for enhanced durability. Includes LED indicator for easy status monitoring. IP67 rated for dust and water resistance.
Quick disconnect and threaded coupling nut for secure mounting. Wide operating temperature range from -25°C to 70°C. Compatible with standard pneumatic cylinders. Complies with EN60947-5-2, EN61000-4-6 standards for reliability.
Package contains one Turck BIM-UNT-AP6X Magnetic Field Sensor with 2m PUR cable and required fittings. For comprehensive solutions, explore our full range of pneumatic and sensor products at EnvMart.
Explore more products in our Magnetic Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range of 10 to 30 V DC.
It utilizes a magneto-resistive measurement principle for accurate detection of cylinder positions.
The sensor has an IP67 rating, ensuring it is dust-tight and resistant to temporary water immersion.
It operates effectively within a temperature range of -25°C to 70°C.
This sensor features a normally open (NO), 3-wire PNP output configuration.
The housing is constructed from polyamide and stainless steel, ensuring durability in industrial environments.
It includes a pigtail M12X1 PUR cable with quick disconnect and snap lock features for secure installation.
It complies with EN60947-5-2 and EN61000-4-6 standards for reliability and electromagnetic compatibility.
The sensor provides a precision accuracy of ±0.1mm for detecting cylinder positions.
Yes, it is designed for use with standard pneumatic cylinders, making it ideal for various industrial applications.
It includes a threaded coupling nut and a snap lock mechanism for secure mounting during installation.
The package contains a 2m PUR cable, facilitating flexible installation options.
