MikroElektronika Development Board for DS2401 Silicon Serial Number IC, 64bit Memory, 1 Wire Interface, MikroBus MIKROE-1819

MikroElektronika MIKROE-1819 Development Board for DS2401 is designed as a memory development kit compatible with the mikroBUS standard to provide a unique electronic identifier for embedded applications. Featuring the Maxim DS2401 silicon serial number IC, this board contains a unique factory-lasered 64-bit ROM with a 48-bit serial number, an 8-bit CRC, and an 8-bit family code. It operates using a 1 Wire bus interface on the mikroBUS socket.

The board’s interface pins are selectable with a jumper, allowing configuration flexibility for integration with various mikroBUS-compatible devices. It supports power supplies of 3.3 V (default) and 5 V through the mikroBUS socket, enabling use in a wide range of embedded development environments.

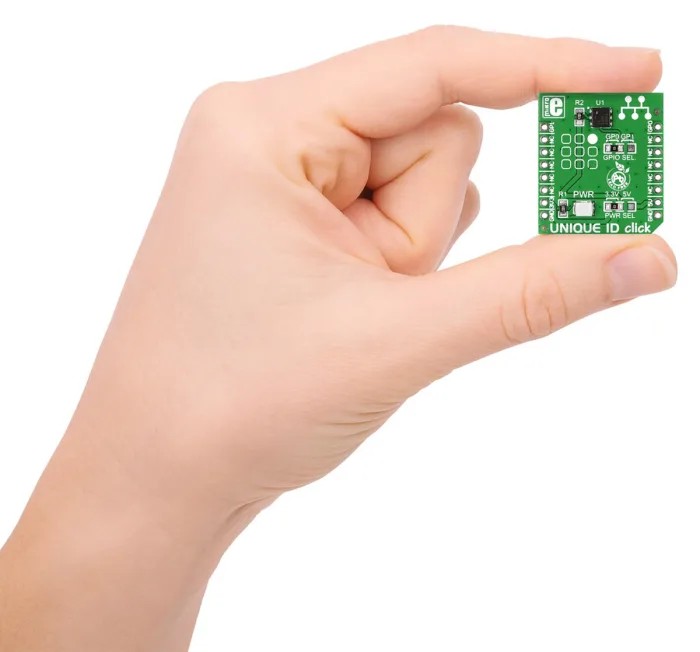

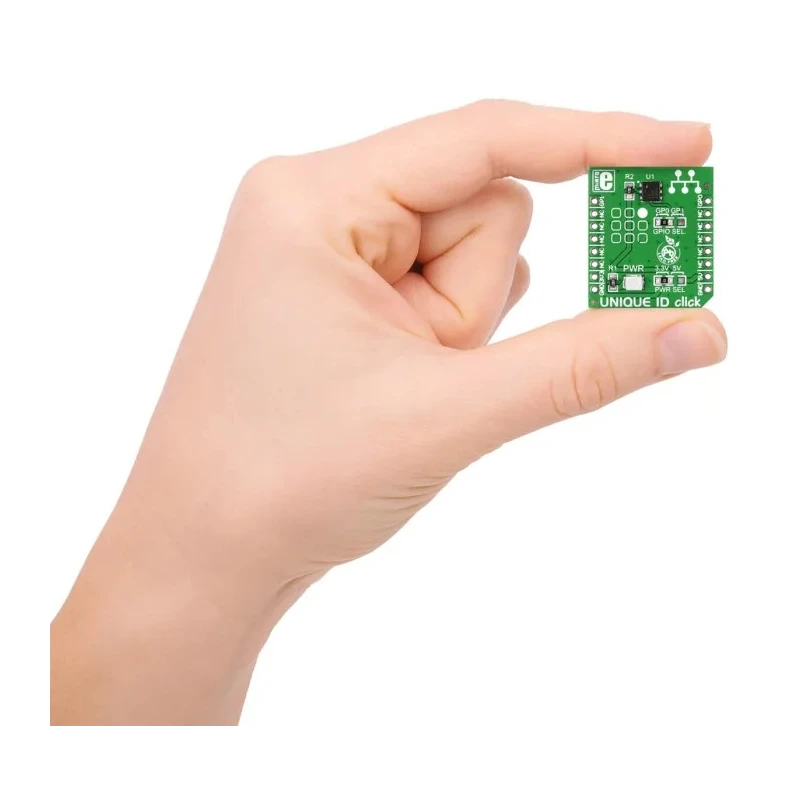

With compact dimensions measuring 28.6 mm by 25.4 mm, the board can be easily integrated into custom development projects focusing on device identification and authentication.

This development board is RoHS compliant, ensuring adherence to electronics environmental standards. It is highly suitable for use in industrial and laboratory embedded system design, electronic registration, and IoT applications requiring unique device identifiers.

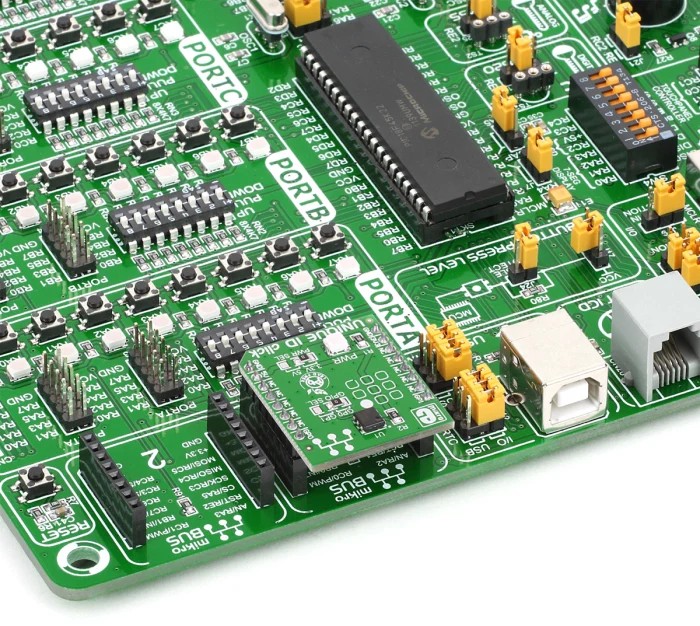

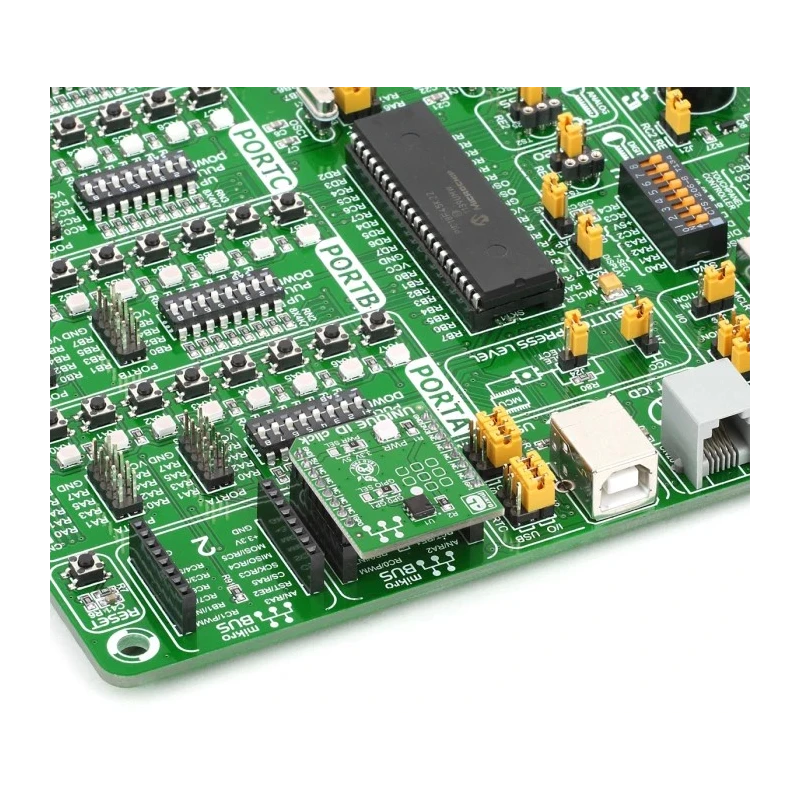

MikroElektronika’s mikroBUS line offers modular click boards for expanding functionality in processors like Raspberry Pi, Arduino, and BeagleBone, making the MIKROE-1819 an essential add-on for engineers working with unique device addressing and serial number applications.

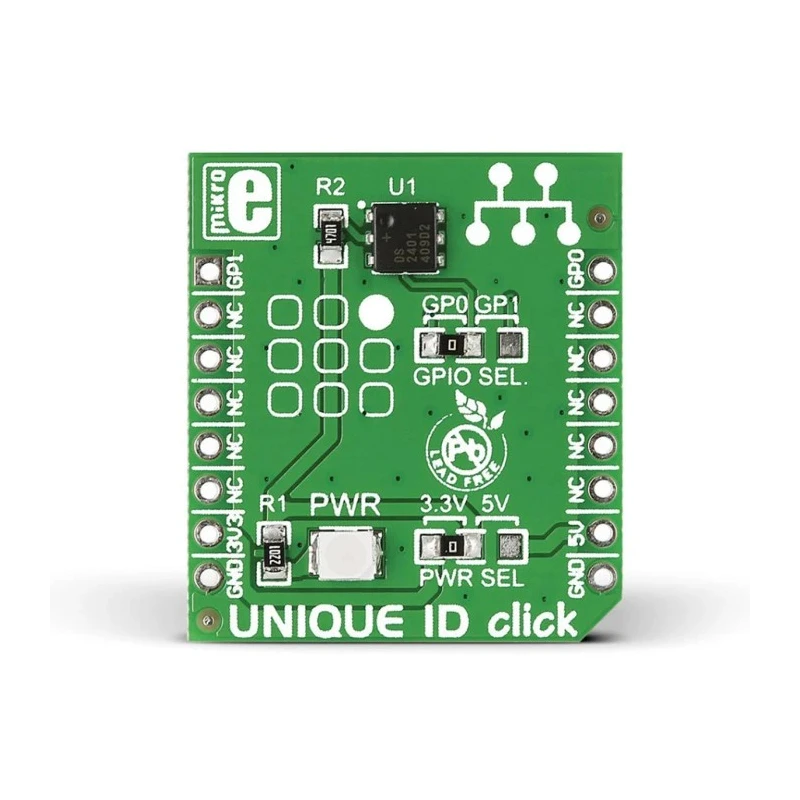

The development board integrates the Maxim DS2401 silicon serial number IC offering a factory-lasered unique 48-bit serial number. The board supports communication via a 1 Wire interface designed to work with the mikroBUS socket.

Power supply options include 3.3 V (default) or 5 V through the mikroBUS socket to accommodate different system requirements. Compact design with dimensions 28.6 x 25.4 mm enables easy integration in various embedded development projects.

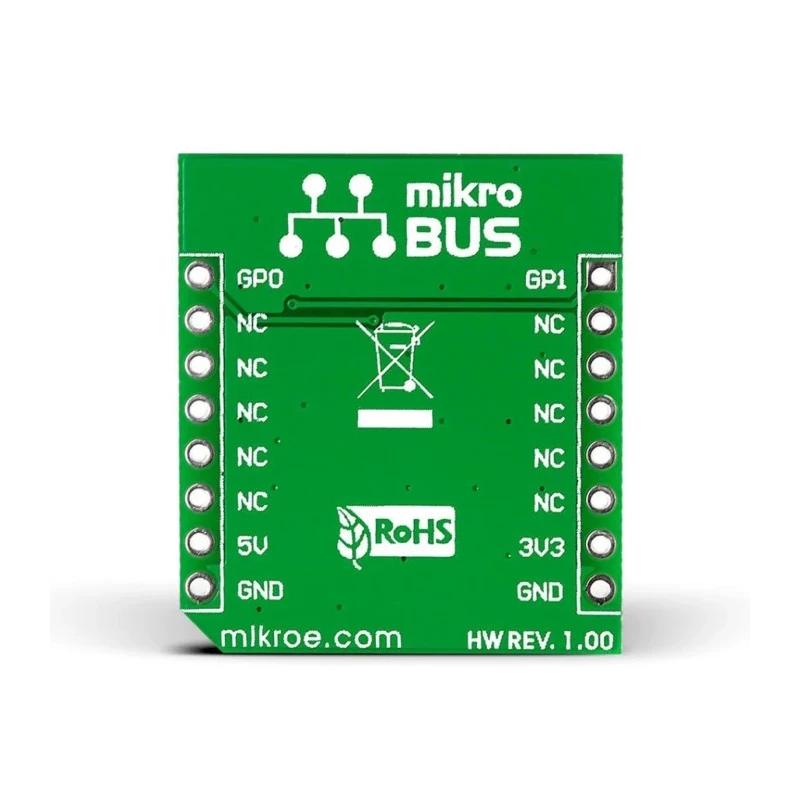

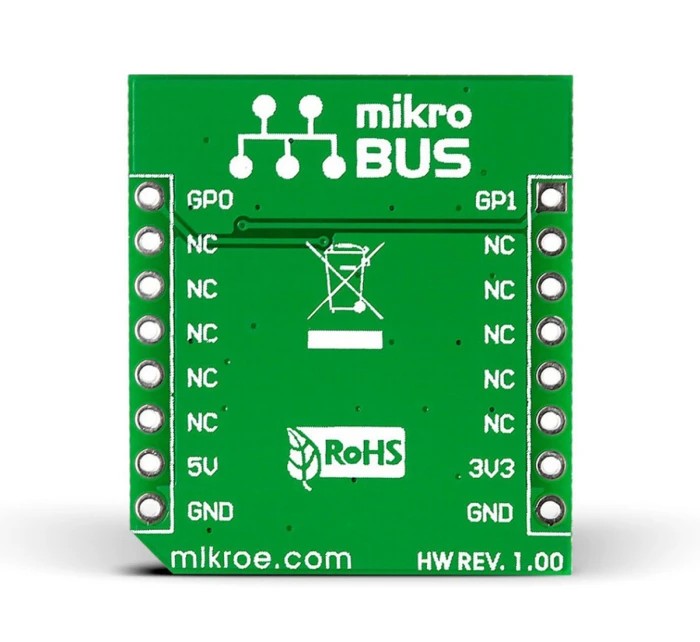

The board includes jumper-configurable interface pins to select communication lines on the mikroBUS socket for optimum compatibility. This product complies with RoHS standards, ensuring safe and environmentally friendly use.

Suitable for sensor identification, electronic registration, and unique device addressing in embedded systems. Explore more microcontroller and memory Development Boards on EnvMart to enhance your embedded system projects with reliable components from trusted brands.
