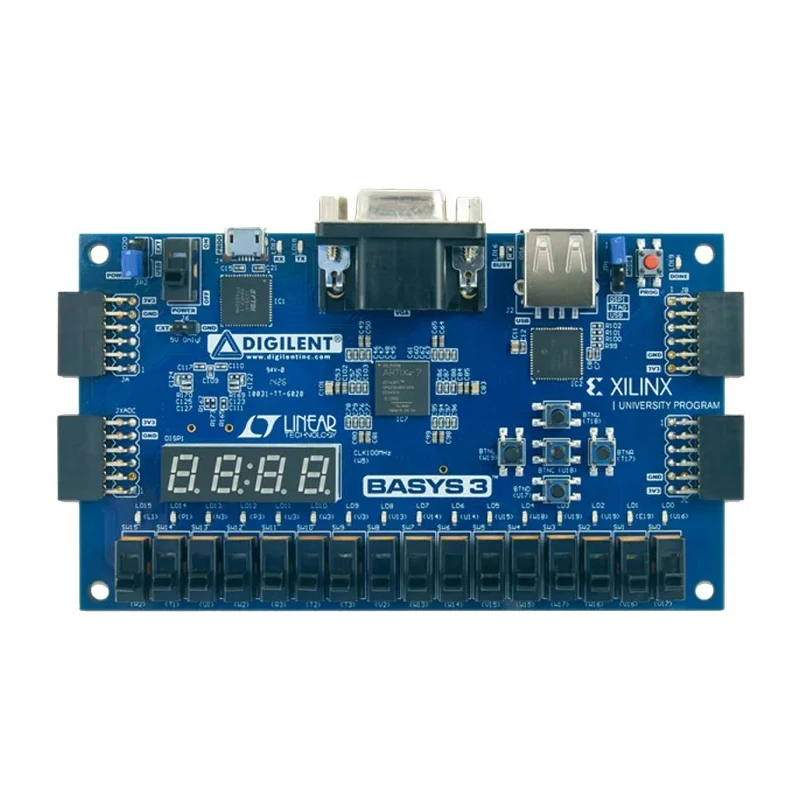

Digilent Basys Artix-7 FPGA Development Board with ADC1410 and DAC121S101 410-183

Digilent 410-183 Basys Artix-7 FPGA Development Board is a comprehensive and ready-to-use digital development platform featuring the latest Xilinx Artix-7 Field Programmable Gate Array (FPGA). With 33280 logic cells and 5200 slices, the board supports complex digital designs including embedded processors and sequential circuits. The inclusion of ADC1410 and DAC121S101 devices expands its analog interfacing capabilities, suitable for mixed-signal development.

This development board offers 1800Kbit fast block RAM, five clock management tiles each with phase-locked loop (PLL), and 90 DSP slices enabling high-speed digital signal processing. Internal clock speeds exceed 450MHz, facilitating high-performance computations.

The onboard 32Mbit Quad-SPI serial flash memory supports multiple programming methods including JTAG, Quad-SPI, and USB. The integrated USB-UART bridge and USB-A HID host socket provide seamless communication with external devices such as mice, keyboards, and memory sticks.

User interaction is enhanced through sixteen user LEDs, a four-digit 7-segment LED display, five pushbuttons, and sixteen slide switches. The board also features a 12-bit VGA display output via a DE15 connector for graphical interface applications. Its dual power supply options, USB or external 5V header, allow versatile use in different environments.

Designed for FPGA development, the Digilent Basys Artix-7 board is ideal for educational, laboratory, industrial, and prototyping applications in electronics, embedded systems, and hardware design. Compliance with RoHS and international electrostatic discharge standards ensures reliability and safety in professional use cases.

Equipped with 33280 logic cells in 5200 slices and 1800Kbit fast block RAM. Features 5 clock management tiles with PLL and 90 DSP slices for advanced signal processing. Includes onboard 32Mbit Quad-SPI serial flash memory supporting JTAG, Quad-SPI, and USB programming.

Integrated USB-UART bridge and USB-A HID host socket enable communication with external peripherals. Offers 16 user LEDs, 4-digit 7-segment display, 5 pushbuttons, and 16 slide switches for flexible user I/O. Delivers 12-bit VGA display output via DE15 connector for display applications.

Powered via USB socket or external 5V header to suit diverse power setups. Complies with RoHS, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007 standards for safety and environmental regulations. Explore this FPGA Development Board within the EnvMart platform to access compatible accessories, modules, and professional electronics components for your embedded projects.
