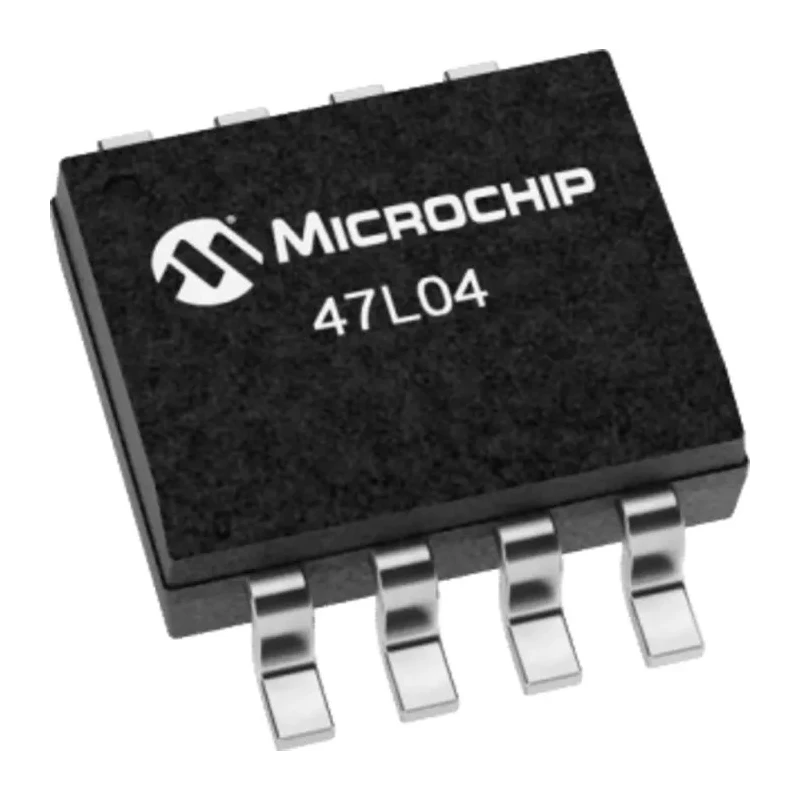

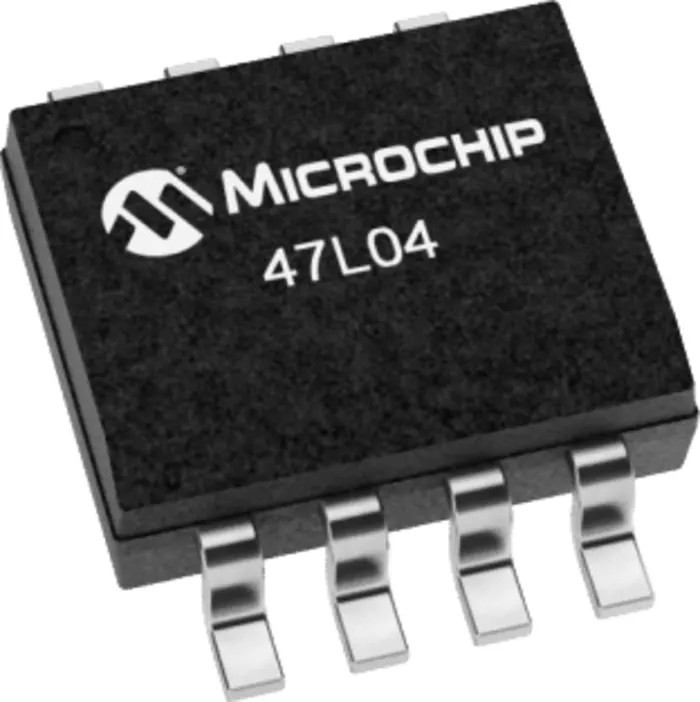

Microchip EERAM 4kB SRAM with EEPROM Backup Surface Mount SOIC Package 47L04-I/SN

Microchip 47L04-I/SN EERAM is a 4kB SRAM with integrated EEPROM backup designed for reliable, high-endurance non-volatile data retention without the need for an external battery. The device is organized as 512 x 8 bits and uses a synchronous timing type with a maximum clock frequency of 1000 kHz and a maximum random access time of 400 ns. It interfaces via the I2C serial bus, making it compatible with many industrial and commercial electronic systems.

This EERAM automatically stores SRAM data to the EEPROM upon power loss when an external capacitor is connected, ensuring data preservation. Manual store and recall operations can also be performed via a hardware store pin or software control commands, enhancing flexibility in data management. The maximum store time is 40 milliseconds.

Packaged in a compact SOIC surface mount form factor with 8 pins, the unit measures 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height, enabling easy integration into space-constrained PCB designs. It supports a supply voltage range of 2.7 V to 3.6 V and operates efficiently with a supply current of 300.4 mA.

With an operating temperature range from -40°C to 85°C, this module is suitable for industrial, electronic components, power and connectors, semiconductor, and memory chip applications requiring enduring and battery-less non-volatile SRAM solutions.

This EERAM module features automatic store to EEPROM on power-down using an external capacitor. Organized as 512 x 8 bits with 4kB memory size and synchronous timing type. Supports maximum clock frequency of 1000 kHz and maximum random access time of 400 ns.

It comes in a surface mount SOIC package with 8 pins and dimensions of 4.9 mm length, 3.9 mm width, and 1.25 mm height. Operating temperature range spans from -40°C to 85°C, suitable for various industrial applications. Supply voltage ranges from 2.7 V to 3.6 V with a supply current of 300.4 mA.
