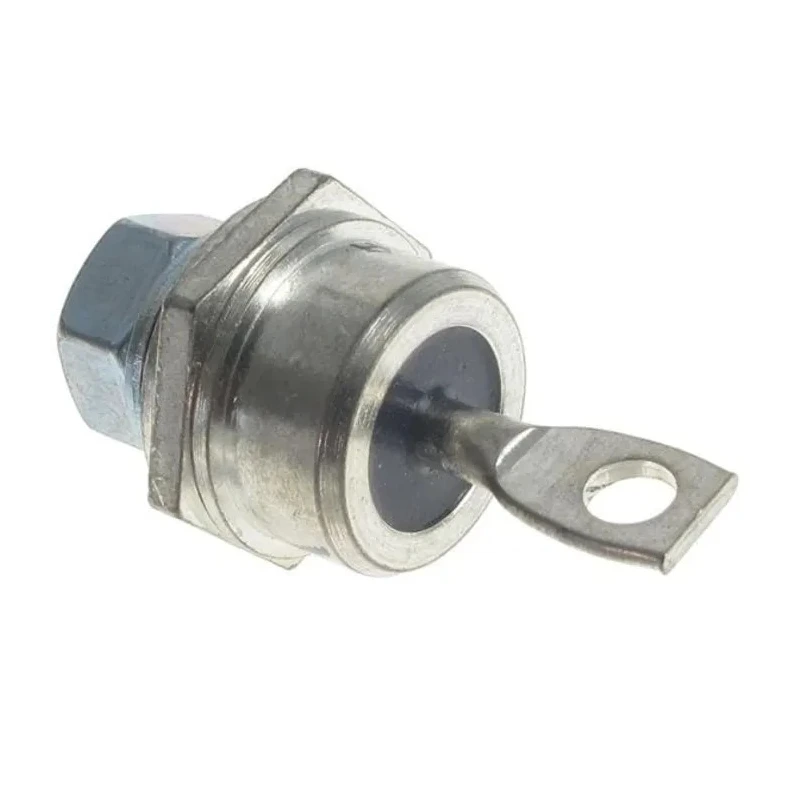

Vishay Switching Diode 1200V 85A 2-Pin DO-203AB VS-85HFR120M
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.35mm |
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.02mm |
| Model | VS-85HFR120M |
| Width | 17.35mm |
| Mount Type | Screw |
| Series | VS-85HF(R) |
| Maximum Operating Temperature | 180°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 85A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 9mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.8kA |
| Maximum Forward Voltage Vf | 1.2V |
| Vishay 800V 85A, Rectifier Diode, 2-Pin DO-5 VS-85HFR80MBrand | Vishay |
Key Features
- Rated for 1200V Peak Reverse Repetitive Voltage.
- Offers a maximum continuous forward current of 85A.
- Stud anode configuration provides robust mounting.
- DO-203AB package type facilitates easy integration into high-power circuits.
- Suitable for industrial switching and rectification applications.
- Operates from -65°C to +180°C, ensuring wide temperature tolerance.
- Peak non-repetitive forward surge current up to 1.8kA.
- Maximum forward voltage of 1.2V for reliable switching performance.
Product Description
Vishay VS-85HFR120M is a high-performance switching diode designed for demanding industrial and power applications. Featuring a peak reverse repetitive voltage rating of 1200V and a maximum continuous forward current of 85A, it provides robust and efficient switching performance in high-power electronic assemblies.
The diode is configured with a stud anode for secure screw mounting, and is housed in a DO-203AB package, making it compatible with a wide variety of industrial circuit layouts and heatsink solutions. Its stud construction is well-suited for applications requiring reliable, durable connectivity.
Rated 1200V Peak Reverse Repetitive Voltage (Vrrm). Maximum Continuous Forward Current (If): 85A. DO-203AB package; stud anode configuration. Peak Non-Repetitive Forward Surge Current (Ifsm): 1.8kA. 2-pin configuration, simplifying installation and replacement.
Capable of operating over a wide temperature range, from -65°C to 180°C. Maximum Forward Voltage (Vf) is 1.2V, supporting efficient rectification. Peak Reverse Current (Ir): 9mA.
This Vishay diode is part of the VS-85HF(R) Series, renowned for high surge current capability and industrial-level qualification standards. Its leaded/stud package offers flexibility for various assembly formats, and it is designed to meet rigorous performance requirements for use in industrial rectifiers, power switching units, and high-voltage control modules.
Industrially relevant in power conversion, rectification, and switching for large-scale manufacturing operations, laboratory equipment, and electrical infrastructure. Its broad operating temperature range and robust package make it ideal for environments with fluctuating thermal profiles.
Browse more Vishay Schottky Diodes & Rectifiers on EnvMart to discover advanced solutions for industrial and electronics projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-85HFR120M is 85A.
This model has a peak reverse repetitive voltage rating of 1200V.
The diode is housed in a DO-203AB package type, which facilitates easy integration into circuits.
It operates over a wide temperature range from -65°C to 180°C.
The peak non-repetitive forward surge current for this unit is up to 1.8kA.
This model features a stud anode configuration, allowing for secure screw mounting.
The dimensions are as follows: diameter 17.35mm, height 22.9mm, and length 20.02mm.
The maximum forward voltage is 1.2V, which supports efficient switching performance.
The peak reverse current for this diode is rated at 9mA.
It is suitable for industrial switching and rectification applications, particularly in high-power electronic assemblies.
This diode has a 2-pin configuration, which simplifies installation and replacement.
The Vishay VS-85HFR120M is manufactured in India.
