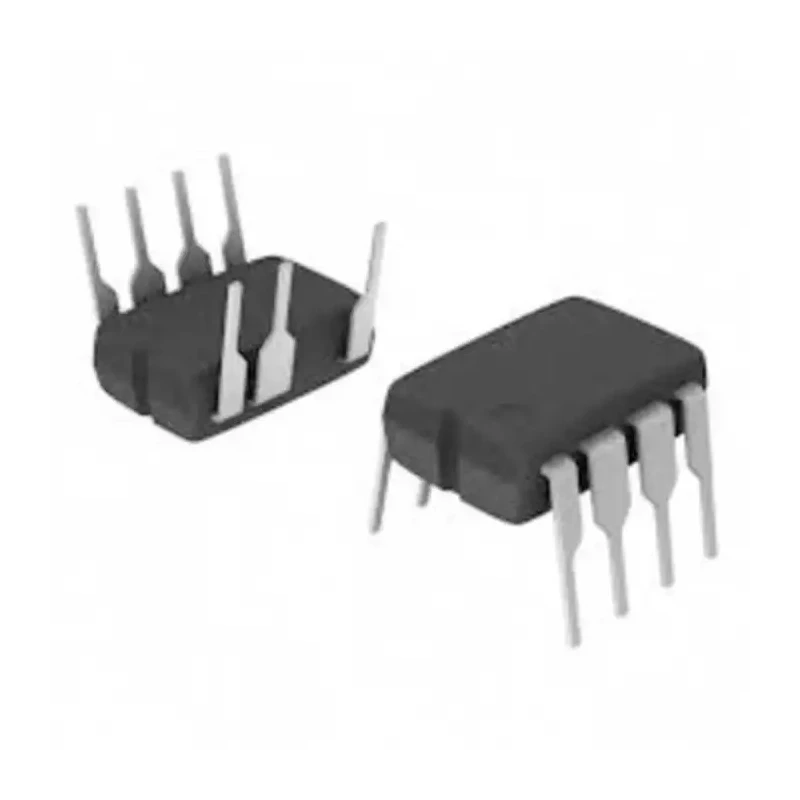

Power Integrations AC/DC Converter 1 A 12V 7-Pin DIP-8C TNY275PG

Power Integrations TNY275PG AC/DC Converter is a compact offline switcher designed for reliable power management with integrated power MOSFET and thermal shutdown features. It operates at a maximum input voltage of 265V and delivers stable 12V output with 1A maximum output current, making it suitable for a wide range of auxiliary power applications.

The flyback topology device provides output power up to 15W at a switching frequency of 132kHz, with a maximum duty cycle of 65%, which enhances energy efficiency and reduces component count. The converter is built with 7-pin DIP-8C through-hole package for easy PCB mounting and integration.

It functions efficiently within operating temperatures from -40°C to 150°C, ensuring durability in varying environmental conditions. The compact dimensions of 10.8mm height, 6.6mm length, and 3.68mm width support minimal space utilization on PCB layouts.

This converter is commonly used in PC standby power supplies, DVD/PVR auxiliary supplies, set-top box equipment, and other low power electronic devices requiring a dependable power source with simplified system design.

Its integrated power MOSFET and oscillator circuits enable straightforward system design with reduced external components and increased reliability. The device offers an energy-efficient solution with thermal shutdown protection for safety and enhanced device longevity.

This converter supports maximum input voltage of 265V and minimum input voltage of 85V. It delivers an output power of 15W with a switching frequency of 132kHz. The maximum duty cycle is 65%, suitable for flyback topology applications.

Operates within a temperature range from -40°C to 150°C ensuring reliable performance. It features a 7-pin through-hole mount package with dimensions 10.8mm height, 6.6mm length, and 3.68mm width. This product includes integrated power MOSFET and thermal shutdown circuitry for design simplification.

Ideal for PC standby power supplies, DVD/PVR aux power, and other low power set-top devices. Energy efficient and designed for minimal PCB footprint. Explore more Power Integrations products and AC/DC Converters for your electronics and power management application needs on EnvMart.
